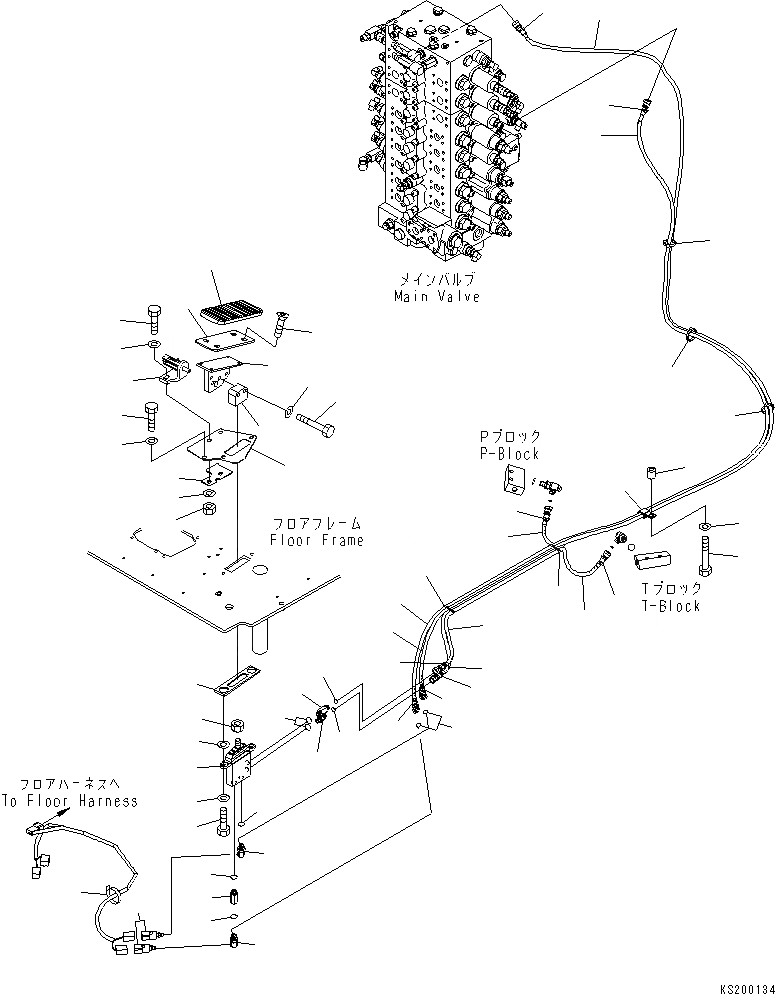

Запчасти Komatsu PC290LC-8K ОСНОВН. КОНСТРУКЦИЯ (ATTATCHMENT УПРАВЛ-Е) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) (/) K OPERATORґS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

1

702-16-01230

Pilot Valve

2

22U-54-25660

Seal

3

20Y-43-41760

Seat

4

01010-81025

Bolt

5

01643-31032

Washer

6

01643-31032

Washer

7

20Y-62-25360

Bracket

8

01010-D1035

Bolt

9

01643-71032

Washer

10

20Y-53-14220

Pedal

|10

207-43-81250

Pedal

11

01010-D1045

Bolt

12

01643-71032

Washer

13

22U-54-25180

Plate

14

01010-81020

Bolt

15

01643-31032

Washer

16

207-43-81220

Plate

17

01240-00816

Screw

18

207-43-81240

Cap

19

20T-910-8660

Nipple

20

07000-12011

O-Ring

21

20Y-62-52160

Elbow

22

02896-11008

O-Ring

23

07000-12011

O-Ring

24

20Y-62-43470

Nipple

25

02896-11008

O-Ring

26

11Y-62-12140

Nipple

27

02896-11008

O-Ring

28

07000-12011

O-Ring

29

20Y-62-K5720

Hose

30

20Y-62-K5730

Hose

31

208-62-72310

Hose, 950mm

32

208-62-72650

Hose, 1200mm

33

20Y-62-22790

Band, Red

34

20Y-62-22820

Band, Blue

35

20Y-62-22840

Band, Black

36

20Y-62-22860

Band, Brown

37

08034-20519

Band

38

08034-20823

Band

39

04435-51210

Clip

40

195-33-11220

Spacer

41

01010-81050

Bolt

42

01643-31032

Washer

43

01583-11408

Nut

44

206-06-61130

Switch

45

20Y-53-14130

Bracket

46

01643-31032

Washer

47

01580-11008

Nut

48

08034-20519

Band
