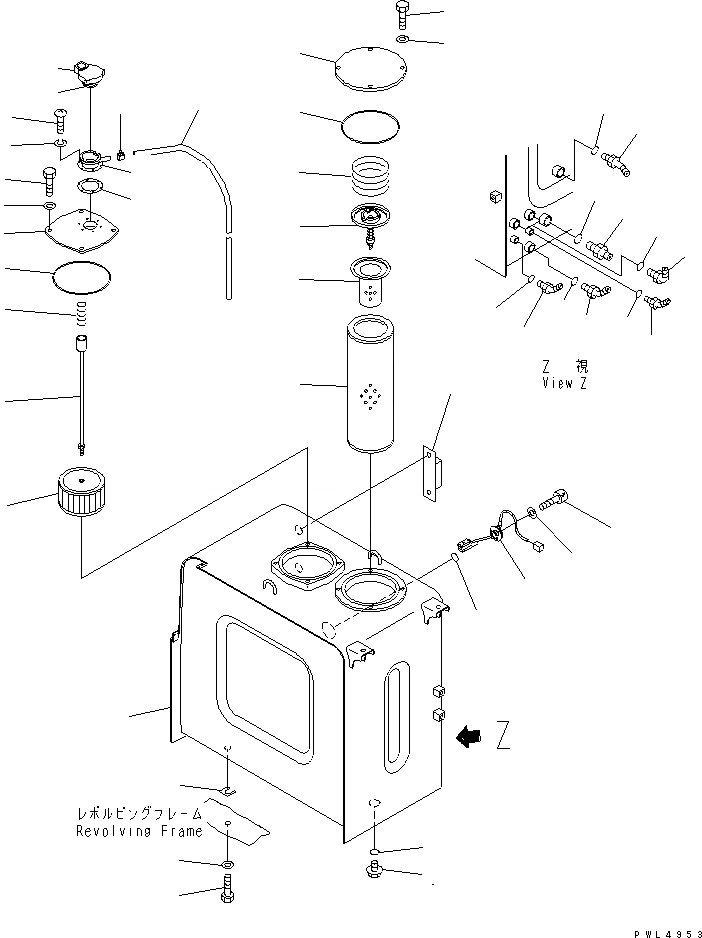

Запчасти Komatsu PC290LC-6K ГИДР. БАК. (С ДАТЧИКОМ)(№K-) ГИДРАВЛИКА

|1

20Y-60-K1470

HYDRAULIC TANK ASS'Y

1

TANK

2

20Y-60-K1480

GAUGE

3

07044-12412

PLUG

4

07002-12434

O-RING

5

07230-20628

UNION

6

07002-12434

O-RING

7

07236-10522

ELBOW

8

07002-12434

O-RING

9

07235-10315

ELBOW

10

07002-12034

O-RING

11

07236-10315

ELBOW

12

07002-12034

O-RING

13

07236-10210

ELBOW

14

07002-11423

O-RING

15

20Y-60-21510

ELEMENT

16

206-60-41221

STRAINER

17

12R-60-11300

VALVE ASS'Y

18

20Y-60-21240

SPRING

19

20Y-60-22530

COVER

20

07000-15180

O-RING

21

01010-81230

BOLT

22

01643-31232

WASHER

|23

20Y-60-K1280

STRAINER ASS'Y

23

203-60-56250

STRAINER

24

20Y-60-K1270

ROD

25

12R-60-11230

SPRING

26

20E-60-K1210

COVER

27

07000-15180

O-RING

28

01010-81225

BOLT

29

01643-31232

WASHER

|30

17A-60-11310

CAP ASS'Y

30

20Y-60-21440

CAP

31

20Y-60-21470

ELEMENT

32

20Y-60-21460

NECK

33

205-60-66211

GASKET

34

01023-10516

SCREW

35

01601-20513

WASHER,SPRING

36

07285-00155

CLIP

37

20Y-60-21190

TUBE

38

01010-81635

BOLT

39

01643-31645

WASHER

40

195-03-11570

SHIM¤ 1.0MM

41

7861-92-4210

SENSOR

42

7861-92-4220

O-RING

43

01252-40612

BOLT

44

01641-20608

WASHER
