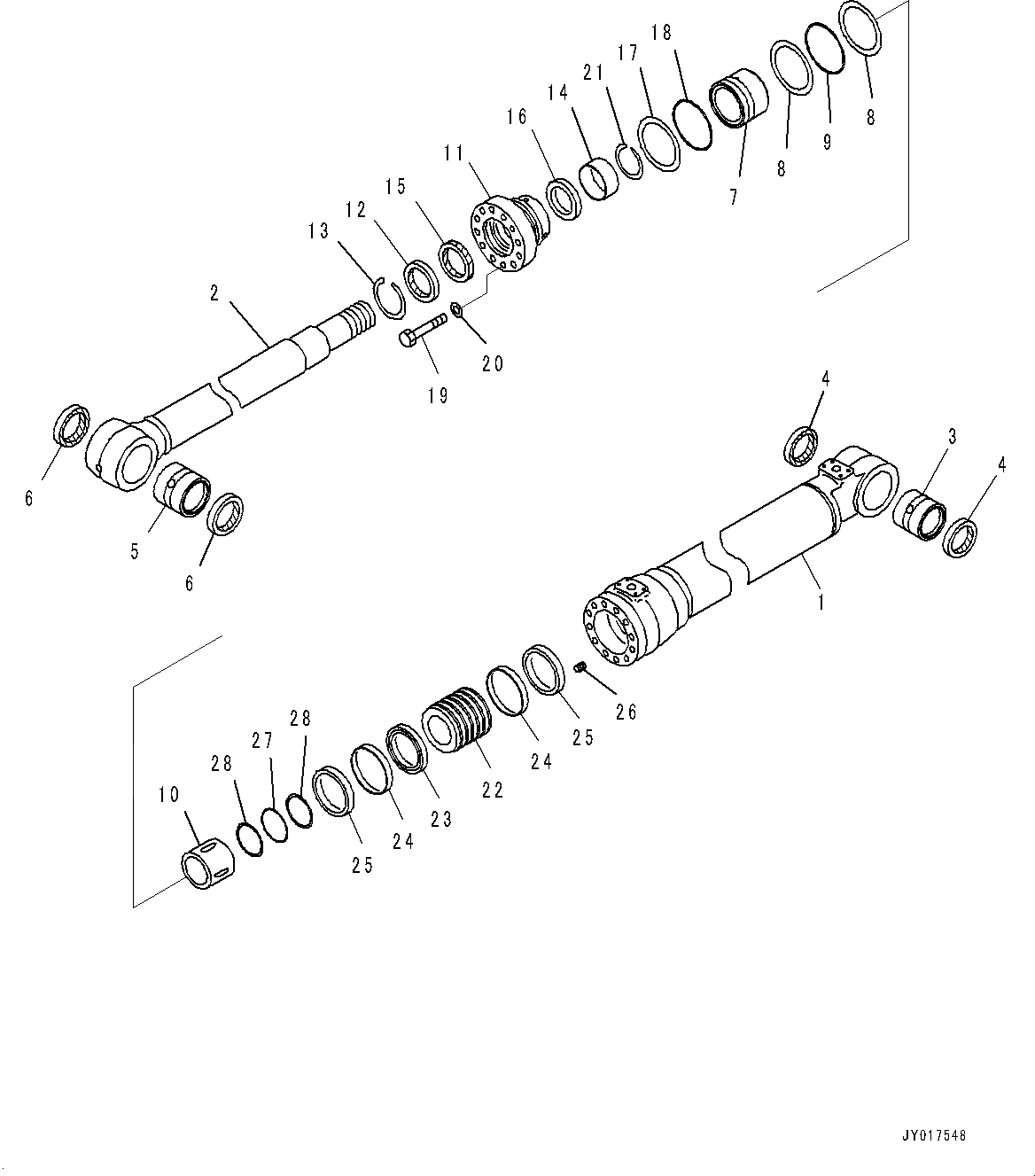

Запчасти Komatsu PC290LC-10 ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ, ЦИЛИНДР СТРЕЛЫ, LHS (/) ЦИЛИНДР СТРЕЛЫ, С ANTI-DROP КЛАПАН, ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ

|$0

707-E1-02030

Cylinder Assembly

1

721-13-14120

Cylinder

2

721-58-10460

Rod, Piston

3

707-76-80431

Bushing

4

07145-00080

Seal, Dust, (Kit)

5

707-76-80431

Bushing

6

07145-00080

Seal, Dust, (Kit)

7

707-71-35240

Collar

8

707-35-31310

Ring, Back-Up, (Kit)

9

07000-B5130

O-Ring, (Kit)

10

707-71-71020

Plunger

11

707-27-14690

Head, Cylinder

12

707-56-10740

Seal, Dust, (Kit)

13

07179-13114

Ring, Snap

14

707-52-90781

Bushing

15

707-51-10860

Packing, Rod, (Kit)

16

707-51-10650

Ring, Buffer, (Kit)

17

707-35-31310

Ring, Back-Up, (Kit)

18

07000-B5130

O-Ring, (Kit)

19

01010-81875

Bolt

20

707-41-11840

Washer

21

707-75-10160

Ring, Snap

22

707-36-14650

Piston

23

707-44-14150

Ring, Piston, (Kit)

24

707-39-14110

Ring, Wear, (Kit)

25

707-35-30900

Ring, Back-Up, (Kit)

26

01310-01216

Screw

27

07000-B5090

O-Ring, (Kit)

28

707-44-14910

Ring

|$29

707-99-59160

Seal Kit, Hydraulic Cylinder
