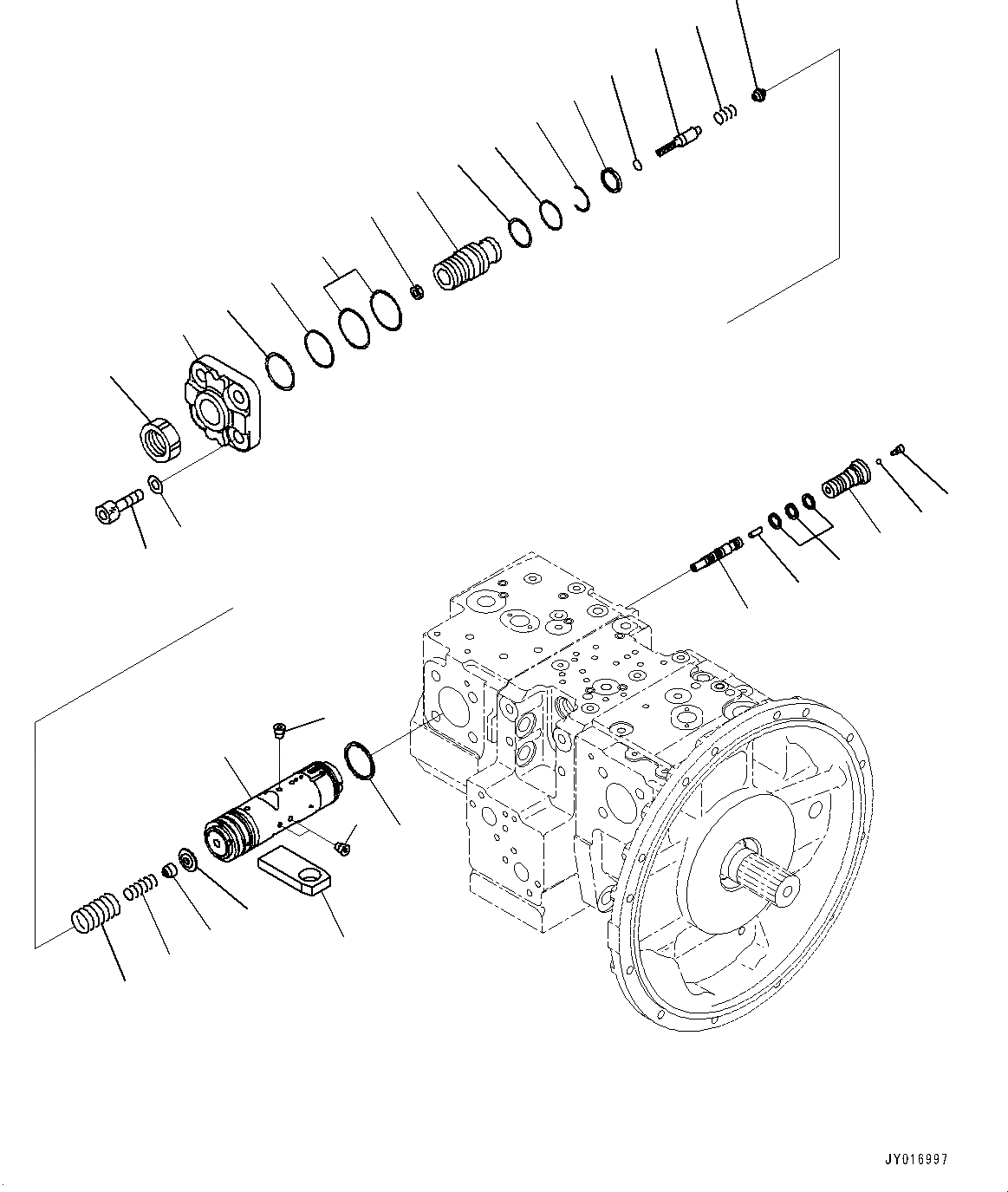

Запчасти Komatsu PC290LC-10 ОСНОВН. ПОРШЕНЬ НАСОС, ВНУТР. ЧАСТИ (8/) ОСНОВН. ПОРШЕНЬ НАСОС

|$0

708-2G-00310

Pump Assembly

|$1

708-2G-01310

Pump Subassembly

1

708-2G-14610

Slider

1

708-2G-03310

Valve Assembly

1

708-2G-03320

Piston Assembly

4

708-2G-15320

Seal

5

708-2L-45210

Plug

6

708-2L-35760

Ball

7

708-2L-35770

Plug

8

708-2L-35690

Seal

9

708-2L-35280

Pin

10

708-2L-35860

Spool

11

708-2G-15290

Retainer

12

708-2L-35641

Seat

13

708-2G-14650

Spring

14

708-2G-14670

Spring

15

708-2L-35650

Seat

16

708-2G-14660

Spring

17

708-2G-14690

Screw

18

07000-B3038

O-Ring

19

708-2G-15230

Ring, Back-Up

20

708-2G-15260

Seal

21

708-2L-35270

Plug

22

07000-B2011

O-Ring

23

07000-B2050

O-Ring

24

708-2G-15310

Ring, Back-Up

25

708-2G-14680

Cover

26

01580-10806

Nut

27

708-2L-35290

Nut

28

708-2G-15330

Ring, Wear

29

708-2L-45240

Seal Ring

30

01010-61645

Bolt

31

01643-31645

Washer
