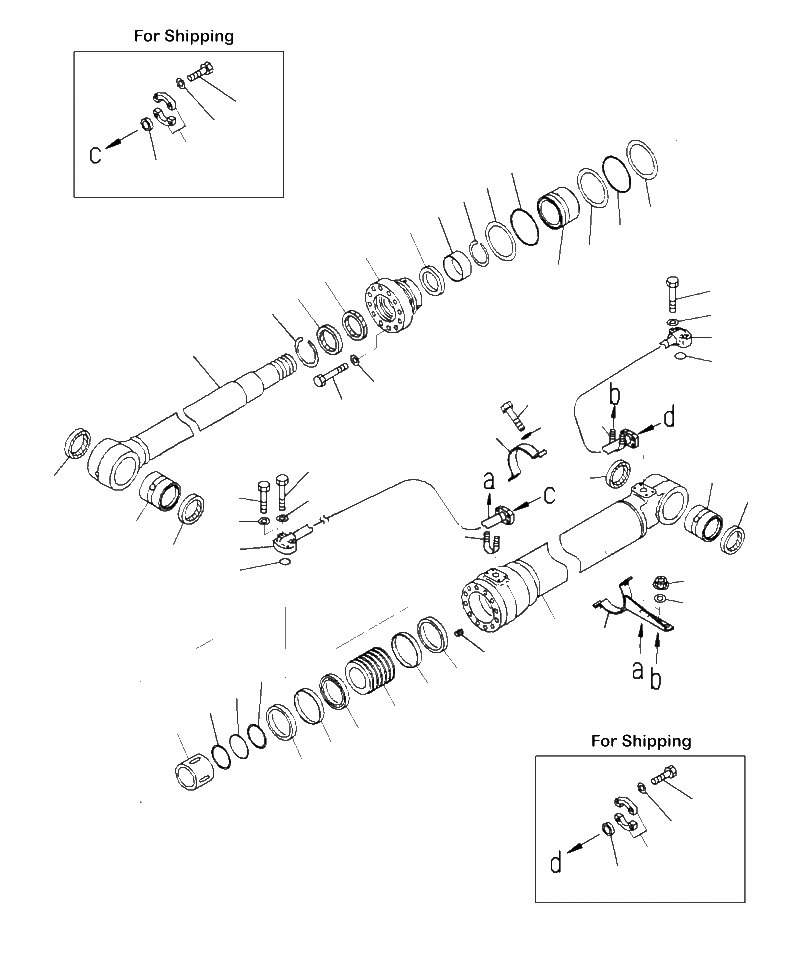

Запчасти Komatsu PC290LC-10 T- ПРАВ. ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-E1-00380

CYLINDER ASSEMBLY

1

721-13-14040

CYLINDER

2

707-58-10801

ROD, PISTON

3

707-76-80431

BUSHING

4

07145-00080

SEAL, DUST

5

707-76-80431

BUSHING

6

07145-00080

SEAL, DUST

7

707-71-35160

COLLAR

8

707-35-31310

RING, BACK-UP

9

07000-B5130

O-RING

10

707-71-71020

PLUNGER

11

707-27-14690

HEAD, CYLINDER

12

707-56-10740

SEAL, DUST

13

07179-13114

RING, SNAP

14

707-52-90781

BUSHING

15

707-51-10030

PACKING, ROD

16

707-51-10650

RING, BUFFER

17

707-35-31310

RING, BACK-UP

18

07000-B5130

O-RING

19

01010-81875

BOLT

20

707-41-11840

WASHER

21

707-75-10160

RING, SNAP

22

707-36-14650

PISTON

23

707-44-14150

RING, PISTON

24

707-39-14110

RING, WEAR

25

707-35-30900

RING, BACK-UP

26

07000-B5090

O-RING

27

707-44-14910

RING

28

01310-01216

SCREW

29

707-86-69060

TUBE, R.H.

30

707-86-00800

TUBE, R.H.

31

707-88-51120

BRACKET, R.H.

32

707-88-21321

BAND

33

07283-32738

CLIP, PIPE

34

07283-33442

CLIP, PIPE

35

01597-01009

NUT

36

01643-31032

WASHER

37

707-88-33030

CAP

38

707-88-33040

CAP

39

07371-30640

FLANGE, SPLIT

40

07371-31049

FLANGE, SPLIT

41

07372-21035

BOLT

42

01643-51032

WASHER

43

07372-21060

BOLT

44

01643-51032

WASHER

45

07372-21045

BOLT

46

01643-51032

WASHER

47

07000-13030

O-RING

48

07000-13035

O-RING

|$49

707-99-59070

SEAL KIT, HYDRAULIC CYLINDER
