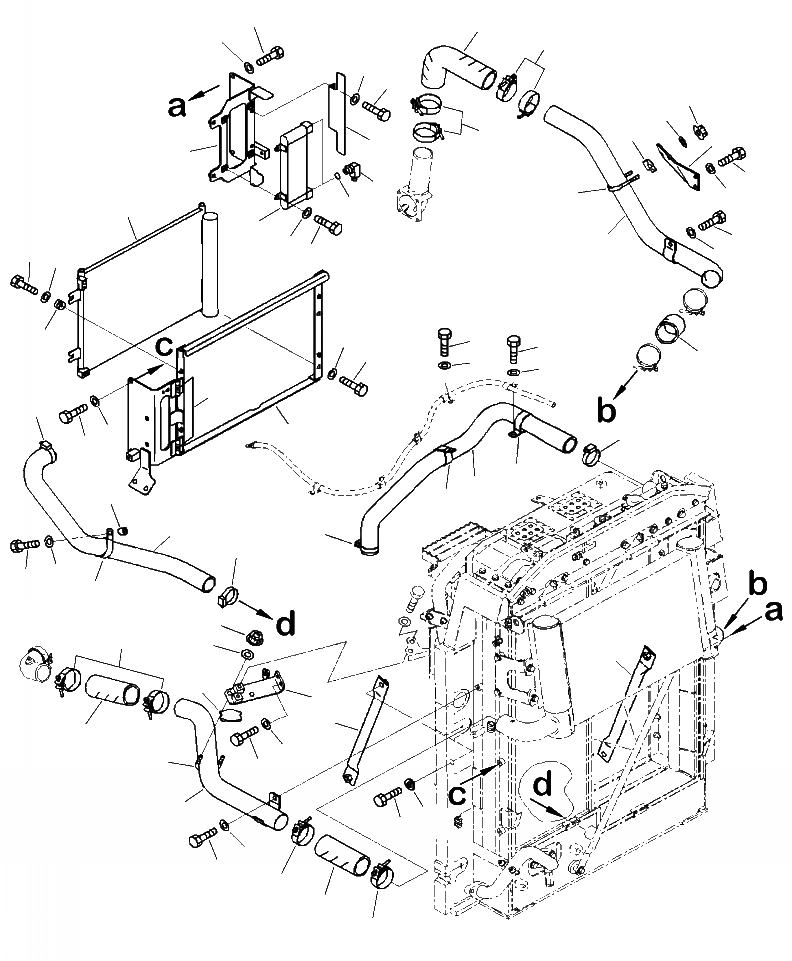

Запчасти Komatsu PC290LC-10 C- ТОПЛИВН. ОХЛАДИТЕЛЬ И КОНДЕНСАТОР СИСТЕМА ОХЛАЖДЕНИЯ

1

208-03-71161

OIL COOLER

2

01010-80825

BOLT

3

01643-30823

WASHER

4

2A5-03-12130

ELBOW

5

07002-12034

O-RING

6

2A5-03-11330

COVER

7

01010-81020

BOLT

8

01643-31032

WASHER

9

2A5-03-11291

BRACKET

10

01010-81020

BOLT

11

01643-31032

WASHER

12

2A5-03-11281

BRACKET

13

198-06-62820

HINGE, WELDED

14

01010-81020

BOLT

15

01643-31032

WASHER

16

01010-81030

BOLT

17

01643-31032

WASHER

18

2A5-979-1281

CONDENSER ASSEMBLY

19

20Y-810-1240

CUSHION

20

01010-80835

BOLT

21

01643-30823

WASHER

22

2A5-03-11632

TUBE

23

01010-81020

BOLT

24

01643-31032

WASHER

25

21T-62-69711

CLAMP

26

2A5-03-11651

BRACKET

27

01010-81030

BOLT

28

01643-31032

WASHER

29

2A5-03-11641

TUBE

30

01010-81020

BOLT

31

01643-31032

WASHER

32

2A5-03-11661

BRACKET

33

01010-81030

BOLT

34

01643-31032

WASHER

35

07283-36365

CLIP

36

07283-56374

SEAT

37

01643-31032

WASHER

38

01597-01009

NUT

39

2A5-03-11610

HOSE

40

2A5-03-11621

HOSE

41

2A5-03-11960

HOSE

42

07289-00055

CLAMP

43

2A5-03-11940

CLIP

44

01010-81230

BOLT

45

01643-31232

WASHER

46

01010-81045

BOLT

47

01643-31032

WASHER

48

175-79-83760

SPACER

49

2A5-03-11581

HOSE

50

206-03-35440

HOSE

51

2A5-03-11821

STAY

52

01010-81640

BOLT

53

21T-54-16150

WASHER
