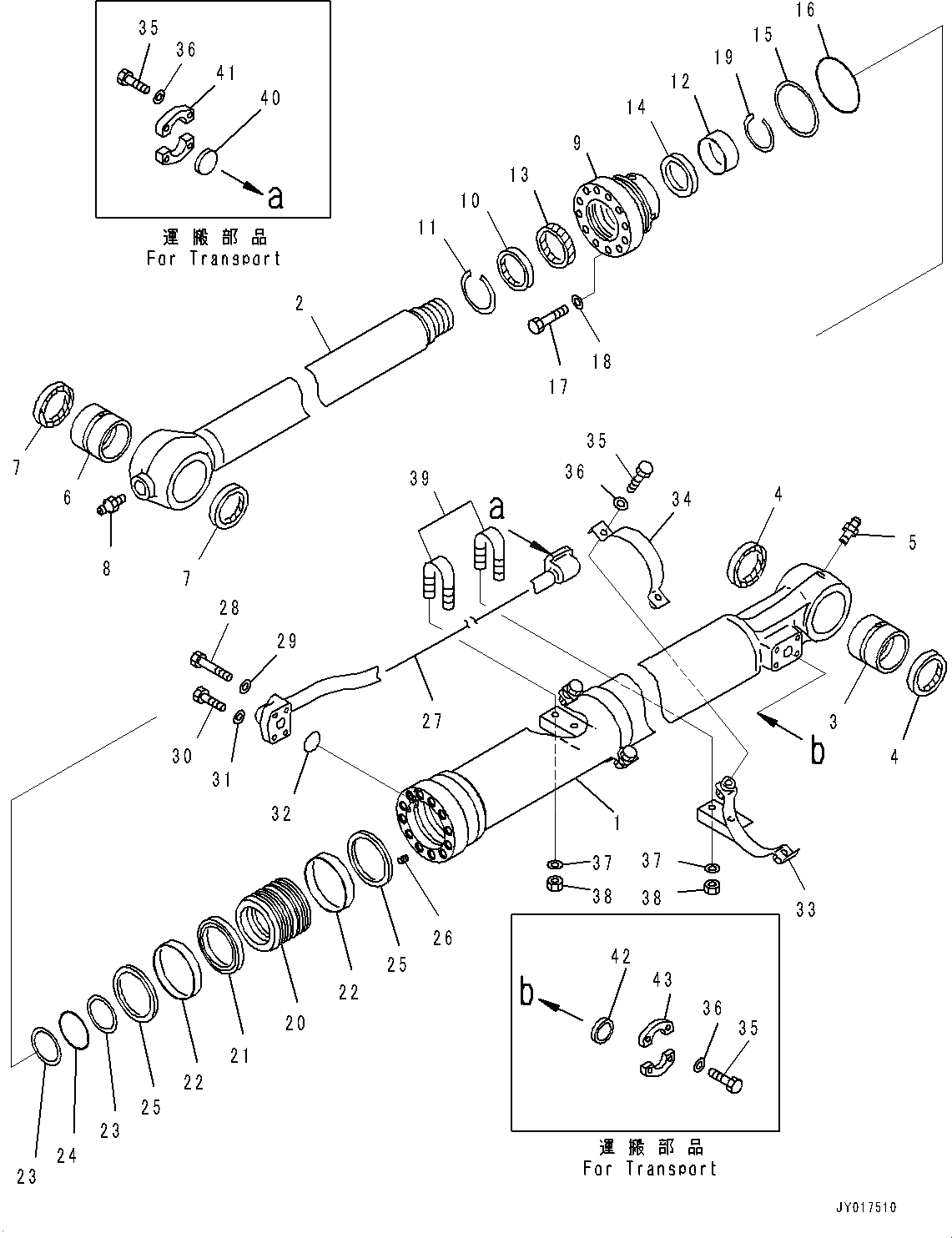

Запчасти Komatsu PC290LC-10 РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН., ЦИЛИНДР КОВША РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН.

|$1

707-E1-00510

Cylinder Assembly

1

721-13-14070

Cylinder

2

721-58-10110

Rod

3

707-76-80431

Bushing

4

07145-00080

Seal, Dust, (Kit : K04)

5

07020-00000

Fitting, Grease

6

707-76-80020

Bushing

7

20Y-70-23230

Seal, Dust, (Kit : K04)

8

07020-00000

Fitting, Grease

9

707-27-14690

Head, Cylinder

10

707-56-10740

Seal, Dust, (Kit : K04)

11

07179-13114

Ring, Snap

12

707-52-90781

Bushing

13

707-51-10860

Packing, Rod, (Kit : K04)

14

707-51-10650

Ring, Buffer, (Kit : K04)

15

707-35-31310

Ring, Back-Up, (Kit : K04)

16

07000-B5130

O-Ring, (Kit : K04)

17

01010-81875

Bolt

18

707-41-11840

Washer

19

707-75-10160

Ring, Snap

20

707-36-14650

Piston

21

707-44-14150

Ring, Piston, (Kit : K04)

22

707-39-14110

Ring, Wear, (Kit : K04)

23

707-35-30900

Ring, Back-Up, (Kit : K04)

24

07000-B5090

O-Ring, (Kit : K04)

25

707-44-14910

Ring, Back-Up

26

01310-01216

Screw

27

707-86-67960

Tube

28

07372-21060

Bolt

29

01643-51032

Washer

30

07372-21045

Bolt

31

01643-51032

Washer

32

07000-13030

O-Ring, (Kit : K04)

33

707-88-22680

Bracket

34

707-88-21361

Band

35

07372-21035

Bolt

36

01643-51032

Washer

37

01643-31032

Washer

38

01597-01009

Nut

39

07283-32738

Clip, Pipe

40

707-88-33030

Cap

41

07371-30640

Flange, Split

42

707-88-33040

Cap

43

07371-31049

Flange, Split

K04

707-99-59080

Seal Kit, Hydraulic Cylinder
