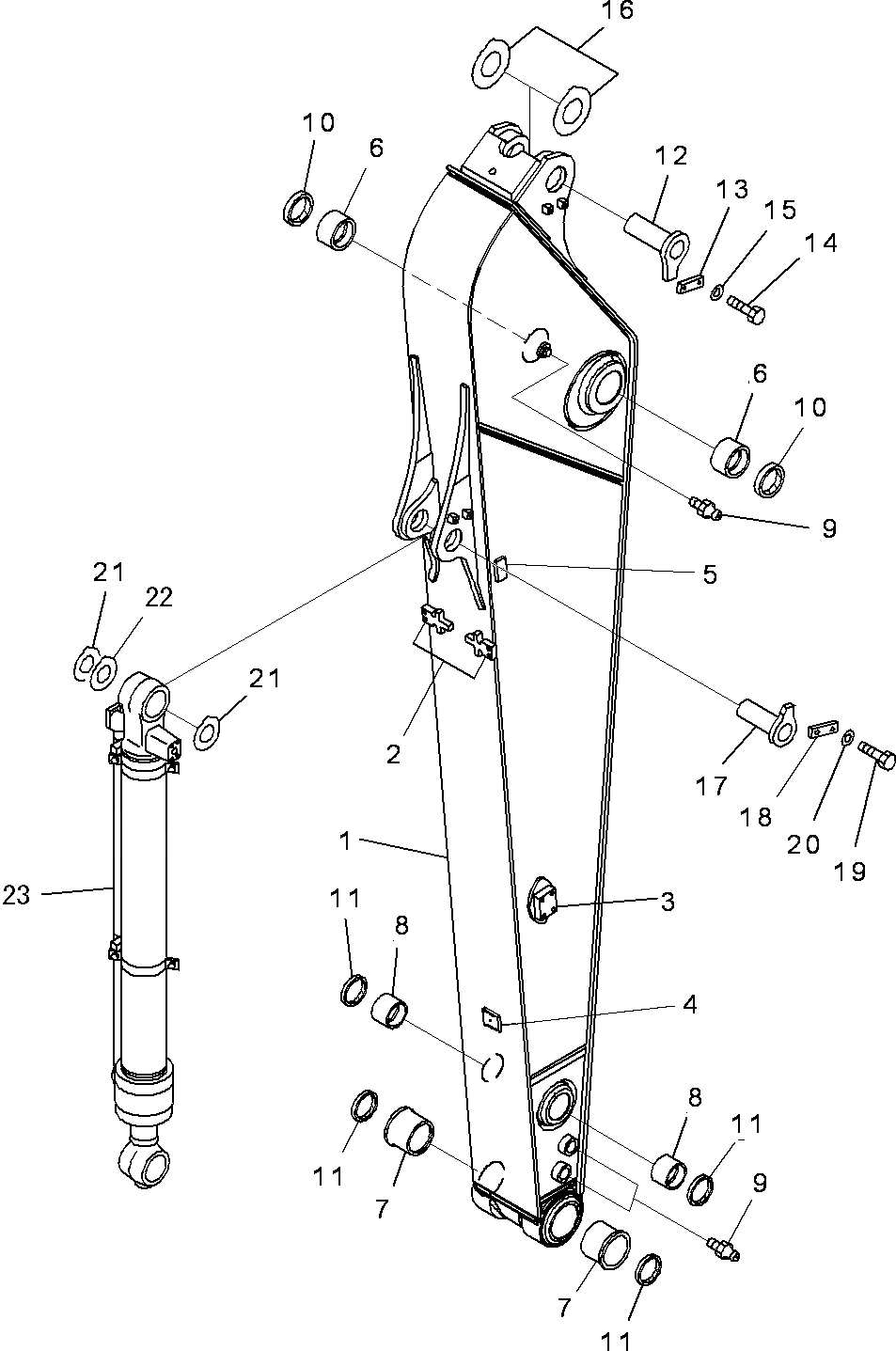

Запчасти Komatsu PC290LC-10 РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН., РУКОЯТЬ РУКОЯТЬ, MM, С ГИДРОМОЛОТОМ ГРЕЙФЕРН.

|$1

206-70-K2381

Arm Assembly

1

206-70-K8021

Arm

2

20Y-70-22B81

Plate (Welded)

3

20Y-70-22F80

Bar (Welded)

4

20Y-70-22F90

Bar (Welded)

5

20Y-70-42E51

Plate (Welded)

6

20Y-970-3570

Bracket (Welded)

7

20Y-70-K6410

Seat (Welded)

8

206-62-K2740

Bracket (Welded)

9

20Y-62-K7290

Seat (Welded)

10

20Y-70-31272

Bushing

11

20Y-70-32410

Bushing

12

21K-70-12161

Bushing

13

07145-00090

Seal

14

20Y-70-23230

Seal

15

206-70-22230

Pin

16

205-70-66581

Plate

17

01010-81230

Bolt

18

01643-31232

Washer

19

21K-70-71650

Spacer, 1.0mm

20

206-70-22240

Pin

21

205-70-66581

Plate

22

01010-81230

Bolt

23

01643-31232

Washer

24

21K-70-71650

Spacer, 1.0mm

25

21K-70-71660

Spacer, 2.0mm

26

07020-00000

Fitting, Grease

27

707-H1-X0510

Cylinder Group
