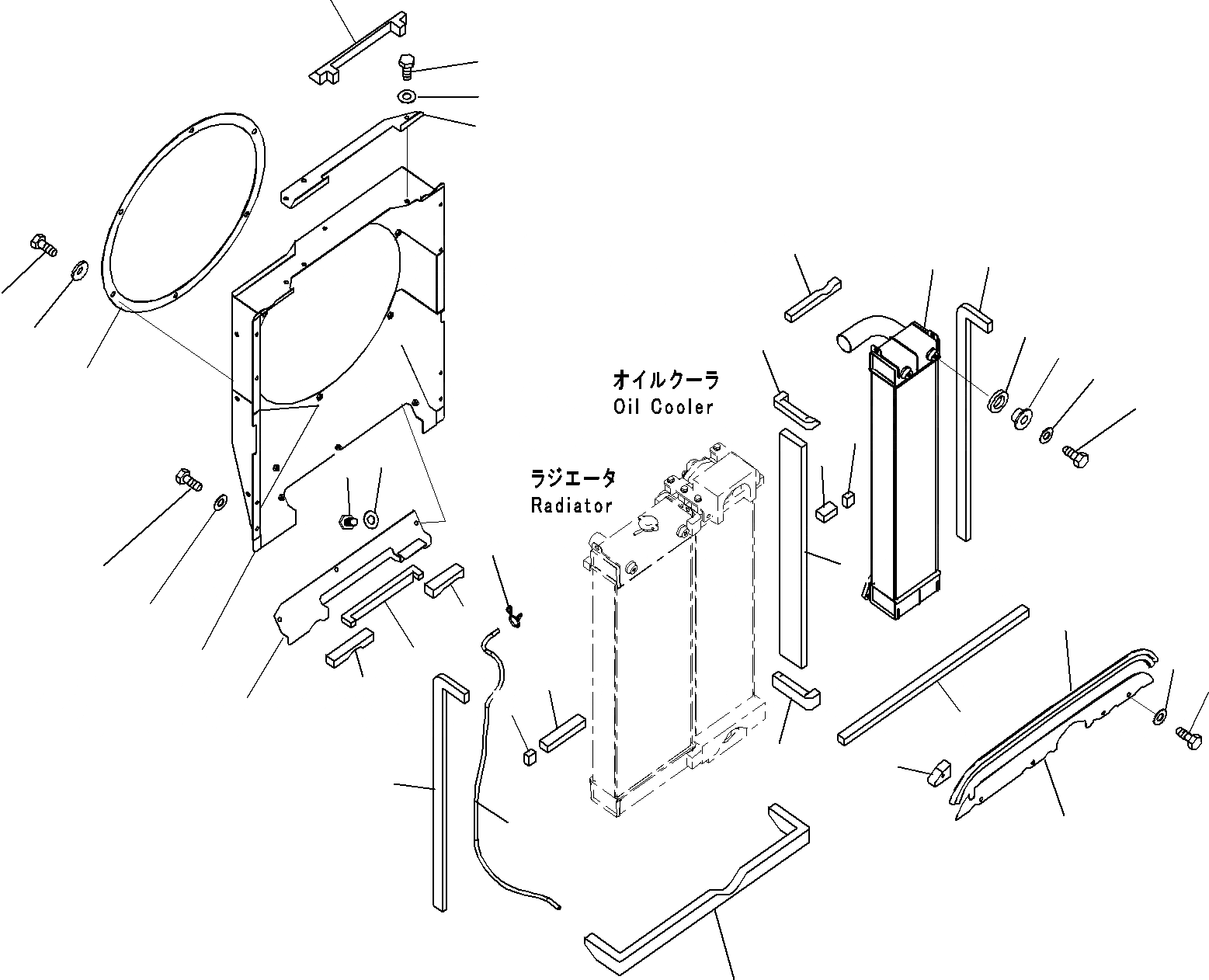

Запчасти Komatsu PC290-8K СИСТЕМА ОХЛАЖДЕНИЯ, ДЛЯ MACHINE С КОНДИЦИОНЕРОМ (/)(№-) СИСТЕМА ОХЛАЖДЕНИЯ

1

206-03-22221

Shroud

2

01010-81020

Bolt

3

01643-31032

Washer

4

20Y-03-41321

Plate

5

01010-81020

Bolt

6

203-54-56970

Washer

|6

206-03-21341

Cover Assembly

7

206-03-21491

Sheet

8

206-03-21231

Cover

9

01010-81020

Bolt

10

01643-31032

Washer

|10

206-03-21680

Cover Assembly

11

206-03-21481

Sheet

12

206-03-21670

Cover

13

206-03-21551

Sheet

14

206-03-21381

Sheet

15

01010-81020

Bolt

16

01643-31032

Washer

|17

206-03-22431

After Cooler Assembly

17

206-03-22131

After Cooler

18

206-03-21361

Sheet

19

206-03-22290

Sheet

20

206-03-21460

Sheet

21

206-03-21540

Sheet

22

22U-03-22860

Cushion

23

6738-61-4952

Collar

24

01010-81030

Bolt

25

01643-31032

Washer

26

20Y-03-21460

Hose

27

206-03-43340

Clip

28

206-03-21281

Sheet

29

206-03-22310

Sheet

30

206-03-21320

Sheet

31

206-03-22310

Sheet

32

206-03-21560

Sheet

33

206-03-21570

Sheet

34

206-03-21690

Sheet

35

20Y-03-41521

Sheet

36

20Y-03-41631

Sheet

37

206-03-22250

Cover

38

01010-81020

Bolt

39

01643-31032

Washer

40

20Y-03-41870

Seal
