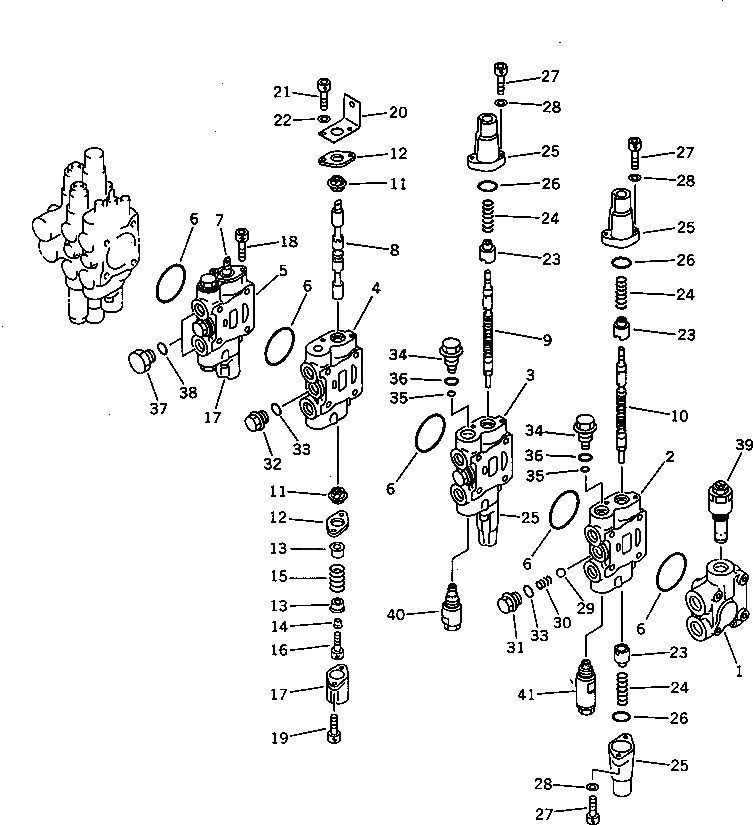

Запчасти Komatsu PC28UU-2 ОСНОВН. КЛАПАН (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-36-13800

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

SPOOL,SERVICE

8

SPOOL,TRAVEL, R.H.

9

SPOOL,BUCKET

10

SPOOL,BOOM

11

709-32-11530

SEAL,DUST

12

709-32-11540

PLATE

13

709-32-11550

RETAINER

14

709-32-11560

COLLAR

15

709-32-11580

SPRING

16

01252-30620

BOLT

17

709-32-11570

COVER

18

01252-30610

BOLT

19

01252-30616

BOLT

20

709-32-12890

PLATE

21

01252-30618

BOLT

22

01643-30623

WASHER

23

709-32-12840

RETAINER

24

709-32-13510

SPRING

25

709-32-12851

CASE

26

709-32-11760

O-RING

27

01252-30622

BOLT

28

01641-20608

WASHER

29

04260-01270

BALL

30

709-32-11820

SPRING

31

709-32-11810

PLUG

32

709-32-11930

PLUG

33

07002-11823

O-RING

34

709-32-11830

PLUG

35

709-32-11840

O-RING

36

07002-02034

O-RING

37

07040-11812

PLUG

38

07000-11823

O-RING

39

700-28-63000

VALVE ASS'Y,RELIEF

40

709-30-65400

VALVE ASS'Y,SAFETY

41

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY
