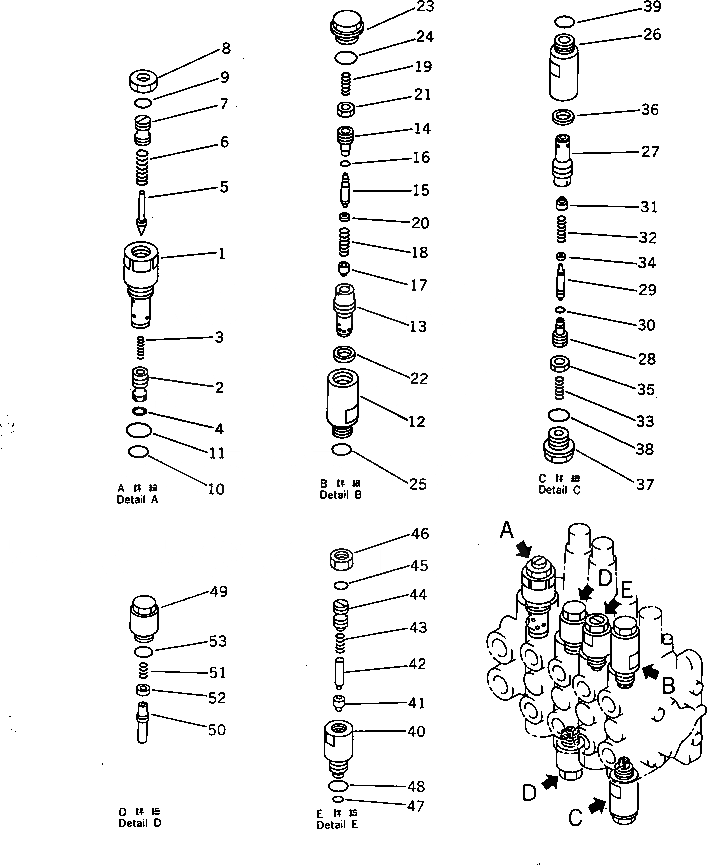

Запчасти Komatsu PC28UU-2 ОСНОВН. КЛАПАН (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE)(№7-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$1
709-34-13100
VALVE ASS'Y
|$3
700-28-64000
VALVE ASS'Y,MAIN RELIEF
1
SLEEVE
2
VALVE
3
700-20-51430
SPRING
4
700-20-51240
RING
5
700-80-61190
POPPET
6
700-20-51350
SPRING
7
700-20-51340
SCREW
8
01583-11408
NUT
9
07000-02011
O-RING
10
700-22-11410
O-RING
11
07002-02434
O-RING
|$15
709-30-62301
VALVE ASS'Y,SUCTION AND SAFETY
12
709-30-62110
SLEEVE
13
VALVE
14
SCREW
15
PISTON
16
O-RING
17
POPPET
18
SPRING
19
700-20-62170
SPRING
20
SEAL
21
NUT
22
SEAL
23
709-30-62150
PLUG
24
07002-12034
O-RING
25
07002-02034
O-RING
|$30
709-30-62101
VALVE ASS'Y,SUCTION AND SAFETY
26
709-30-62110
SLEEVE
27
VALVE
28
SCREW
29
PISTON
30
O-RING
31
POPPET
32
SPRING
33
700-20-62170
SPRING
34
SEAL
35
NUT
36
SEAL
37
709-30-62150
PLUG
38
07002-12034
O-RING
39
07002-02034
O-RING
|$45
709-30-65300
VALVE ASS'Y,SAFETY
40
SLEEVE
41
POPPET
42
PISTON
43
SPRING
44
SCREW
45
O-RING
46
NUT
47
709-32-11840
O-RING
48
07002-02034
O-RING
|$55
709-30-61100
VALVE ASS'Y,SUCTION
49
709-30-61110
SLEEVE
50
VALVE
51
700-20-62170
SPRING
52
SEAL
53
07002-02034
O-RING
Выбрано товаров: 59
