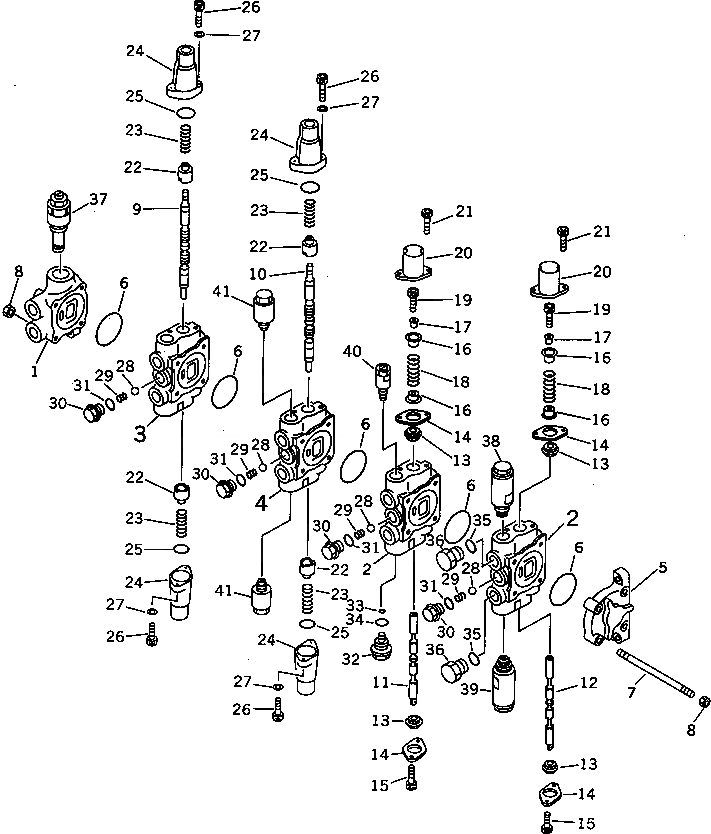

Запчасти Komatsu PC28UU-2 ОСНОВН. КЛАПАН (/) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ANGLE)(№7-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-34-13100

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

COVER

6

07000-12055

O-RING

7

700-25-11210

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

SPOOL,OFFSET

11

SPOOL,BLADE LIFT

12

SPOOL,BLADE TILT

13

709-32-11530

SEAL,DUST

14

709-32-11540

PLATE

15

01252-30610

BOLT

16

709-32-11550

RETAINER

17

709-32-11560

COLLAR

18

709-32-11580

SPRING

19

01252-30620

BOLT

20

709-32-11570

COVER

21

01252-30616

BOLT

22

709-32-12840

RETAINER

23

709-32-13510

SPRING

24

709-32-12851

CASE

25

709-32-11760

O-RING

26

01252-30622

BOLT

27

01641-20608

WASHER

28

04260-01270

BALL

29

709-32-11820

SPRING

30

709-32-11810

PLUG

31

07002-11823

O-RING

32

709-32-11830

PLUG

33

709-32-11840

O-RING

34

07002-02034

O-RING

35

07040-11812

PLUG

36

07002-11823

O-RING

37

700-28-64000

VALVE ASS'Y,MAIN RELIEF

38

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY

39

709-30-62101

VALVE ASS'Y,SUCTION AND SAFETY

40

709-30-65300

VALVE ASS'Y,SAFETY

41

709-30-61100

VALVE ASS'Y,SUCTION
