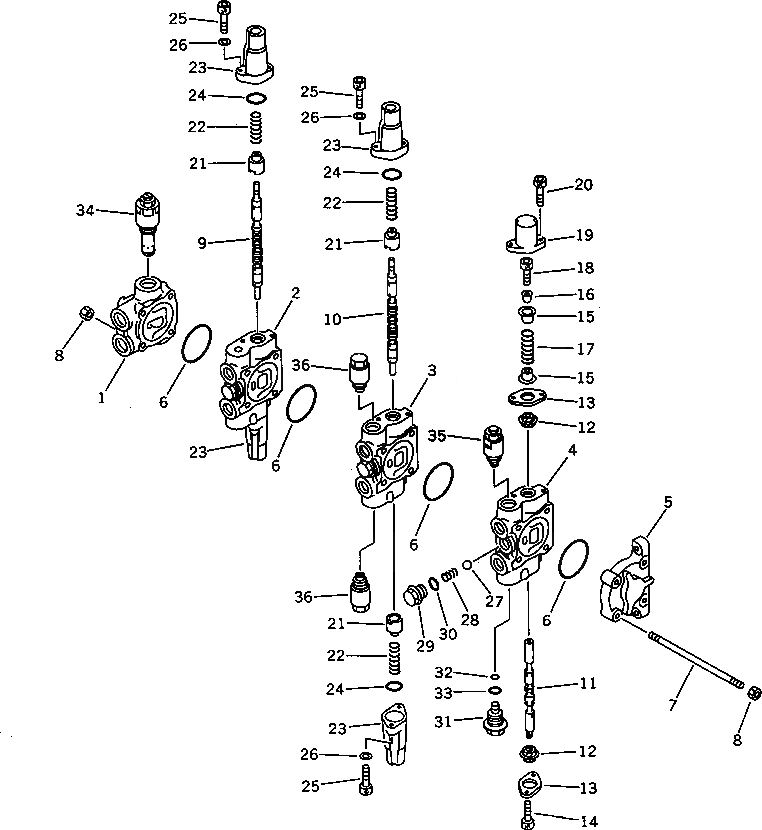

Запчасти Komatsu PC28UU-2 ОСНОВН. КЛАПАН (/)(№7-8) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-33-13400

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

COVER

6

07000-12055

O-RING

7

709-33-11510

STUD

8

01580-10806

NUT

9

SPOOL,SWING

10

SPOOL,OFFSET

11

SPOOL,BLADE

12

709-32-11530

SEAL,DUST

13

709-32-11540

PLATE

14

01252-30610

BOLT

15

709-32-11550

RETAINER

16

709-32-11560

COLLAR

17

709-32-11580

SPRING

18

01252-30620

BOLT

19

709-32-11570

COVER

20

01252-30616

BOLT

21

709-32-12840

RETAINER

22

709-32-13510

SPRING

23

709-32-12851

CASE

24

709-32-11760

O-RING

25

01252-30622

BOLT

26

01641-20608

WASHER

27

04260-01270

BALL

28

709-32-11820

SPRING

29

709-32-11810

PLUG

30

07002-11823

O-RING

31

709-32-11830

PLUG

32

709-32-11840

O-RING

33

07002-02034

O-RING

34

700-28-64000

VALVE ASS'Y,MAIN RELIEF

35

709-30-65300

VALVE ASS'Y,SAFETY

36

709-30-61100

VALVE ASS'Y,SUCTION
