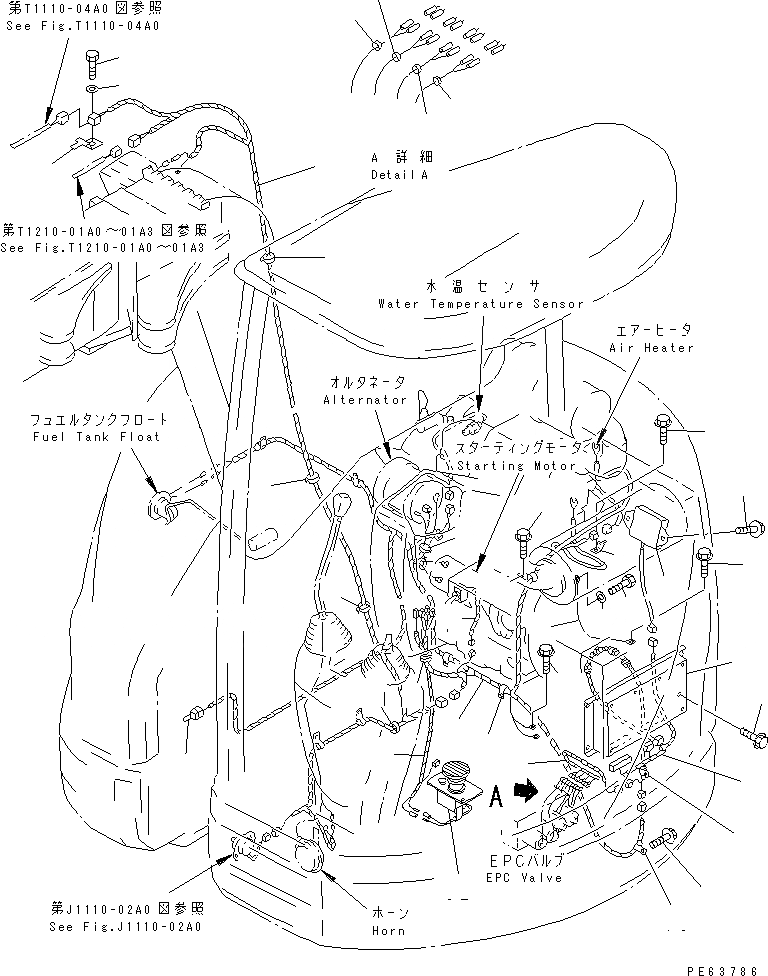

Запчасти Komatsu PC28UU-2 ЭЛЕКТР. ЭЛЕКТРОПРОВОДКА (ДЛЯ СИСТЕМА СПЕЦ-Я.) (ДЛЯ SPEED TRAVL)(№8-) ЭЛЕКТРИКА

1

21U-06-21621

WIRING HARNESS

1

21U-06-21630

WIRING HARNESS,(FOR 4 SYSTEM SPEC.)

1A

203-06-57241

FUSIBLE LINK

2

08034-00536

BAND

3

20N-06-71310

BAND

4

20P-06-71196

CABLE

5

08037-02512

GROMMET

6

08053-01510

CLIP

7

21U-06-21550

WIRE ASS'Y,(WITH SWITCH)

7

20U-06-21260

SWITCH

8

08036-11214

CLIP

9

08035-02510

CLIP

10

08035-01510

CLIP

11

01435-01020

BOLT

12

21U-06-21431

WIRING HARNESS

12

21U-06-21832

WIRING HARNESS,(FOR 4 SYSTEM SPEC.)

13

21U-06-21441

WIRING HARNESS

13

21U-06-21841

WIRING HARNESS,(FOR 4 SYSTEM SPEC.)

14

21U-06-21512

WIRING HARNESS

14

21U-06-21851

WIRING HARNESS,(FOR 4 SYSTEM SPEC.)

15

7824-65-2400

RESISTOR

16

01435-00812

BOLT

17

20N-06-71310

BAND

18

7824-65-4002

CONTROLLER

19

01435-00812

BOLT

20

01435-01020

BOLT

21

01010-51020

BOLT

22

01643-31032

WASHER

23

08036-01414

CLIP

24

203-62-57910

MARK, 1

25

203-62-57920

MARK, 2

26

203-62-57930

MARK, 3

27

203-62-57940

MARK, 4

28

08053-01510

CLIP

29

01010-51016

BOLT

30

01643-31032

WASHER

31

21U-06-21921

WIRING HARNESS

32

20T-43-72310

PEDAL ASS'Y
