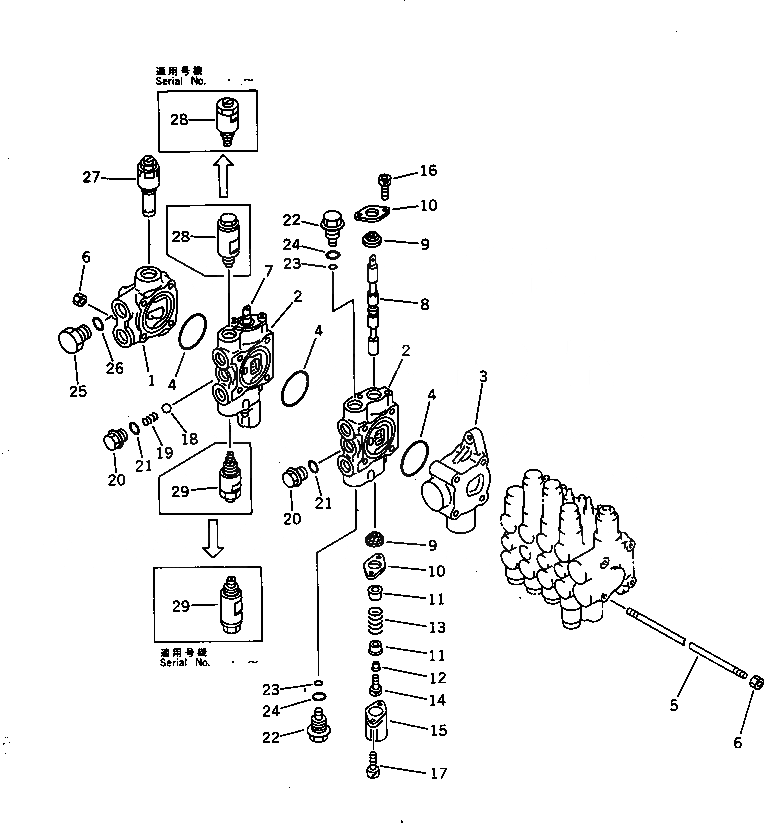

Запчасти Komatsu PC28UU-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/) (6-СЕКЦИОНН.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-36-12102

VALVE ASS'Y

|1

709-36-12101

VALVE ASS'Y

|1

709-36-12100

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

07000-12055

O-RING

5

709-36-11510

STUD

6

01580-10806

NUT

7

SPOOL,ARM

8

SPOOL,TRAVEL¤ L.H.

9

709-32-11530

SEAL,DUST

10

709-32-11540

PLATE

11

709-32-11550

RETAINER

12

709-32-11560

COLLAR

13

709-32-11580

SPRING

|13

709-32-11590

SPRING

14

01252-30620

BOLT

15

709-32-11570

COVER

16

01252-30610

BOLT

17

01252-30616

BOLT

18

04260-01270

BALL

19

709-32-11820

SPRING

20

709-32-11810

PLUG

21

07002-11823

O-RING

22

709-32-11830

PLUG

23

709-32-11840

O-RING

24

07002-02034

O-RING

25

07040-12012

PLUG

26

07002-02034

O-RING

27

700-27-56000

VALVE ASS'Y,RELIEF

28

709-30-65400

VALVE ASS'Y,SAFETY

|28

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

29

709-30-64500

VALVE ASS'Y,SUCTION AND SAFETY

|29

709-30-62400

VALVE ASS'Y,SUCTION AND SAFETY

|29

709-30-65400

VALVE ASS'Y,SAFETY
