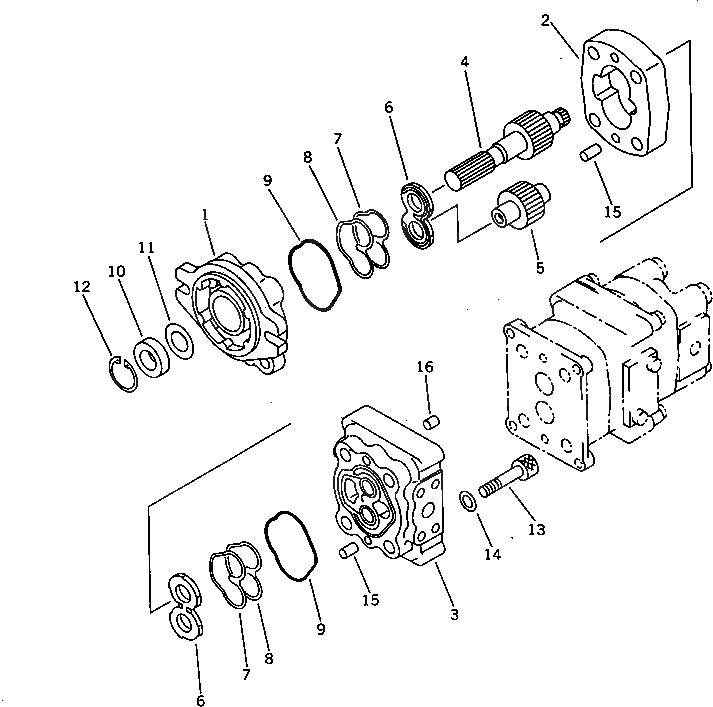

Запчасти Komatsu PC28UU-1 ГИДР. НАСОС. (/)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

705-41-08050

PUMP ASS'Y,(SBR10+10+8)

|1

705-41-03001

PUMP ASS'Y,(SBR10)

1

705-41-80210

BRACKET

|1

705-40-80620

BUSHING,PLANE (DRIVE SIDE)

|1

705-40-80610

BUSHING,PLANE (DRIVEN SIDE)

2

705-40-22011

CASE,GEAR

3

705-40-80311

CARRIER

|3

705-40-80610

BUSHING,PLANE (DRIVE SIDE)

|3

705-40-80620

BUSHING,PLANE (DRIVEN SIDE)

4

705-40-22342

GEAR,DRIVE

5

705-40-22511

GEAR,DRIVEN

6

705-40-80710

PLATE,SIDE

7

705-40-80730

RING,BACK-UP

8

705-40-80740

RING,SEAL

9

705-40-80630

RING,SEAL

10

705-40-80810

SEAL,OIL

11

705-40-80870

PLATE

12

04065-03515

RING,SNAP

13

01252-31270

BOLT

14

01643-31232

WASHER

15

04020-00820

PIN,DOWEL

16

705-67-01230

PIN,DOWEL
