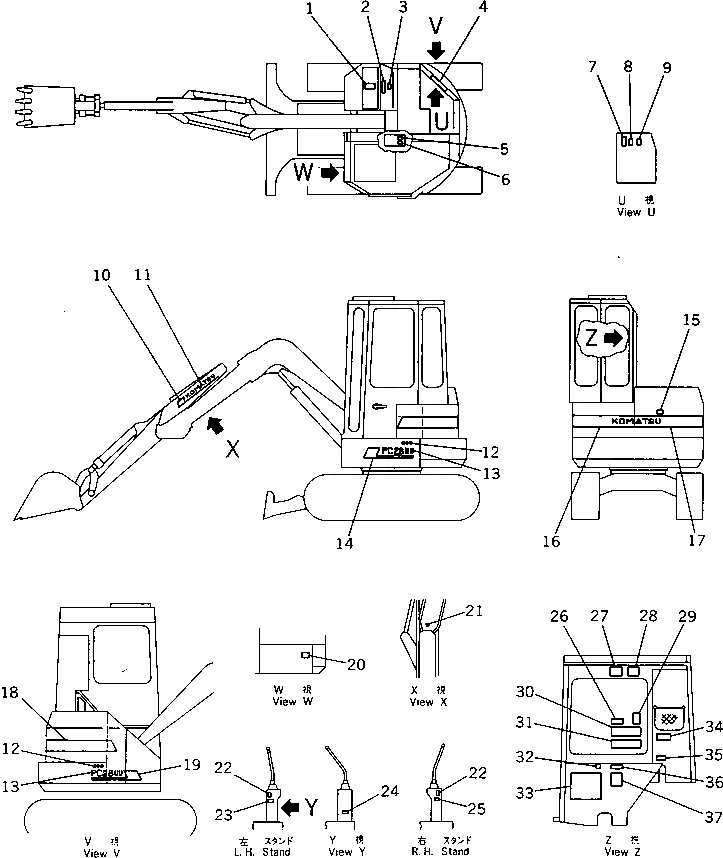

Запчасти Komatsu PC28UU-1 МАРКИРОВКА (ДЛЯ КАБИНЫ) (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20M-98-62210

PLATE¤ CAUTION,FUEL

|1

20N-98-41180

PLATE¤ INSTRUCTION,FUEL

2

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

5

21U-98-18120

PLATE¤ OPERATING,WIPER

6

21U-98-18110

PLATE¤ OPERATING,CAR HEATER

7

09650-01103

PLATE¤ INSTRUCTION,RADIATOR WATER LEVEL

8

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

9

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

10

21U-98-11310

PLATE¤ STRIPE

11

09690-50355

PLATE¤ MARK,KOMATSU

12

09694-50100

PLATE¤ MARK,SYMBOL

13

21U-98-11231

PLATE¤ MARK,PC28UU

14

21U-98-11280

PLATE¤ STRIPE

15

09667-00100

PLATE¤ SAFETY,ENGINE COVER

16

21U-98-11250

PLATE¤ MARK,KOMATSU

17

21U-98-11260

PLATE¤ MARK,KOMATSU

18

21U-98-11270

PLATE¤ STRIPE

19

21U-98-11290

PLATE¤ STRIPE

20

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|20

04418-13060

SCREW

21

20C-98-11360

PLATE¤ MARK,WORK EQUIPMENT MATCH MARK

|21

20U-00-11160

PLATE¤ MARK,WORK EQUIPMENT MATCH MARK

22

09685-00001

PLATE¤ OPERATING,WORK EQUIPMENT LOCK LEVER

23

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

24

20R-98-24130

PLATE¤ OPERATING,(QUICK SHIFT)

25

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

26

20M-98-34110

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

27

20P-98-11210

PLATE¤ CAUTION,TRACK LOADING

28

20P-98-11370

PLATE¤ CAUTION,TRAVELING ON SLOPE

29

20C-98-11320

PLATE¤ CAUTION,BOOM OFFSET

|29

20U-00-11150

PLATE¤ CAUTION,BOOM OFFSET

30

21U-98-11150

PLATE¤ OPERATING,KOMATSU PATTERN

31

21U-98-11160

PLATE¤ OPERATING,ISO PATTERN

32

20N-98-41150

PLATE¤ OPERATING,SWING LOCK

33

21U-98-11120

CHART¤ OIL

34

09132-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

35

20N-98-41160

PLATE¤ OPERATING,ENGINE CONTROL

36

20N-98-41170

PLATE¤ OPERATING,BLADE

37

21U-98-11130

PLATE¤ DATA
