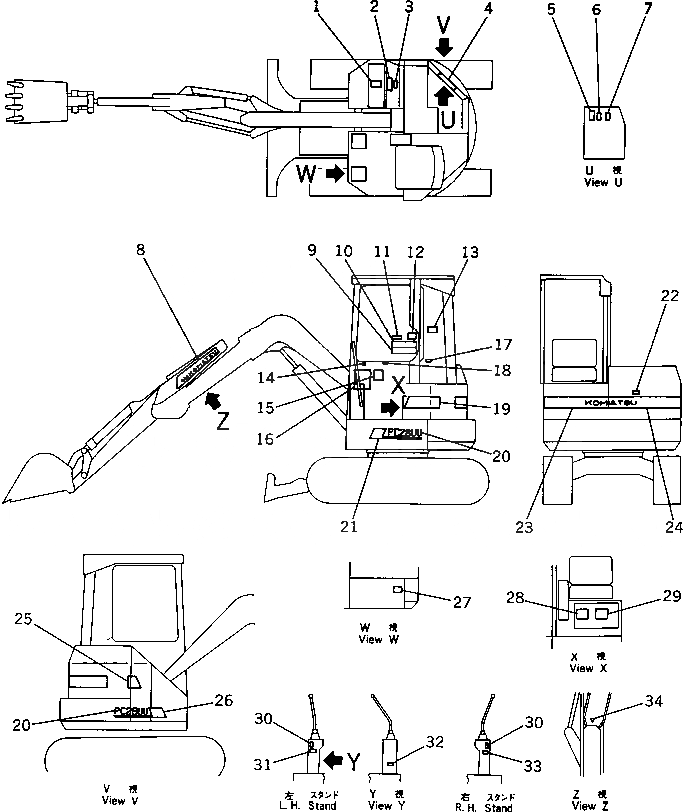

Запчасти Komatsu PC28UU-1 МАРКИРОВКА (ДЛЯ НАВЕСА) (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20M-98-62210

PLATE¤ CAUTION,FUEL

2

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

5

09650-01103

PLATE¤ INSTRUCTION,RADIATOR WATER LEVEL

6

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

7

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

8

21U-98-11315

PLATE¤ MARK,KOMATSU

9

21U-98-11160

PLATE¤ OPERATING,ISO PATTERN

10

21U-98-11150

PLATE¤ OPERATING,KOMATSU PATTERN

11

20M-98-34110

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

12

20C-98-11320

PLATE¤ CAUTION,BOOM OFFSET

13

09132-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

14

20N-98-41150

PLATE¤ OPERATING,SWING LOCK

15

21U-98-11130

PLATE¤ DATA

16

21U-98-11120

CHART¤ OIL

17

20N-98-41160

PLATE¤ OPERATING,ENGINE CONTROL

18

20N-98-41170

PLATE¤ OPERATING,BLADE

|18

20N-98-71530

PLATE¤ OPERATING,POWER TILT MECH.ANGLE BLADE

19

21U-98-11320

PLATE¤ STRIPE

20

21U-98-11235

PLATE¤ MARK,PC28UU

21

21U-98-11285

PLATE¤ STRIPE

22

09667-00100

PLATE¤ SAFETY,ENGINE COVER

23

21U-98-11255

PLATE¤ MARK,KOMATSU

24

21U-98-11265

PLATE¤ MARK,KOMATSU

25

21U-98-11275

PLATE¤ STRIPE

26

21U-98-11295

PLATE¤ STRIPE

27

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|27

04418-13060

SCREW

28

20P-98-11370

PLATE¤ CAUTION,TRAVELING ON SLOPE

29

20P-98-11210

PLATE¤ CAUTION,TRACK LOADING

30

09685-00001

PLATE¤ OPERATING,WORK EQUIPMENT LOCK LEVER

31

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

32

20R-98-24130

PLATE¤ OPERATING,(QUICK SHIFT)

33

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

34

20C-98-11360

PLATE¤ MARK,WORK EQUIPMENT MATCH MARK
