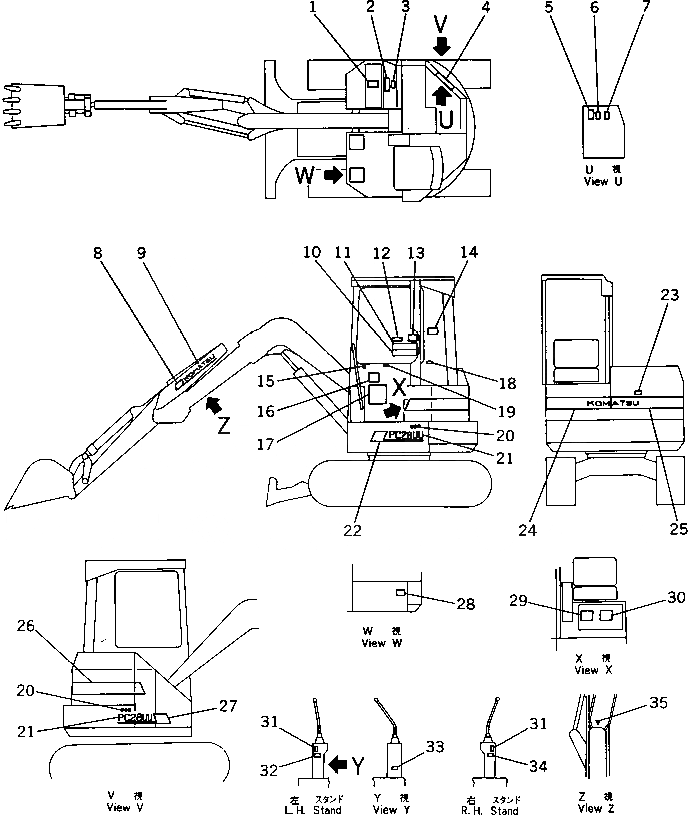

Запчасти Komatsu PC28UU-1 МАРКИРОВКА (ДЛЯ НАВЕСА) (ЯПОН.)(№-) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20M-98-62210

PLATE¤ CAUTION,FUEL

|1

20N-98-41180

PLATE¤ INSTRUCTION,FUEL

2

20N-98-41190

PLATE¤ INSTRUCTION,HYDRAULIC OIL

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

20R-98-21130

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

5

09650-01103

PLATE¤ INSTRUCTION,RADIATOR WATER LEVEL

6

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

7

20N-98-21290

PLATE¤ CAUTION,FUEL FILTER

8

21U-98-11310

PLATE¤ STRIPE

9

09690-50355

PLATE¤ MARK,KOMATSU

10

21U-98-11160

PLATE¤ OPERATING,ISO PATTERN

11

21U-98-11150

PLATE¤ OPERATING,KOMATSU PATTERN

12

20M-98-34110

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

13

20C-98-11320

PLATE¤ CAUTION,BOOM OFFSET

|13

20U-00-11150

PLATE¤ CAUTION,BOOM OFFSET

14

09132-00100

PLATE¤ SAFETY,STARTING AND AFTER OPERATING

15

20N-98-41150

PLATE¤ OPERATING,SWING LOCK

16

21U-98-11130

PLATE¤ DATA

17

21U-98-11120

CHART¤ OIL

18

20N-98-41160

PLATE¤ OPERATING,ENGINE CONTROL

19

20N-98-41170

PLATE¤ OPERATING,BLADE

20

09694-50100

PLATE¤ MARK,SYMBOL

21

21U-98-11231

PLATE¤ MARK,PC28UU

22

21U-98-11280

PLATE¤ STRIPE

23

09667-00100

PLATE¤ SAFETY,ENGINE COVER

24

21U-98-11250

PLATE¤ MARK,KOMATSU

25

21U-98-11260

PLATE¤ MARK,KOMATSU

26

21U-98-11270

PLATE¤ STRIPE

27

21U-98-11290

PLATE¤ STRIPE

28

09601-00835

PLATE¤ NAME,(LIMITED SUPPLY)

|28

04418-13060

SCREW

29

20P-98-11370

PLATE¤ CAUTION,TRAVELING ON SLOPE

30

20P-98-11210

PLATE¤ CAUTION,TRACK LOADING

31

09685-00001

PLATE¤ OPERATING,WORK EQUIPMENT LOCK LEVER

32

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

33

20R-98-24130

PLATE¤ OPERATING,(QUICK SHIFT)

34

09173-00100

PLATE¤ SAFETY,INSPECTION AND MAINTENANCE

35

20C-98-11360

PLATE¤ MARK,WORK EQUIPMENT MATCH MARK

|35

20U-00-11160

PLATE¤ MARK,WORK EQUIPMENT MATCH MARK
