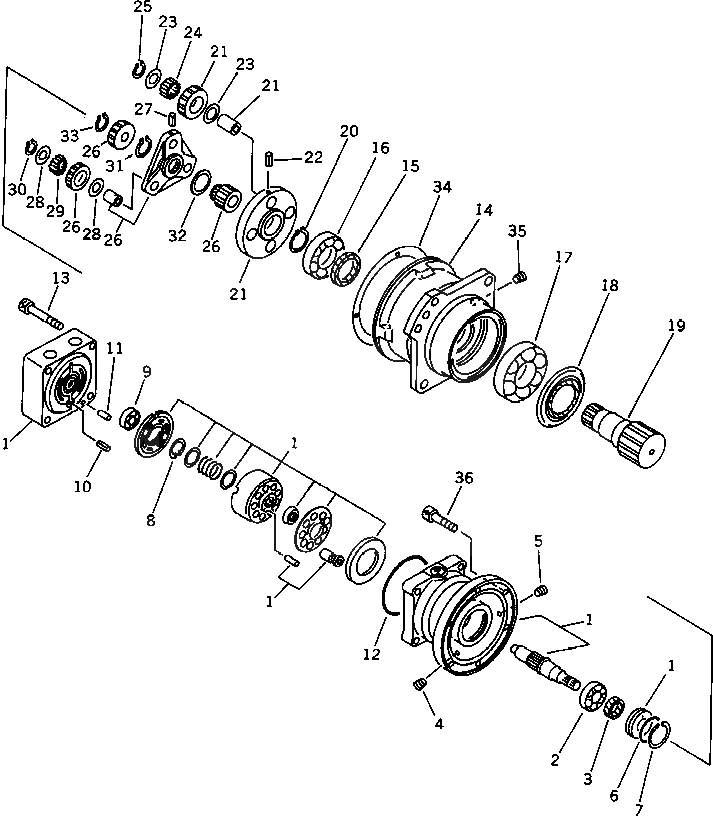

Запчасти Komatsu PC28UU-1 МОТОР ПОВОРОТА(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

21U-60-17100

SWING MOTOR ASS'Y

1

21U-60-17120

MOTOR ASS'Y

2

06000-06304

BEARING

3

20P-60-16920

SEAL,OIL

4

20M-60-25370

PLUG

5

20N-60-31650

PLUG

6

20P-60-16910

O-RING

7

04065-05220

RING,SNAP

8

04065-02812

RING,SNAP

9

06030-06201

BEARING

10

04025-00512

PIN,SPRING

11

20W-60-12780

PIN

12

07000-12095

O-RING

13

01252-41035

BOLT

14

21U-60-17110

REDUCTION GEAR A.

15

20P-60-16860

SEAL,OIL

16

06000-06307

BEARING

17

20P-60-16790

BEARING

18

20P-60-16760

SEAL,RING

19

21U-60-17620

SHAFT,PINION

20

04064-03515

RING,SNAP

21

20P-60-16700

CARRIER ASS'Y

22

04025-00416

PIN,SPRING

23

20P-60-16750

WASHER,THRUST

24

20P-60-16740

NEEDLE

25

04064-01510

RING,SNAP

26

20P-60-16800

CARRIER ASS'Y

27

04025-00416

PIN,SPRING

28

20P-60-16750

WASHER,THRUST

29

20P-60-16850

NEEDLE

30

04064-01510

RING,SNAP

31

20W-60-12380

RING,SNAP

32

20P-60-16780

COLLAR,THRUST

33

04064-01710

RING,SNAP

34

20P-60-16770

PACKING,SEAL

35

20P-60-16870

PLUG

36

01252-40825

BOLT
