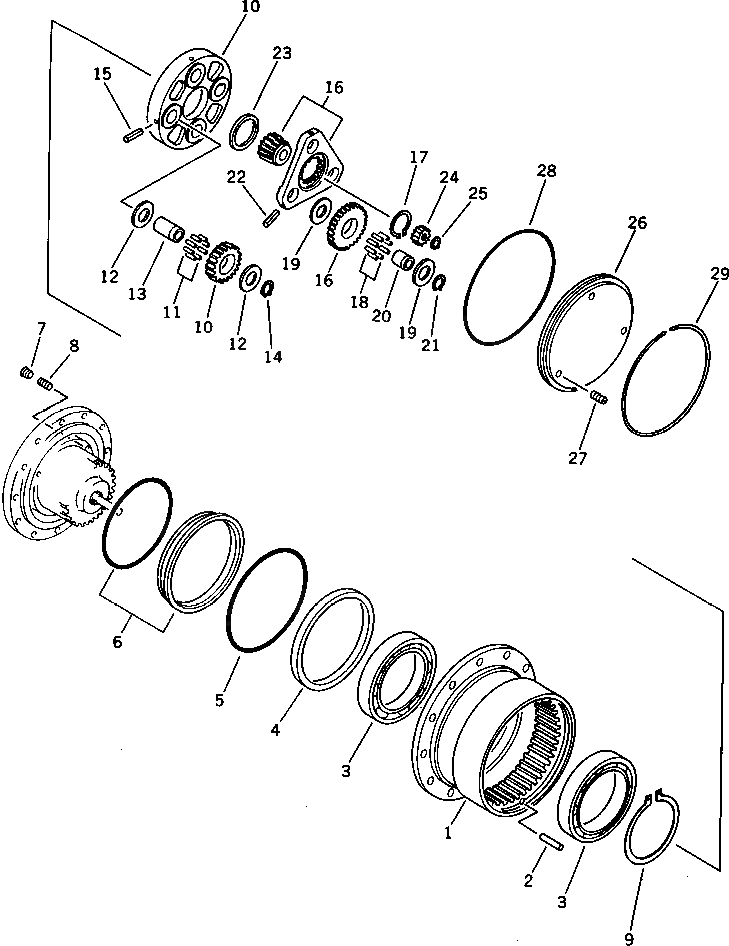

Запчасти Komatsu PC28UU-1 МОТОР ХОДА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

20N-60-41205

TRAVEL MOTOR ASS'Y

1

20N-60-31300

BODY ASS'Y

2

20N-60-31660

PIN

3

20N-60-31670

BEARING

4

20N-60-31330

RING,SEAL

5

20N-60-31680

O-RING

6

20N-60-31690

FLOATING SEAL ASS'Y

7

07043-00211

PLUG

8

20N-60-31350

COLLAR,THRUST

9

04070-00105

RING,SNAP

10

20N-60-41405

CARRIER ASS'Y

|11

20N-60-00200

CAGE SUB ASS'Y

11

20N-60-41715

CAGE,NEEDLE

12

20N-60-31720

THRUST WASHER,THRUST

13

20N-60-31310

PIN

14

04064-02512

RING,SNAP

15

04025-00420

PIN,SPRING

16

20N-60-41505

CARRIER SUB ASS'Y

17

04064-03515

RING,SNAP

|18

20N-60-00210

BEARING ASS'Y

18

20N-60-41755

BEARING,NEEDLE

19

20N-60-31720

THRUST WASHER,THRUST

20

20N-60-31320

PIN

21

04064-02512

RING,SNAP

22

04025-00420

PIN,SPRING

23

20N-60-31360

COLLAR,THRUST

24

20N-60-31730

GEAR

25

20N-60-31740

RING,SNAP

26

20N-60-31760

COVER

27

07043-00312

PLUG

28

20N-60-31770

O-RING

29

20N-60-31340

RING,SNAP
