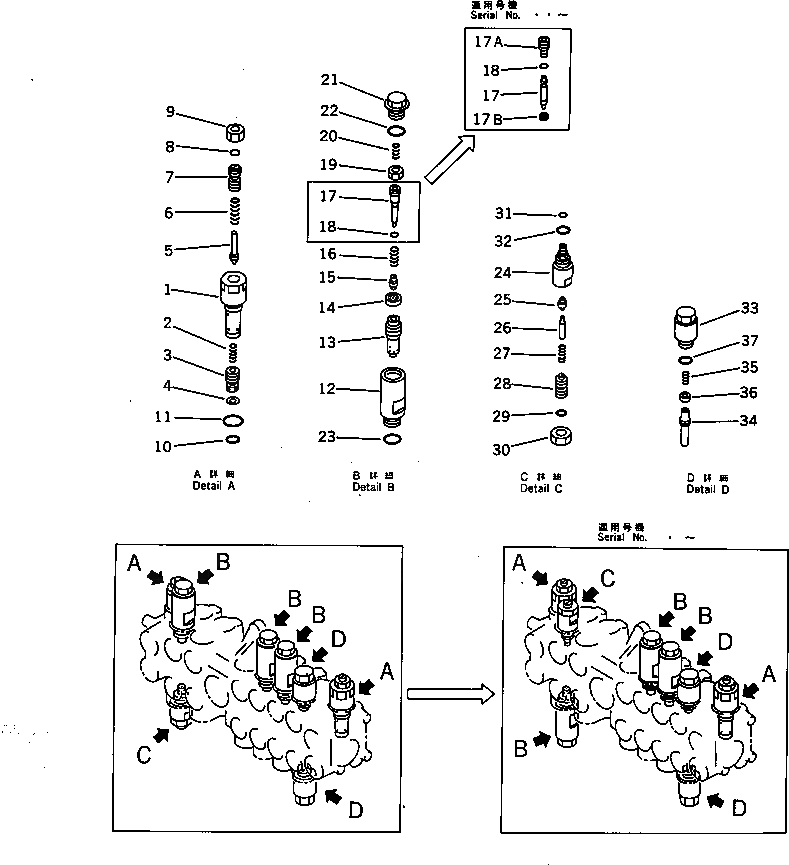

Запчасти Komatsu PC28UU-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/) (6-СЕКЦИОНН.)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
709-36-12102
VALVE ASS'Y
|$1
709-36-12101
VALVE ASS'Y
|$2
709-36-12100
VALVE ASS'Y
|$4
700-27-56000
VALVE ASS'Y,RELIEF
1
SLEEVE
2
700-20-51430
SPRING
3
VALVE
4
700-20-51240
RING
5
700-80-61190
POPPET
6
700-20-51350
SPRING
7
700-20-51340
SCREW
8
07000-02011
O-RING
9
01583-11408
NUT
10
700-22-11410
O-RING
11
07002-02434
O-RING
|$16
709-30-64500
VALVE ASS'Y,SUCTION AND SAFETY
|$17
709-30-62400
VALVE ASS'Y,SUCTION AND SAFETY
12
709-30-62110
SLEEVE
13
VALVE
13
VALVE
14
SEAL
15
POPPET
15
POPPET
16
SPRING
17
PISTON
17
PISTON
17A
SCREW
17B
SEAL
18
O-RING
19
NUT
20
700-20-62170
SPRING
21
709-30-62150
PLUG
22
07002-12034
O-RING
23
07002-02034
O-RING
|$35
709-30-65400
VALVE ASS'Y,SAFETY
24
SLEEVE
25
POPPET
25
POPPET
26
PISTON
27
SPRING
28
SCREW
29
O-RING
30
NUT
31
709-32-11840
O-RING
32
07002-02034
O-RING
|$46
709-30-61100
VALVE ASS'Y,SUCTION
33
709-30-61110
SLEEVE
34
VALVE
35
700-20-62170
SPRING
36
SEAL
37
07002-02034
O-RING
Выбрано товаров: 51
