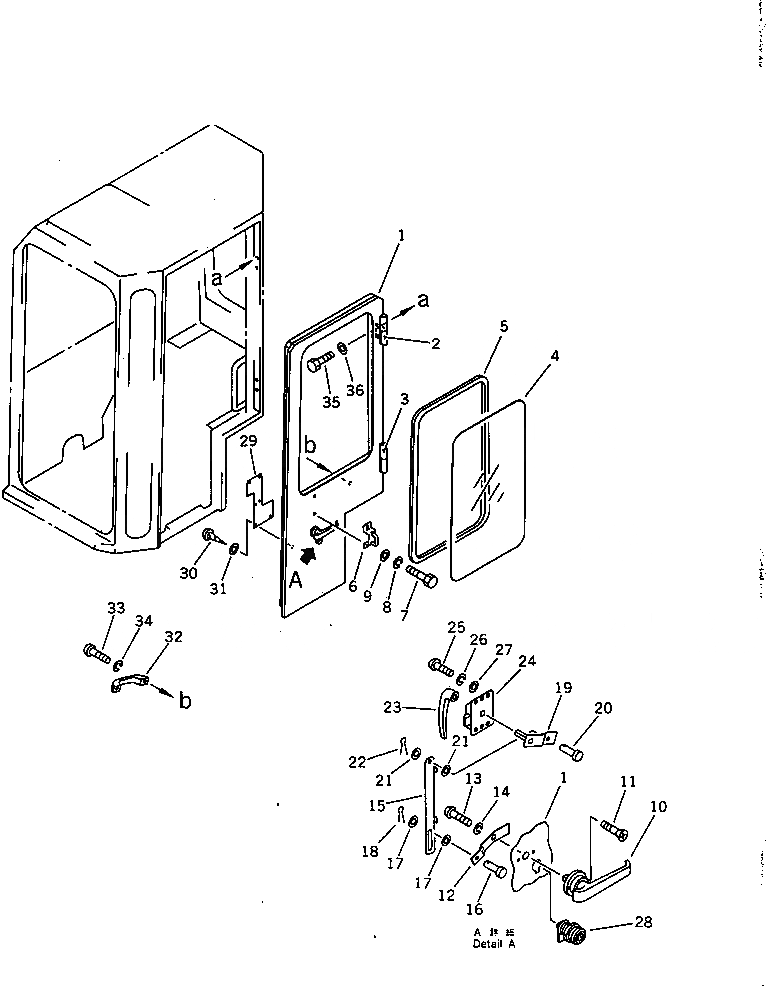

Запчасти Komatsu PC28UU-1 КАБИНА (/) (ДВЕРЬ) ЧАСТИ КОРПУСА

|$0

21U-54-17105

OPERATOR'S CAB ASS'Y

|$1

21U-54-17100

OPERATOR'S CAB ASS'Y

1

21U-54-17315

DOOR

1

21U-54-17310

DOOR

2

21U-54-17860

HINGE (WELDED)

3

21U-54-17870

HINGE (WELDED)

4

21U-54-17330

GLASS

5

21U-54-17340

STRIP,WEATHER

6

21U-54-17320

BRACKET

7

01010-50825

BOLT

8

01602-20825

WASHER,SPRING

9

01643-30823

WASHER

10

21U-54-17350

HANDLE

11

01224-40516

SCREW

12

21U-54-17360

BRACKET

13

01220-40408

SCREW

14

01601-20410

WASHER,SPRING

15

21U-54-17380

BRACKET

16

04205-10616

PIN

17

01641-20608

WASHER

18

04050-11612

PIN,COTTER

19

21U-54-17370

BRACKET

20

04205-10616

PIN

21

01641-20608

WASHER

22

04050-11612

PIN,COTTER

23

09454-00011

HANDLE

24

20T-54-25320

LOCK

25

01220-40612

SCREW

26

01602-20619

WASHER,SPRING

27

01641-20608

WASHER

28

21U-54-17390

LOCK ASS'Y

29

21U-54-17725

COVER

29

21U-54-17720

COVER

30

01370-00412

SCREW

31

01641-20405

WASHER

32

20N-54-39980

GRIP

33

01220-40512

SCREW

34

01601-20513

WASHER,SPRING

35

01010-50825

BOLT

36

01643-30823

WASHER
