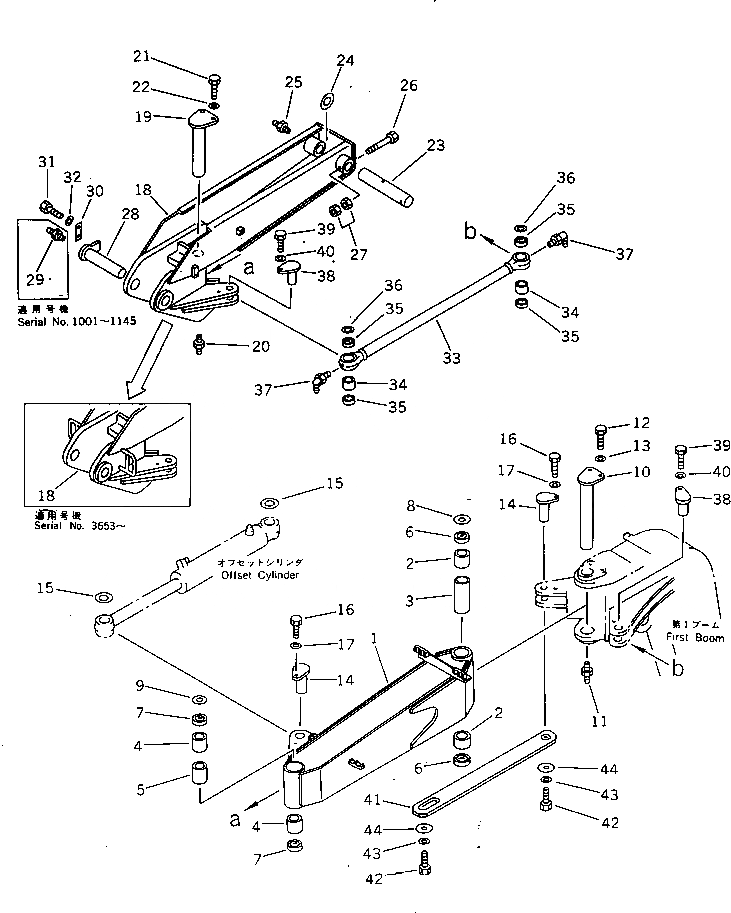

Запчасти Komatsu PC28UU-1 2 И 3-Я СТРЕЛА РАБОЧЕЕ ОБОРУДОВАНИЕ

1

21U-70-00020

BOOM ASS'Y,2ND

1

BOOM,2ND

2

07143-10505

BUSHING

3

21U-70-11280

COLLAR

4

07143-10405

BUSHING

5

21U-70-11290

COLLAR

6

07145-00050

SEAL,DUST

7

07145-00045

SEAL,DUST

8

21U-70-11720

SPACER, 1.0MM

8

201-70-23140

SPACER, 1.0MM

9

21U-70-11730

SPACER, 1.0MM

9

20T-70-19130

SPACER, 1.0MM

10

21U-70-11161

PIN

11

07020-00000

FITTING,GREASE

12

01010-51225

BOLT

13

01643-21232

WASHER

14

21U-70-11250

PIN

15

20N-70-41270

SPACER, 1.0MM

16

01010-51225

BOLT

17

01643-31232

WASHER

18

21U-70-11315

BOOM,3RD

18

21U-70-11312

BOOM,3RD

18

21U-70-11311

BOOM,3RD

19

21U-70-11351

PIN

20

07020-00000

FITTING,GREASE

21

01010-51225

BOLT

22

01643-31232

WASHER

23

21U-70-11360

PIN

24

21U-70-11740

SPACER, 1.0MM

24

20R-70-11260

SPACER, 1.0MM

25

07020-00000

FITTING,GREASE

26

01010-51285

BOLT

27

01580-11210

NUT

28

20S-70-21221

PIN

28

20S-70-21220

PIN

29

07020-00000

FITTING,GREASE

30

20R-70-11250

PLATE

31

01010-51225

BOLT

32

01643-31232

WASHER

|$39

21U-70-00030

ROD ASS'Y

33

ROD

34

07144-10302

BUSHING

35

07145-00030

SEAL,DUST

36

20N-70-11280

SPACER, 1.0MM

37

07020-00090

FITTING,GREASE

38

21U-70-11450

PIN

39

01010-51225

BOLT

40

01643-31232

WASHER

41

21U-70-11510

PLATE,LOCK

42

01010-51225

BOLT

43

01643-31232

WASHER

44

FF7814-01150

SPACER
