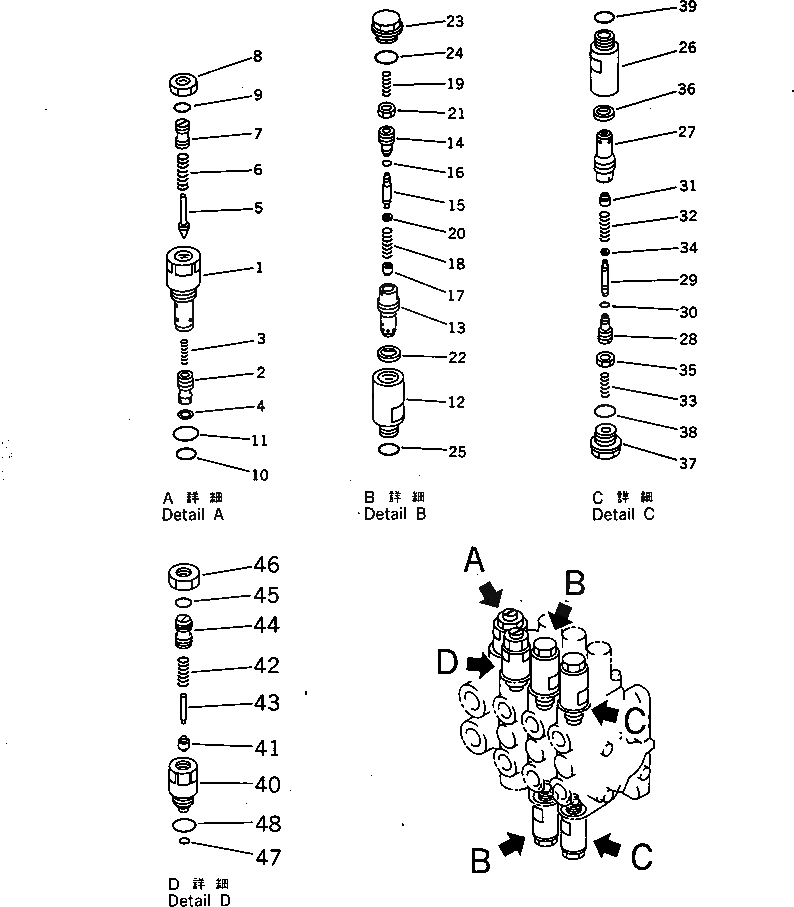

Запчасти Komatsu PC28UU-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (/) (3-Х СЕКЦИОНН.) (ДЛЯ НАКЛОНЯЕМ. МЕХАНИЧ. ОТВАЛ С ИЗМ. УГЛОМ ПОВОРОТА)(№-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-33-12800

VALVE ASS'Y

|$2

700-22-51001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|$14

709-30-62601

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

14

SCREW

15

PISTON

16

O-RING

17

POPPET

18

SPRING

19

700-20-62170

SPRING

20

SEAL

21

NUT

22

SEAL

23

709-30-62150

PLUG

24

07002-12034

O-RING

25

07002-02034

O-RING

|$29

709-30-62101

VALVE ASS'Y,SUCTION AND SAFETY (C1)

|$30

709-30-62301

VALVE ASS'Y,SUCTION AND SAFETY (C2)

26

709-30-62110

SLEEVE

27

VALVE

28

SCREW

29

PISTON

30

O-RING

31

POPPET

32

SPRING

33

700-20-62170

SPRING

34

SEAL

35

NUT

36

SEAL

37

709-30-62150

PLUG

38

07002-12034

O-RING

39

07002-02034

O-RING

|$45

709-30-65300

VALVE ASS'Y,SUCTION AND SAFETY

40

SLEEVE

41

POPPET

42

SPRING

43

PISTON

44

SCREW

45

O-RING

46

NUT

47

709-32-11840

O-RING

48

07002-02034

O-RING
