/ / / / / / GRASS CUTTER (CUTTER ВАЛ)

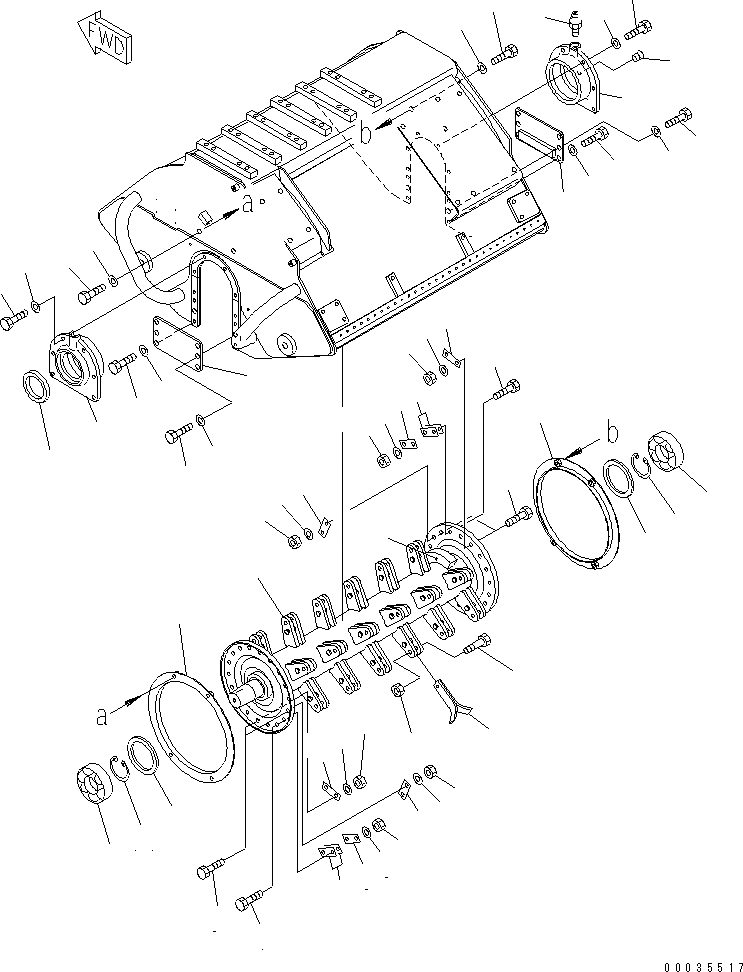

Запчасти Komatsu PC27R-8 GRASS CUTTER (CUTTER ВАЛ) РАБОЧЕЕ ОБОРУДОВАНИЕ
1
2
3
4
5
5
5
5
6
6
6
6
7
7
8
8
9
9
9
9
9
9
10
10
10
10
10
10
11
12
13
14
15
16
17
18
19
20
21
22
23
23
24
24
25
25
26
26
27
27
28
28
28
28
29
29
30
30
31
31
|$1
20P-880-1502
CUTTER ASS'Y
|$3
20P-880-1061
SHAFT ASS'Y
1
20P-880-1570
SHAFT
2
FF3819-70123
CUTTER
3
FF3819-70131
BOLT
4
01598-01011
NUT
5
FF3819-70810
WEIGHT
6
FF3819-70820
WEIGHT
7
01010-81030
BOLT
8
01010-81020
BOLT
9
01643-31032
WASHER
10
01580-11008
NUT
11
FF8741-70830
WEIGHT
12
20P-880-1151
CASE
13
06030-06310
BEARING
14
04065-01104
RING
15
FF3819-70170
SEAL
16
FF3819-70180
SEAL
17
20P-880-1260
CASE
17
FF3819-70191
CASE
18
06030-06310
BEARING
19
04065-01104
RING
20
FF3819-70170
SEAL
21
07020-00001
FITTING,GREASE
22
07043-70415
PLUG
23
01010-81030
BOLT
24
01643-31032
WASHER
25
FF3819-70250
COVER
25
01580-01008
NUT
26
01010-81025
BOLT
27
01010-81035
BOLT
28
01643-31032
WASHER
29
20P-880-1270
PLATE
29
FF3819-70260
PLATE
30
01010-81025
BOLT
31
01643-31032
WASHER
