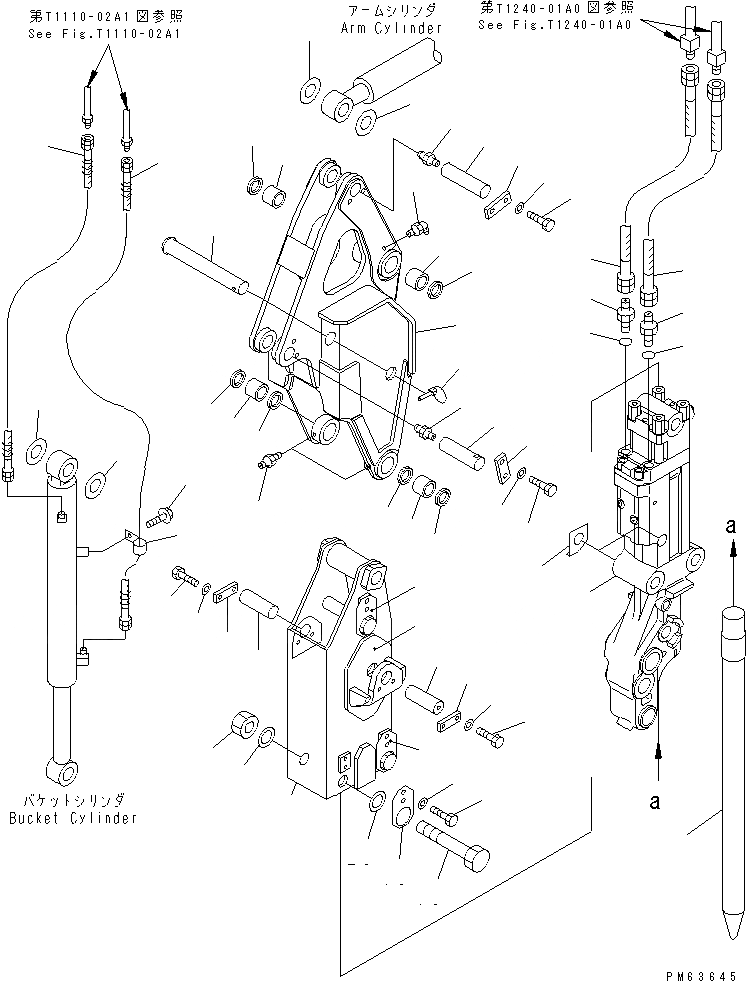

Запчасти Komatsu PC27R-8 РУКОЯТЬ (QUICK ГИДРОМОЛОТ РУКОЯТЬ СПЕЦ-Я.) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20P-970-8104

ARM ASS'Y,1ST

1

ARM

2

20P-70-81620

BUSHING

3

20P-71-81130

BUSHING

4

07020-00000

FITTING,GREASE

5

07020-00675

FITTING,GREASE

6

07145-00035

SEAL,DUST

7

20P-970-8124

ARM,2ND

8

20P-970-8151

BRACKET,L.H. (WELDED)

|8

20P-970-8161

BRACKET,R.H. (WELDED)

9

20P-970-8131

PIN

10

04082-00212

LOCK

11

01010-81225

BOLT

12

01643-31232

WASHER

13

20P-970-8142

PIN

14

426-46-12280

PIN,LINCH

15

20P-970-8202

BREAKER ASS'Y

16

21U-970-2850

PLATE

17

01010-81025

BOLT

18

01643-31032

WASHER

19

20P-970-8451

BOLT

20

20P-970-8170

WASHER

21

01580-12722

NUT

22

20P-970-7920

SHIM¤ 1.0MM

|22

20P-970-7930

SHIM¤ 2.0MM

|22

20P-970-7940

SHIM¤ 3.0MM

23

20P-970-8831

HOSE

24

20T-62-71150

UNION

25

07002-11823

O-RING

26

20C-970-2160

CHISEL

27

20P-970-8230

PIN

28

07020-00000

FITTING,GREASE

29

20P-970-8220

PIN

30

07020-00000

FITTING,GREASE

31

04082-00212

LOCK

32

01010-81230

BOLT

33

01643-31232

WASHER

34

20N-70-41270

SPACER¤ 1.0MM

35

20P-62-83130

HOSE

36

20P-62-83120

HOSE

37

04434-52210

CLIP

38

01435-01020

BOLT
