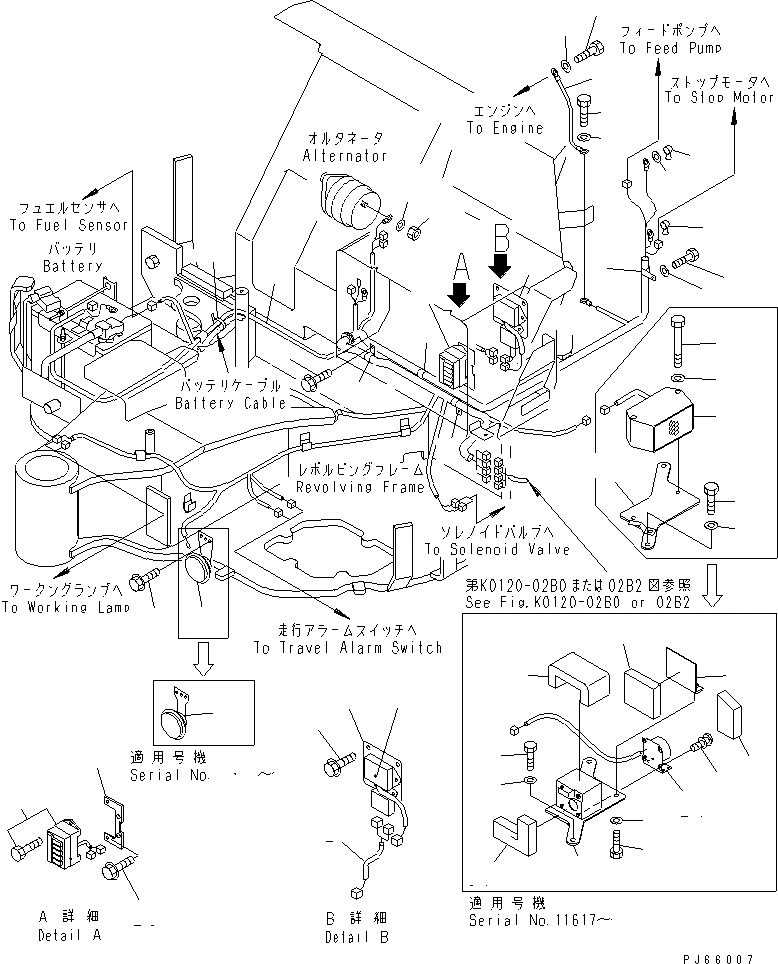

Запчасти Komatsu PC27MRX-1 ОСНОВН. ЭЛЕКТРОПРОВОДКА (С СИГНАЛ ХОДА) ЭЛЕКТРИКА

1

21U-06-31350

WIRING HARNESS

2

21U-06-31391

WIRING HARNESS

3

22L-06-18230

WIRING HARNESS

3

22L-06-18240

PLATE

3

20P-06-71150

BOX,FUSE

3

201-06-61240

FUSE, 30A

3

22W-06-13160

FUSE, 20A

4

22L-06-17112

WIRING HARNESS

4

22L-06-17111

WIRING HARNESS

4

22L-06-17110

WIRING HARNESS

4

20T-06-81230

FUSIBLE LINK

4

08020-00000

DIODE

5

04434-51712

CLIP

6

01010-81020

BOLT

7

01643-31032

WASHER

8

08036-02514

CLIP

9

01435-01020

BOLT

10

20N-06-71430

WIRE

11

01010-81020

BOLT

12

01643-31032

WASHER

13

08034-20536

BAND

14

20C-06-31730

HORN

14

08160-61200

HORN

15

01435-00610

BOLT

16

08038-10519

CAP

17

22L-06-11210

BRACKET

18

01435-00812

BOLT

19

21U-06-31190

BRACKET

20

01435-00812

BOLT

21

01640-20408

WASHER

22

01580-10504

NUT

23

01640-20508

WASHER

24

21S-06-2A111

ALARM

24

22L-06-17120

BUZZER

25

01023-10410

SCREW

25

22L-06-18330

BOLT

26

01640-20816

WASHER

27

22L-06-17210

BRACKET

27

22L-06-17130

BRACKET

28

22L-06-17220

BRACKET

29

01010-80820

BOLT

30

01643-30823

WASHER

31

22L-06-17230

SHEET

32

22L-06-17240

SHEET

33

22L-06-17250

SHEET

34

22L-06-17260

SHEET

35

01010-81025

BOLT

36

01643-31032

WASHER
