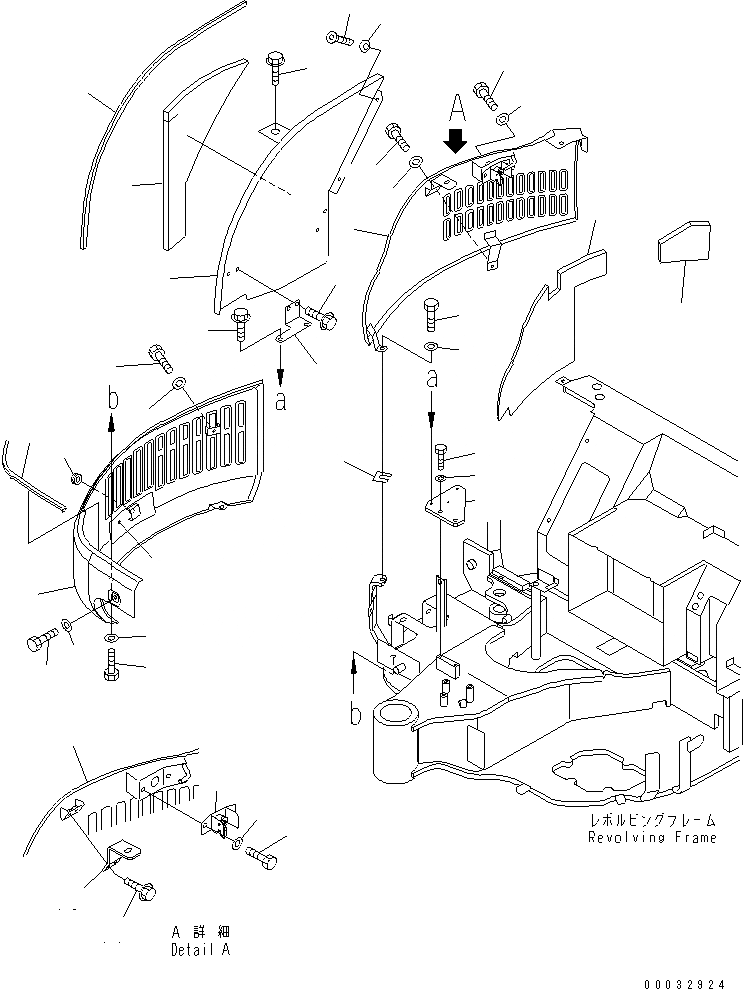

Запчасти Komatsu PC27MRX-1 БОКОВ. КРЫШКА (ПРАВ.) (ДЛЯ НАВЕСА)(№.-) ЧАСТИ КОРПУСА

|$1

22L-54-11401

COVER ASS'Y,R.H.

1

22L-54-11414

COVER

2

21U-54-31560

COVER ASS'Y (WELDED)

2

20N-54-71440

HINGE (WELDED)

2

FF8733-54240

STOPPER (WELDED)

3

21U-54-31431

SEAL

4

08037-02512

GROMMET

5

01010-81020

BOLT

6

01643-31032

WASHER

|$11

22L-54-11502

COVER ASS'Y,R.H.

7

22L-54-11512

COVER

8

21U-54-31523

SHEET

9

21U-54-31550

SHEET

10

22F-54-11950

BRACKET

11

01435-00816

BOLT

12

21U-54-31492

LOCK ASS'Y

13

01010-81016

BOLT

14

01643-31032

WASHER

15

01010-81020

BOLT

16

01643-31032

WASHER

17

01010-81025

BOLT

18

01643-31032

WASHER

19

22L-54-11422

COVER

20

22L-54-11441

BRACKET

21

21U-54-31330

SHEET

22

21U-54-31473

SEAL

23

01435-01016

BOLT

24

20Y-54-14170

SCREW

25

22L-54-15460

WASHER

26

FF8733-54250

SHIM, 1.0MM

26

FF8733-54260

SHIM, 2.0MM

27

22L-46-11480

PLATE

28

01010-81030

BOLT

29

01643-31032

WASHER
