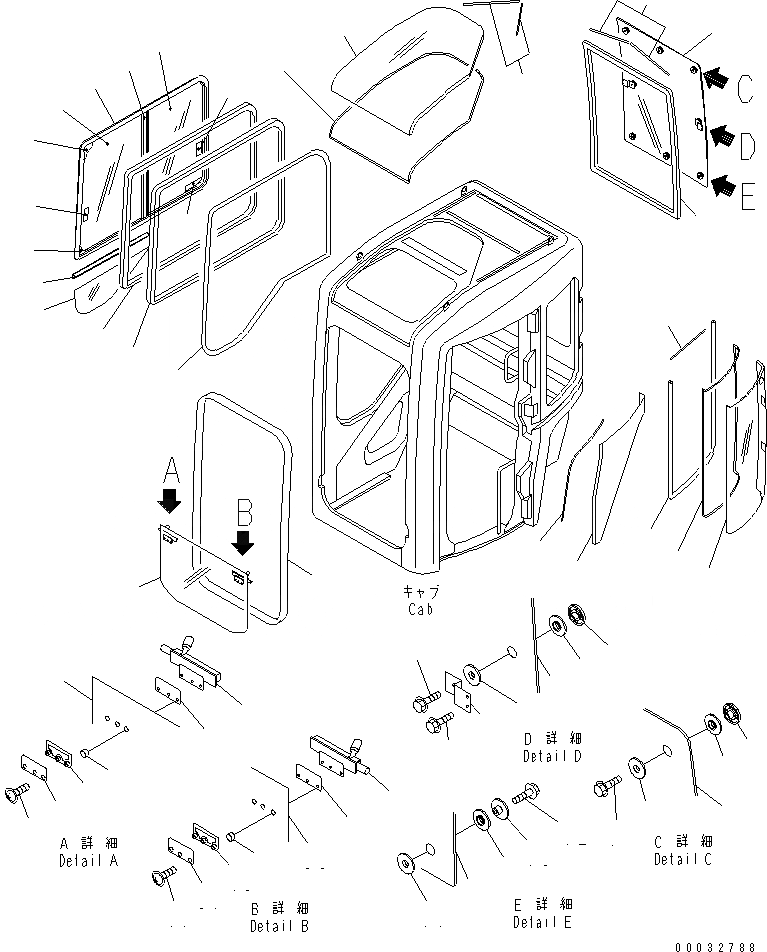

Запчасти Komatsu PC27MRX-1 КАБИНА (/) (ОКНА) (ДЛЯ СЕВ. АМЕРИКИ) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$3

22L-54-00033

CAB ASS'Y

|$4

22L-54-00030

CAB ASS'Y

1

22M-54-14730

WINDOW,L.H.

2

22M-54-14820

DAM

3

22M-54-14830

DAM

4

22M-54-14791

GLASS,REAR

5

20T-54-74870

NUT

6

20T-54-74880

GROMMET

7

01435-40612

BOLT

8

01435-40610

BOLT

9

22F-54-14810

SEAL

10

22K-54-14830

BOSS

11

20T-54-74880

GROMMET

12

01435-40625

BOLT

13

22M-54-14830

DAM

14

22K-54-14820

PLATE

15

01435-40608

BOLT

16

22M-54-14880

GLASS,R.H.

|$25

22M-54-14761

SASH ASS'Y

17

22M-54-16420

GLASS,REAR

18

22M-54-16430

GLASS,FRONT

19

FRAME

20

22M-54-16460

CHANNEL,INNER

21

22M-54-16470

CHANNEL,OUTER

22

22M-54-16490

SEAL

23

22M-54-16540

LOCK ASS'Y

24

21X-54-34190

RUBBER,STOPPER

25

21U-54-35880

RUBBER,STOPPER

26

22M-54-14780

WEATHER STRIP

27

22M-54-14870

WEATHER STRIP

28

22M-54-14770

PLATE,UPPER

29

22M-54-14850

DAM

30

22M-54-14830

DAM

31

22L-54-15691

COVER

32

20U-54-24981

DAM

33

22F-54-16510

GLASS,FRONT

34

22M-54-14560

LATCH,L.H.

35

22M-54-14570

LATCH,R.H.

36

20T-54-32780

PACKING

37

20T-54-32870

PACKING, 1.0MM

38

20T-54-32750

PACKING, 2.0MM

39

20T-54-32760

RETAINER

40

20T-54-32770

RETAINER

41

01023-20512

SCREW

42

205-54-71560

TRIM

43

22K-54-15920

SEAL

43

20U-54-24651

SEAL
