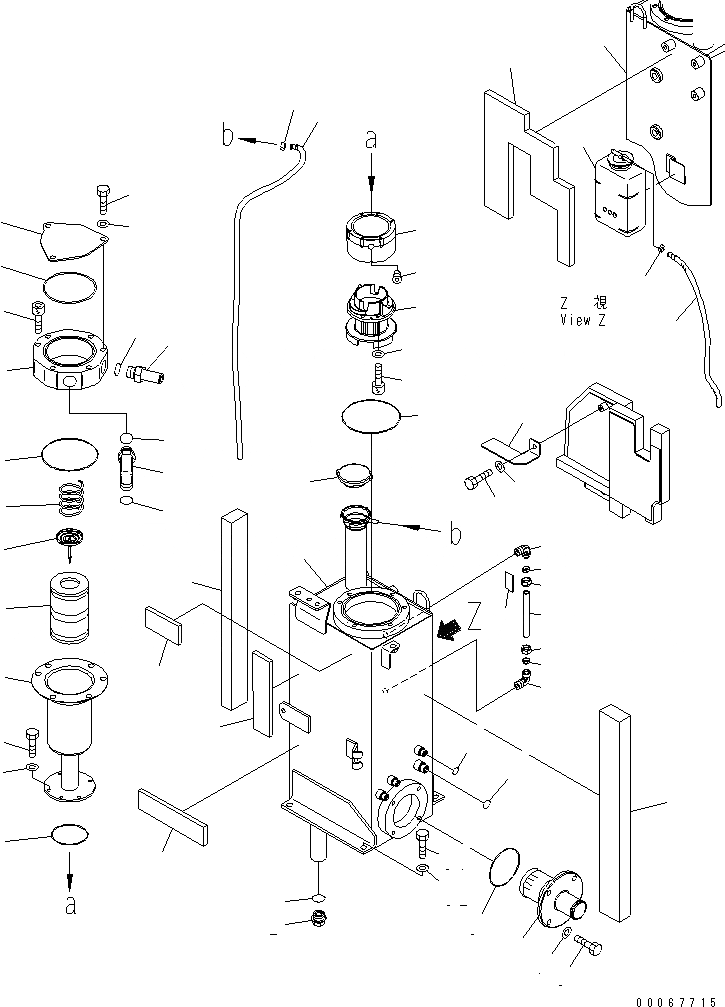

Запчасти Komatsu PC27MR-3 ГИДР. БАК.(№-) ГИДРАВЛИКА

1

22F-60-31211

TANK

2

07044-12412

PLUG

3

07002-12434

O-RING

4

21U-60-32121

STRAINER

5

07000-12085

O-RING

6

01010-81025

BOLT

7

01643-31032

WASHER

8

22F-60-31290

CAP ASS'Y

9

07270-00890

TUBE

10

07285-00095

CLIP

11

22L-60-22161

TUBE

|$15

203-60-31100

ELBOW ASS'Y

12

ELBOW

13

NUT

14

203-60-31250

SLEEVE

15

203-00-31120

PLATE, INSTRUCTION

16

22F-60-31241

PLATE

17

01010-81065

BOLT

18

01643-31032

WASHER

19

07000-12110

O-RING

20

22F-60-31220

FLANGE

21

01252-71060

BOLT

22

07000-12125

O-RING

23

22F-60-31250

SPRING

24

22L-60-22130

VALVE ASS'Y

25

22L-60-22120

ELEMENT

26

22F-60-31230

CASE

27

07000-12125

O-RING

|$35

8A30-60-1101

CYCLONE ASS'Y

28

BLOCK

29

CYCLONE

30

01252-70625

BOLT

31

01643-30623

WASHER

32

07043-70211

PLUG

33

07000-12080

O-RING

34

01010-80620

BOLT

35

01643-30623

WASHER

36

20M-62-82271

NIPPLE

37

07002-12434

O-RING

38

02782-10524

ELBOW

39

07002-12434

O-RING

40

02896-11015

O-RING

41

02896-11008

O-RING

42

02896-11009

O-RING

43

22F-60-31260

SHEET

44

22L-60-22180

CUSHION

45

22K-60-22180

CUSHION

46

22F-60-31271

SHEET

47

22F-60-31281

SHEET

48

22J-03-25270

TANK ASS'Y

49

22F-03-31290

HOSE

50

07285-00085

CLIP

51

01010-81030

BOLT

52

01643-31032

WASHER

53

22F-60-32170

PLATE

54

01010-80816

BOLT

55

01643-30823

WASHER
