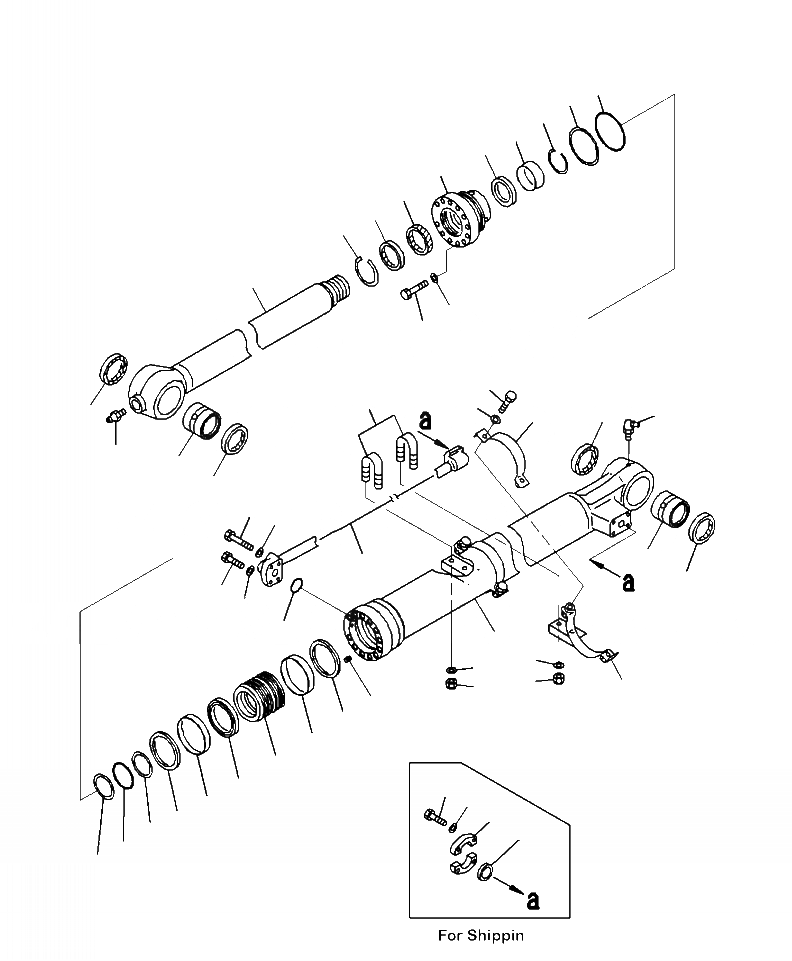

Запчасти Komatsu PC270LC-8 T-A ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

707-01-0H910

CYLINDER ASSEMBLY

1

707-13-14840

CYLINDER

2

707-76-80431

BUSHING

3

07145-00080

SEAL, DUST

4

707-58-10100

ROD, PISTON

5

707-76-80020

BUSHING

6

20Y-70-23230

SEAL

7

707-27-14690

CYLINDER HEAD

8

07179-13114

RING, SNAP

9

176-63-56170

SEAL, DUST

10

707-52-90780

BUSHING

11

707-51-10030

PACKING

12

07000-15130

O-RING

13

707-35-91420

RING, BACK-UP

14

707-51-10650

RING

15

707-75-10160

RING, SNAP

16

01010-81875

BOLT

17

707-41-11840

WASHER

18

707-36-14650

PISTON

19

707-44-14150

RING, PISTON

20

707-39-14110

RING, WEAR

21

707-44-14910

RING

22

07001-05090

RING, BACK-UP

23

07000-15090

O-RING

24

01310-01216

SCREW

25

07020-00000

FITTING, GREASE

26

07020-00000

FITTING, GREASE

27

707-86-67860

TUBE

28

07372-21060

BOLT

29

01643-51032

WASHER

30

07372-21045

BOLT

31

01643-51032

WASHER

32

07000-13030

O-RING

33

707-88-22680

BRACKET

34

707-88-21361

BAND

35

07372-21035

BOLT

36

01643-51032

WASHER

37

07283-32738

CLIP, PIPE

38

01597-01009

NUT

39

01643-31032

WASHER

40

707-88-33030

CAP

41

07371-30640

FLANGE, SPLIT

42

07372-21035

BOLT

43

01643-51032

WASHER

|$44

707-99-59020

SERVICE KIT, BUCKET CYLINDER
