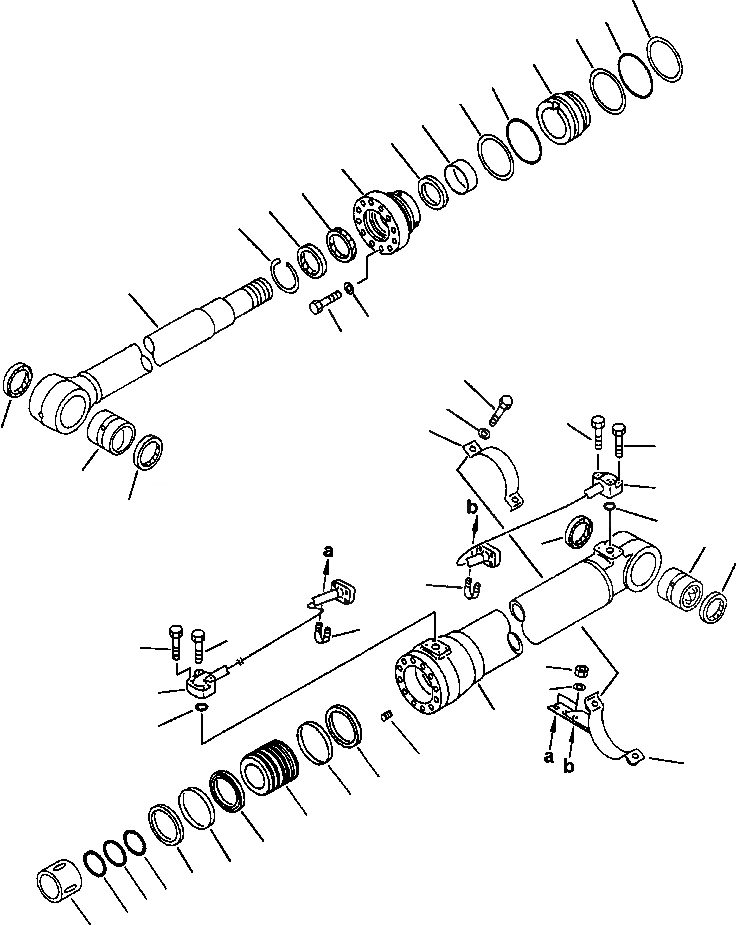

Запчасти Komatsu PC270LC-6LE FIG NO. T- ЦИЛИНДР СТРЕЛЫ РАБОЧЕЕ ОБОРУДОВАНИЕ

|$0

206-63-03450

BOOM CYLINDER ASSEMBLY, L.H

|$1

206-63-03460

BOOM CYLINDER ASSEMBLY, R.H

1

206-63-53740

CYLINDER

2

707-76-80410

BUSHING

3

07145-00080

SEAL, DUST

4

206-63-53720

ROD, PISTON

5

707-76-80220

BUSHING

6

07145-00080

SEAL, DUST

7

707-27-14920

HEAD, CYLINDER

8

07179-13114

RING, SNAP

9

176-63-56170

SEAL, DUST

10

707-52-90780

BUSHING

11

707-51-10030

PACKING, ROD

12

07000-15130

O-RING

13

707-35-91420

RING, BACK-UP

14

707-51-10630

RING, BUFFER

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-14410

PISTON

18

707-44-14180

RING, PISTON

19

707-39-14820

RING, WEAR

20

707-44-14910

RING

21

707-71-61050

PLUNGER

22

07000-15090

O-RING

23

07001-05090

RING, BACK-UP

24

01310-01216

SCREW

25

707-71-32890

COLLAR

26

707-35-91420

RING, BACK-UP

27

07000-15130

O-RING

28

206-63-53770

TUBE, L.H

|$30

206-63-53870

TUBE, R.H

29

206-63-54580

TUBE, L.H

|$32

206-63-54680

TUBE, R.H

30

01435-01055

BOLT

31

01435-01040

BOLT

32

07000-13030

O-RING

33

206-63-54590

BRACKET, L.H

|$37

206-63-54690

BRACKET, R.H

34

707-88-87680

BAND

35

01010-81035

BOLT

36

01643-51032

WASHER

37

07283-22738

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER

|$44

707-99-58310

SERVICE KIT, BOOM CYLINDER
