Запчасти Komatsu PC270LC-6LE FIG NO. H8-A ГИДРОЛИНИЯ ОСНОВН. ЛИНИЯ PPC - КЛАПАН ЛИНИИ PPCS ГИДРАВЛИКА

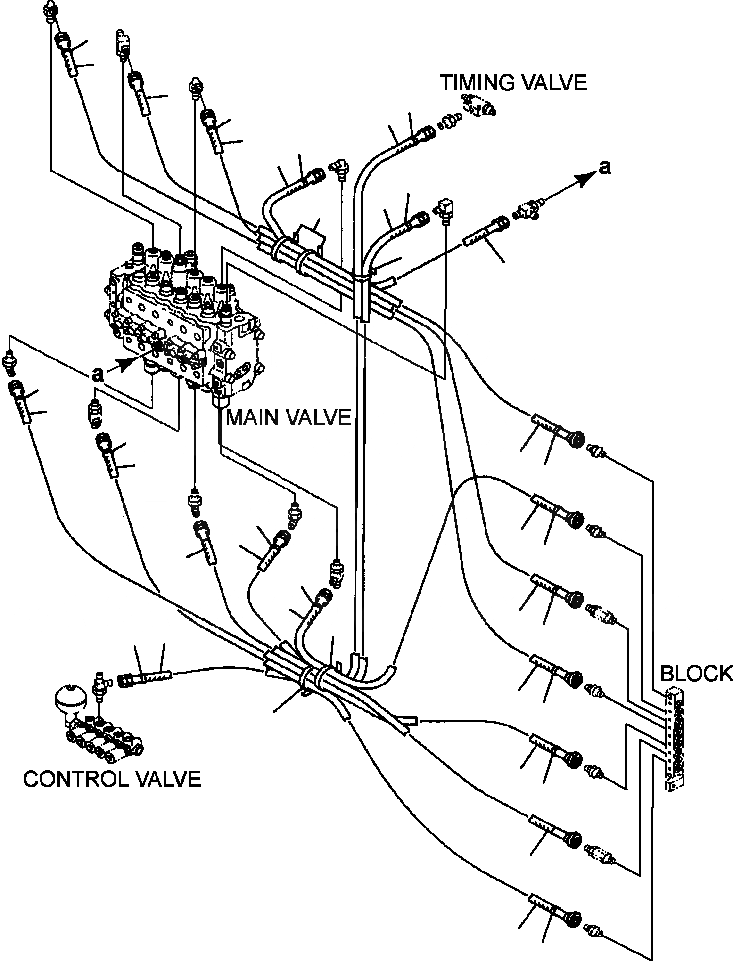

Схема запчастей Komatsu PC270LC-6LE - FIG NO. H8-A ГИДРОЛИНИЯ ОСНОВН. ЛИНИЯ PPC - КЛАПАН ЛИНИИ PPCS ГИДРАВЛИКА
7
4
1
15
9
5
2
6
3
14
13
8
19
1
16
12
18
3
11
6
15
9
11
17
10
17
11
2
19
5
4
7
19
12
16
10
11
18
14
13

Артикул

Название

Примечание

Количество

|$0

NSS

HOSE ASSEMBLY - S/N A83001 - A85000

|$1

20Y-62-27212

HOSE ASSEMBLY - S/N A85001 AND UP

1

203-62-52310

HOSE

2

203-62-62631

HOSE - S/N A83001 - A85000

2

203-62-62632

HOSE - S/N A85001 AND UP

3

20Y-62-22671

HOSE - S/N A83001 - A85000

3

20Y-62-22672

HOSE - S/N A85001 AND UP

4

20Y-62-22781

HOSE - S/N A83001 - A85000

4

20Y-62-22782

HOSE - S/N A85001 AND UP

5

20Y-62-22790

BAND, RED

6

20Y-62-22830

BAND, WHITE

7

20Y-62-22840

BAND, BLACK

8

08034-00536

BAND, WHITE

|$13

NSS

HOSE ASSEMBLY - S/N A83001 - A85000

|$14

20Y-62-27223

HOSE ASSEMBLY - S/N A85001 AND UP

9

20Y-62-22771

HOSE - S/N A83001 - A85000

9

20Y-62-22772

HOSE - S/N A85001 AND UP

10

20Y-62-22661

HOSE - S/N A83001 - A85000

10

20Y-62-22662

HOSE - S/N A85001 AND UP

11

20Y-62-22721

HOSE - S/N A83001 - A85000

11

20Y-62-22722

HOSE - S/N A85001 AND UP

12

20Y-62-23831

HOSE - S/N A83001 - A85000

12

20Y-62-23832

HOSE - S/N A85001 AND UP

13

20Y-62-52280

HOSE

14

20Y-62-22810

BAND, YELLOW

15

20Y-62-22820

BAND, BLUE

16

20Y-62-22830

BAND, WHITE

17

20Y-62-22850

BAND, GREEN

18

20Y-62-22860

BAND, BROWN

19

08034-00536

BAND, WHITE

Выбрано товаров: 30
