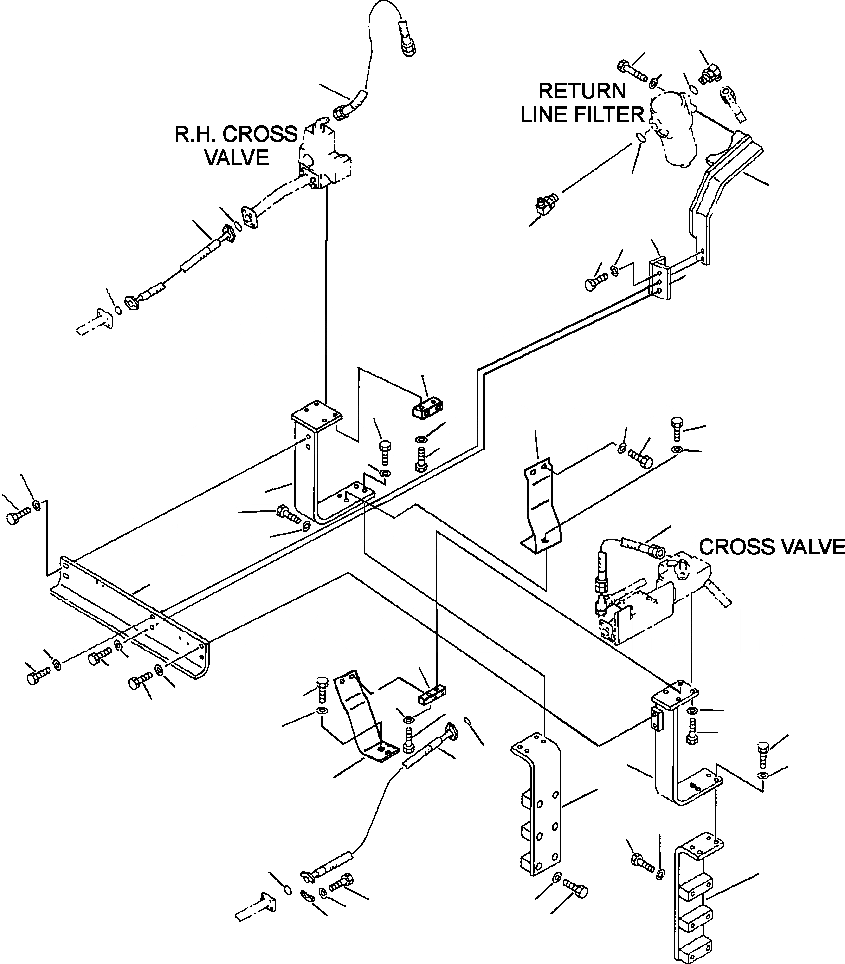

Запчасти Komatsu PC270LC-6LE FIG NO. H7- ГИДРОЛИНИЯ НАВЕСН. ОБОРУД ВОЗВРАТНАЯ ЛИНИЯДЛЯ SEVEN, EIGHT, И NINE СЕКЦ. ОСНОВН. КЛАПАНS ГИДРАВЛИКА

1

20Y-970-2240

NIPPLE

2

07002-12434

O-RING

3

20Y-62-25211

BRACKET, FILTER - S/N A83001 - A85000

3

20Y-62-25212

BRACKET, FILTER - S/N A85001 AND UP

4

01011-81210

BOLT - S/N A83001 - A85000

4

01011-81235

BOLT - S/N A85001 AND UP

5

01643-31232

WASHER

6

20Y-970-2240

NIPPLE

7

07002-12434

O-RING

8

01010-81650

BOLT

9

01643-31645

WASHER

10

07108-20604

HOSE

11

07102-21003

HOSE

12

07099-21012

HOSE

13

21T-09-11460

O-RING

14

07371-31049

FLANGE

15

07372-21035

BOLT

16

01643-51032

WASHER

17

206-62-65112

BRACKET

18

01010-81275

BOLT

19

01643-31232

WASHER

20

20Y-62-25182

BRACKET

21

01010-81660

BOLT

22

01643-31645

WASHER

23

01010-81240

BOLT

24

01643-31232

WASHER

25

206-62-65112

BRACKET

26

01010-81275

BOLT

27

01643-31232

WASHER

28

20Y-62-25192

BRACKET

29

01010-81660

BOLT

30

01643-31645

WASHER

31

01010-81240

BOLT

32

01643-31232

WASHER

33

20Y-62-25232

BRACKET

34

01010-81655

BOLT

35

01643-31645

WASHER

36

01010-81640

BOLT

37

01643-31645

WASHER

38

206-99-A1210

BRACKET, SPACER

39

01010-81665

BOLT

40

20Y-62-25950

BRACKET - S/N A85001 AND UP

41

20Y-62-25960

BRACKET - S/N A85001 AND UP

42

20Y-62-25970

PLATE - S/N A85001 AND UP

43

20Y-62-25980

PLATE - S/N A85001 AND UP

44

01010-81670

BOLT - S/N A85001 AND UP

45

01643-31645

WASHER - S/N A85001 AND UP

46

01010-81230

BOLT - S/N A85001 AND UP

47

01010-81260

BOLT - S/N A85001 AND UP

48

01643-31232

WASHER - S/N A85001 AND UP

N/I

20Y-62-25790

BRACKET

N/I

07283-32738

CLIP

N/I

01599-01011

NUT

N/I

01643-31032

WASHER
