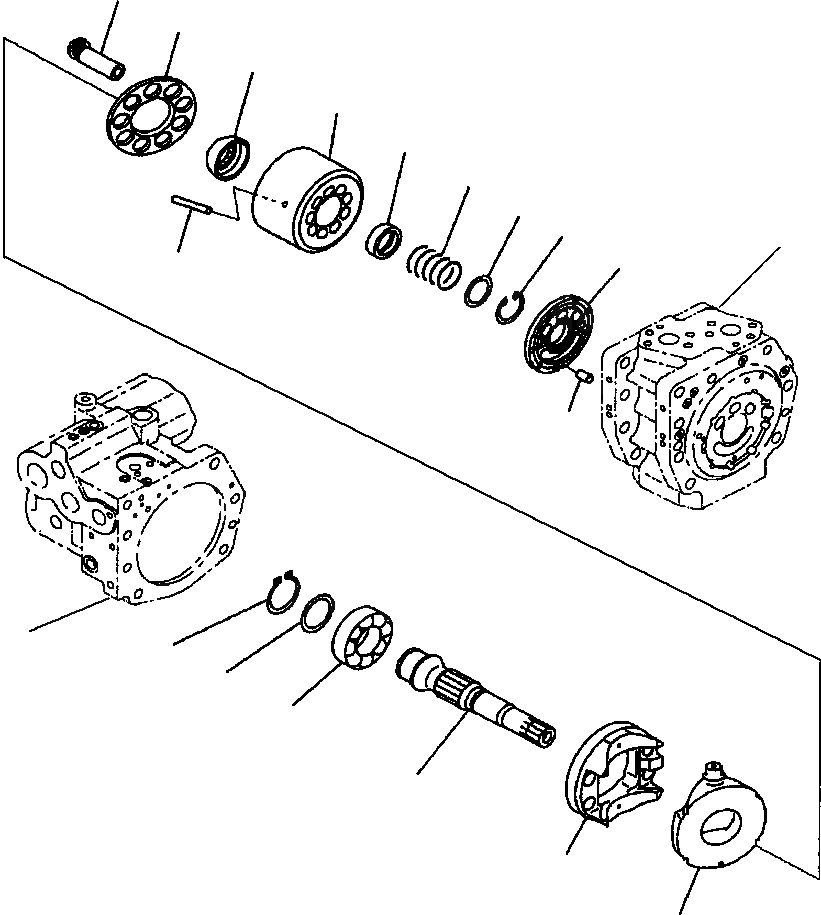

Запчасти Komatsu PC270LC-6LE FIG NO. H- ОСНОВН. НАСОС ЗАДН. НАСОС ASSEMBLY ГИДРАВЛИКА

1

708-2L-32130

SHAFT, REAR

2

708-2L-22150

BEARING

3

708-2E-05040

WASHER KIT

|$3

708-2E-12160

WASHER - 0.122 IN. (3.1 MM)

|$4

708-2E-12170

WASHER - 0.118 IN. (3.0 MM)

|$5

708-2E-12180

WASHER - 0.114 IN. (2.9 MM)

|$6

708-2E-12190

WASHER - 0.110 IN. (2.8 MM)

4

708-25-12790

RING, SNAP

|$8

708-2L-04151

BLOCK ASSEMBLY, REAR

5

NSS

BLOCK, CYLINDER

6

NSS

PLATE, VALVE

7

720-68-19610

PIN

8

04065-04818

RING, SNAP

9

708-2L-23131

SEAT

10

708-2L-33160

SPRING

11

708-7L-13140

SEAT

12

708-2L-23351

GUIDE, RETAINER

13

708-2L-23360

PIN

14

708-2L-33340

RETAINER, SHOE

15

708-2L-33310

PISTON SUB-ASSEMBLY

|$20

708-2L-04371

CRADLE ASSEMBLY, REAR

16

708-2L-23880

CRADLE

17

708-2L-33551

CAM, ROCKER
