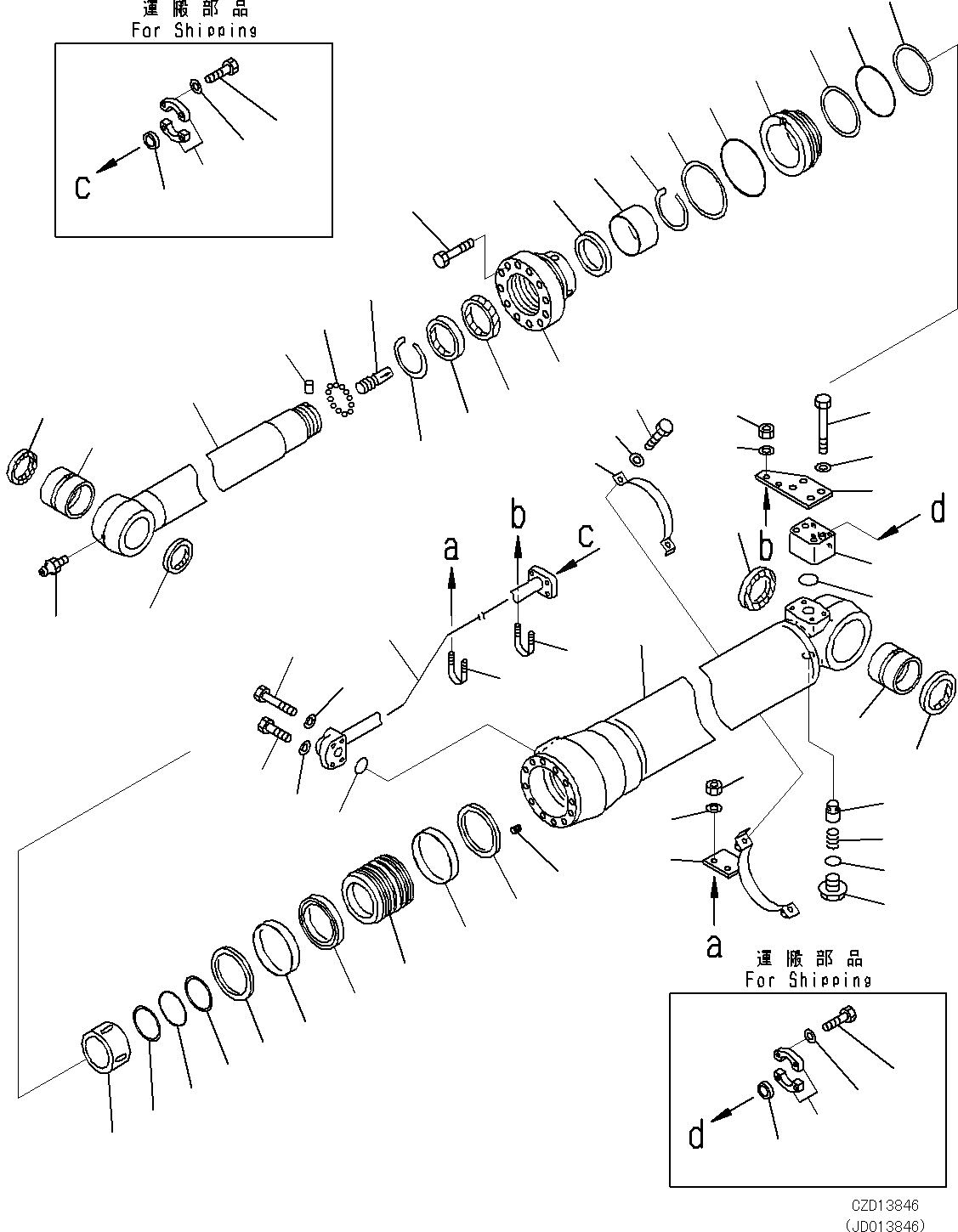

Запчасти Komatsu PC270-8 ЦИЛИНДР РУКОЯТИ( ЧАС. СМАЗКА INTERVAL) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

|$1

707-01-XP400

CYLINDER ASSEMBLY

1

707-13-15280

CYLINDER

2

707-58-11740

ROD PISTON

3

707-76-10130

BUSHING

4

07145-00100

SEAL DUST,(KIT:K04)

5

707-76-80010

BUSHING

6

07145-00080

SEAL DUST,(KIT:K04)

7

07020-00000

FITTING GREASE

8

707-71-35030

COLLAR

9

707-35-31410

RING BACK-UP,(KIT:K04)

10

07000-B5140

O-RING,(KIT:K04)

11

707-71-61140

PLUNGER

12

707-71-80280

PLUNGER

13

04260-00635

BALL, TEEL

14

707-71-91270

CAP

15

707-27-15620

HEAD

16

707-56-11740

SEAL DUST,(KIT:K04)

17

07179-13126

RING SNAP

18

707-51-11860

PACKING ROD,(KIT:K04)

19

707-51-11650

RING BUFFER,(KIT:K04)

20

707-35-31410

RING BACK-UP,(KIT:K04)

21

07000-B5140

O-RING,(KIT:K04)

22

707-52-90851

BUSHING

23

707-75-11040

RING SNAP

24

707-88-81530

BOLT

26

707-36-15260

PISTON

27

707-44-15150

RING PISTON,(KIT:K04)

28

707-39-15110

RING REAR,(KIT:K04)

29

707-44-15911

RING

30

07001-31000

RING BACK-UP,(KIT:K04)

31

07000-B5100

O-RING,(KIT:K04)

32

01310-01216

SCREW

33

707-83-13010

VALVE

34

07750-01628

SPRING

35

707-87-14070

PLUG

36

07002-62034

O-RING,(KIT:K04)

37

707-86-67920

TUBE

38

20D-62-17860

ELBOW

39

07372-21060

BOLT

40

01643-51032

WASHER
