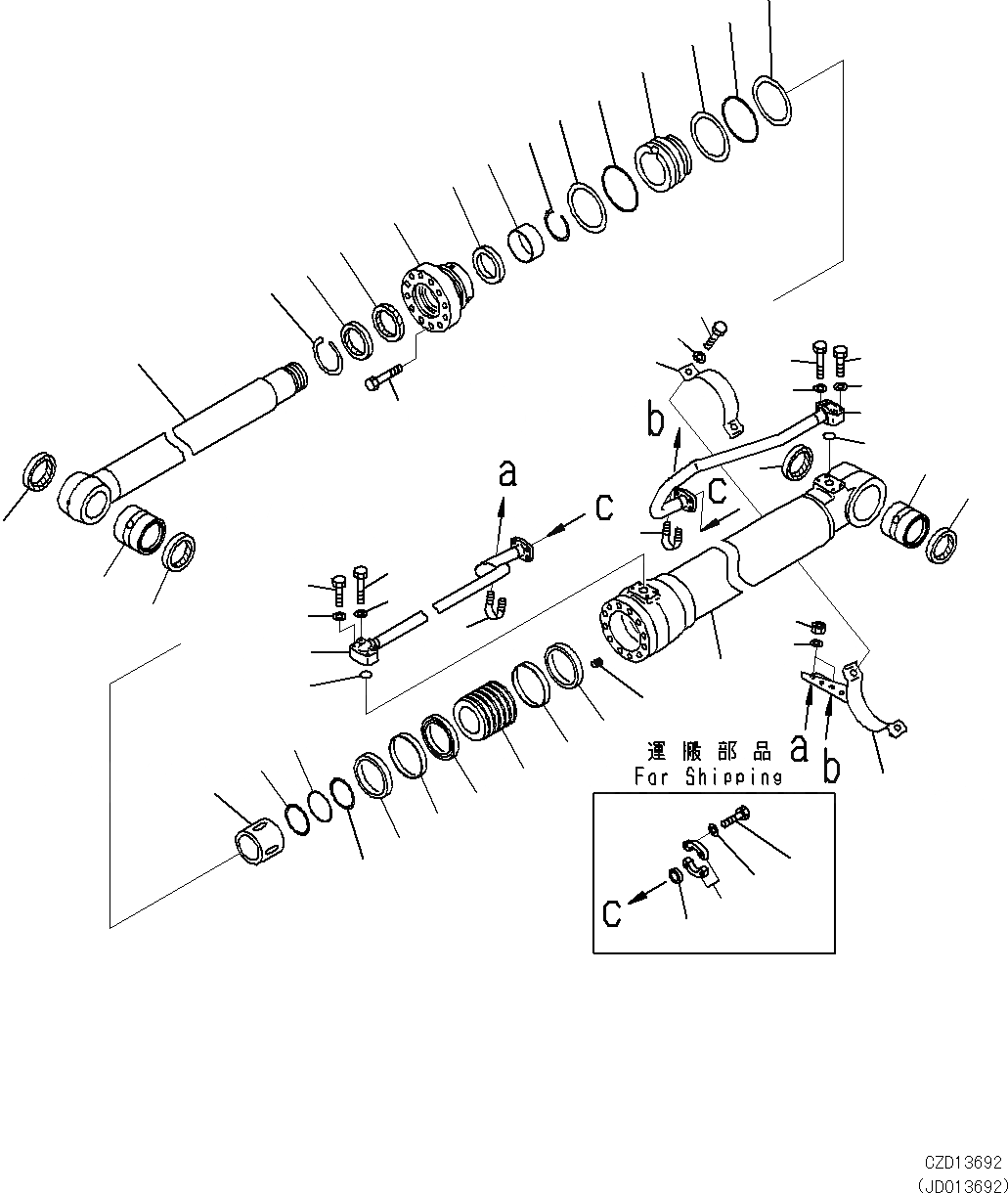

Запчасти Komatsu PC270-8 ЦИЛИНДР СТРЕЛЫ( ЧАС. СИСТ. СМАЗКИ ТИП) (ЛЕВ.) T [РАБОЧЕЕ ОБОРУДОВАНИЕ]

|$1

707-01-XS891

CYLINDER ASSEMBLY

1

707-13-14860

CYLINDER

2

707-58-10801

ROD, PISTON

3

707-76-80431

BUSHING

4

07145-00080

SEAL, DUST,(KIT:K03)

5

707-76-80431

BUSHING

6

07145-00080

SEAL, DUST,(KIT:K03)

7

707-71-35020

COLLAR

8

707-35-31310

RING, BACK-UP,(KIT:K03)

9

07000-B5130

O-RING,(KIT:K03)

10

707-71-71020

PLUNGER

11

707-27-14690

HEAD, CYLINDER

12

707-56-10740

SEAL, DUST,(KIT:K03)

13

07179-13114

RING, SNAP

14

707-52-90781

BUSHING

15

707-51-10860

PACKING, ROD,(KIT:K03)

16

707-51-10650

RING, MUFFER,(KIT:K03)

17

707-35-31310

RING, BACK-UP,(KIT:K03)

18

07000-B5130

O-RING,(KIT:K03)

19

707-88-81080

BOLT

21

707-75-10160

RING, SNAP

22

707-36-14650

PISTON

23

707-44-14150

RING, PISTON,(KIT:K03)

24

707-39-14110

RING, REAR,(KIT:K03)

25

707-35-30900

RING, BACK-UP,(KIT:K03)

26

07000-B5090

O-RING,(KIT:K03)

27

707-44-14910

RING

28

01310-01216

SCREW

29

707-86-66100

TUBE, L.H.

30

206-63-54580

TUBE, L.H.

31

707-88-28220

BRACKET, L.H.

32

707-88-21321

BAND

33

07283-32738

CLIP, PIPE

34

01597-01009

NUT

35

01643-31032

WASHER

36

707-88-33030

CAP

37

07371-30640

FLANGE, SPLIT

38

07372-21035

BOLT

39

01643-51032

WASHER

40

07372-21060

BOLT
