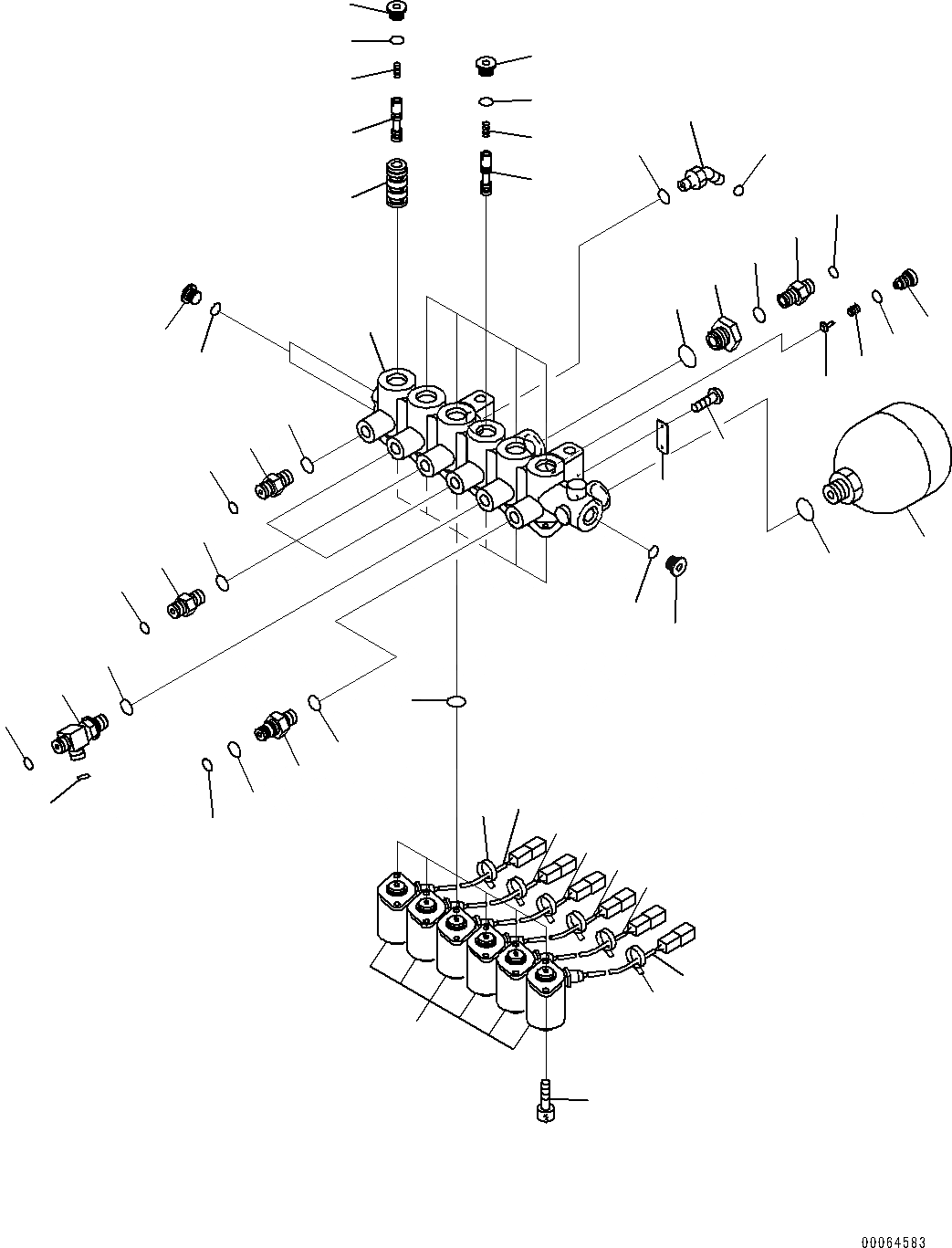

Запчасти Komatsu PC270-8 СОЛЕНОИДНЫЙ КЛАПАН ТРУБЫ (-АКТУАТОР) (СОЛЕНОИДНЫЙ КЛАПАН) H [ГИДРАВЛИКА]

|$1

20Y-60-41611

SOLENOID ASSEMBLY

1

BLOCK

2

20Y-60-32121

SOLENOID ASSEMBLY

3

07000-12016

O-RING

4

07000-12011

O-RING

5

NY05062-1170A

PLUNGER

6

NY05062-11800

SPRING

7

NY06277-1320A

PLUG

8

NY06339-10200

SPRING

9

NY07207-11700

TUBE

10

NY07493-10200

SPOOL

11

NY07529-10200

TUBE

12

NY07529-10300

TUBE

13

NY07529-10400

TUBE

14

NY07529-10500

TUBE

15

NY07529-10600

TUBE

16

NY09000-11400

PLATE

17

NY16207-10200

SLEEVE

18

NY16207-10300

SPOOL

19

NY80000-02100

PLUG

20

NY80000-02200

PLUG

21

NY81416-05012

BOLT, HEXAGON SOCKET HEAD

22

NY84110-00248

SCREW

23

07000-11008

O-RING

24

07000-11010

O-RING

25

NY89103-00090

BAND

26

11Y-62-12520

NIPPLE

27

201-60-11390

O-RING

28

20Y-62-19560

O-RING

29

20Y-62-41960

TEE

30

11Y-62-12130

NIPPLE

31

22B-26-11320

UNION

32

02896-11008

O-RING

33

07002-11423

O-RING

34

02783-10315

ELBOW

35

02896-11009

O-RING

36

07002-12034

O-RING

37

20Y-62-21940

JOINT

38

07002-12034

O-RING

39

11Y-62-12130

NIPPLE
