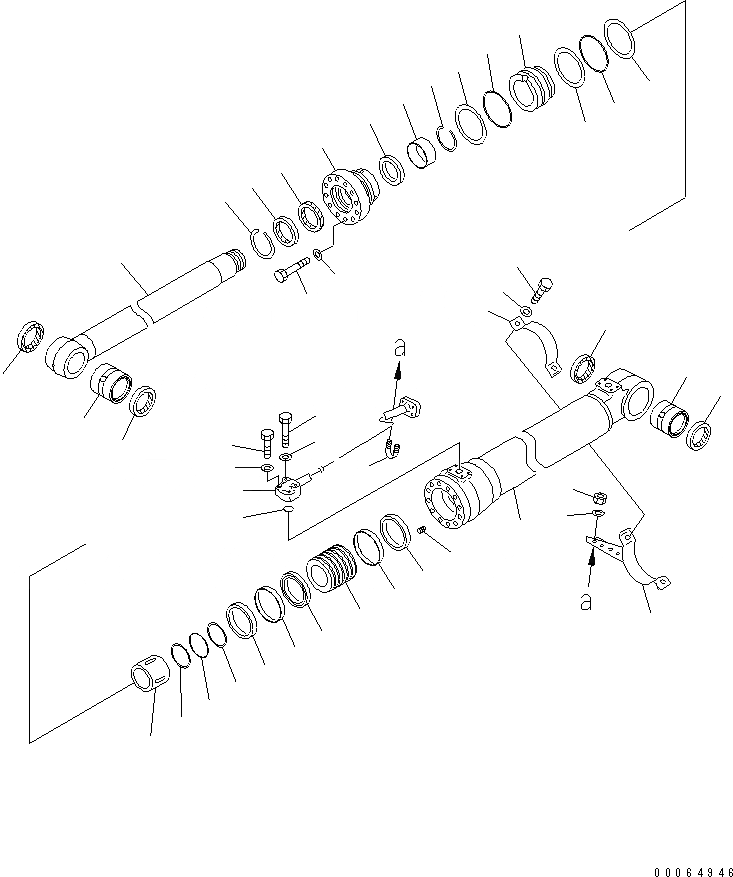

Запчасти Komatsu PC270-8 ЦИЛИНДР СТРЕЛЫ(ЛЕВ.) (ДЛЯ КЛАПАНА ПЕРЕГРУЗКИ) ( ЧАС. СИСТ. СМАЗКИ)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

G-1

707-01-XN941

CYLINDER GROUP,L.H. (FINAL COATING)

|$3

707-01-0L941

CYLINDER ASS'Y

1

707-13-14860

CYLINDER

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

707-58-10801

ROD,PISTON

5

707-76-80010

BUSHING

6

07145-00080

SEAL,DUST (KIT)

7

707-27-14690

HEAD,CYLINDER

8

07179-13114

RING,SNAP

9

176-63-56170

SEAL,DUST (KIT)

10

707-52-90780

BUSHING

11

707-51-10030

PACKING,ROD (KIT)

12

07000-15130

O-RING (KIT)

13

707-35-91420

RING,BACK-UP (KIT)

14

707-51-10650

RING,BUFFER (KIT)

15

01010-81875

BOLT

16

707-41-11840

WASHER

17

707-36-14650

PISTON

18

707-44-14150

RING,PISTON (KIT)

19

707-39-14110

RING,WEAR (KIT)

20

707-44-14910

RING

21

707-71-71020

PLUNGER

22

07000-15090

O-RING (KIT)

23

07001-05090

RING,BACK-UP (KIT)

24

01310-01216

SCREW

25

707-71-35020

COLLAR

26

707-35-91420

RING,BACK-UP (KIT)

27

07000-15130

O-RING (KIT)

28

707-75-10160

RING

29

707-86-66100

TUBE,L.H.

30

07372-21060

BOLT

31

01643-51032

WASHER

32

07372-21045

BOLT

33

01643-51032

WASHER

34

07000-13030

O-RING (KIT)

35

707-88-28220

BRACKET,L.H.

36

707-88-21321

BAND

37

07372-21035

BOLT

38

01643-51032

WASHER

39

07283-32738

CLIP

40

01597-01009

NUT

41

01643-31032

WASHER

|$46

707-99-59320

SERVICE KIT
