Запчасти Komatsu PC25R-8 МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

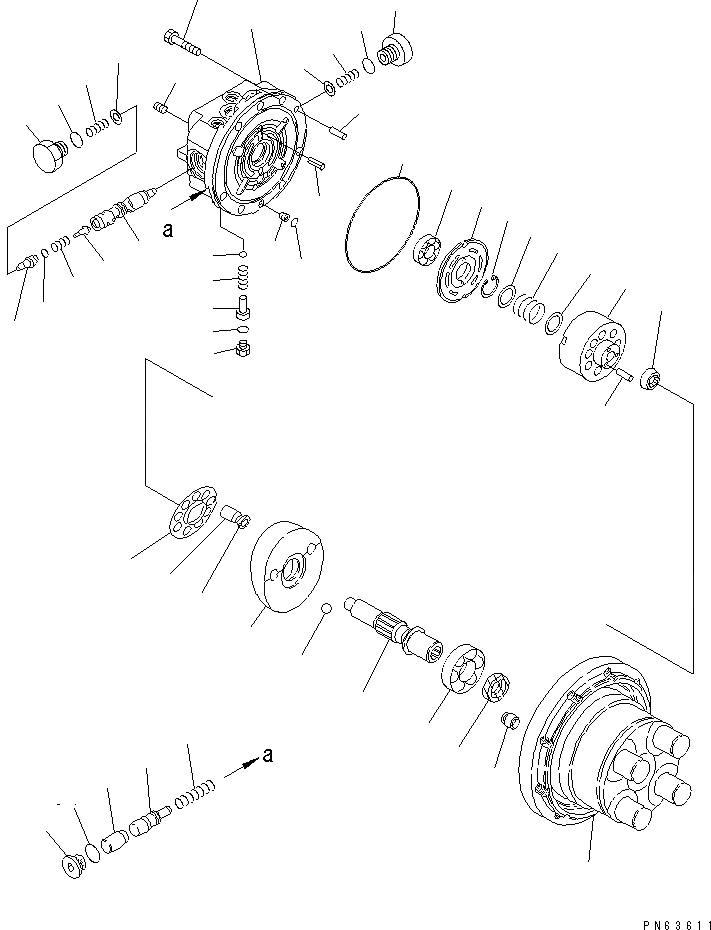

Схема запчастей Komatsu PC25R-8 - МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
25
26
27
28
28
29
30
31
31
32
33
33
34
35
36
37
38
39
40
41
42
43
44
45

Артикул

Название

Примечание

Количество

|1

20P-60-51100

MOTOR ASS'Y,TRAVEL

|1

20P-60-51500

MOTOR ASS'Y

1

20P-60-81140

BODY SUB ASS'Y

2

PISTON

3

SEAL,OIL (KIT)

4

20P-60-81610

SHAFT

5

20P-60-81680

BEARING

6

20P-60-51620

PLATE,SWASH

7

20P-60-73360

BALL,STEEL

|8

20P-60-73800

CYLINDER BARREL A.

8

CYLINDER

9

PLATE,VALVE

10

PISTON

11

SHOE

12

HOLDER,SHOE

13

HOLDER,BARREL

14

PIN

15

SPRING

16

RETAINER

17

04065-02812

RING,SNAP

|18

20P-60-81130

BODY SUB ASS'Y

18

BODY

|18

PLUG

19

SPOOL

20

CHECK VALVE

21

GUIDE,SPRING

22

SPOOL

23

20P-60-81670

GUIDE,SPRING

24

SPRING

25

20P-60-81630

SPRING

26

20P-60-81640

SPRING

27

20P-60-81650

SPRING

28

20P-60-73320

PLUG

29

20P-60-73330

PLUG

30

CHOKE

31

20P-60-81660

RING

32

20P-60-81690

BEARING

33

O-RING (KIT)

34

O-RING (KIT)

35

20P-60-81710

O-RING

36

20P-60-81750

BALL,STEEL

37

20P-60-81730

PIN,SPRING

38

20P-60-73340

PLUG

39

21U-60-16710

PLUG

40

20P-60-81740

SPACER

41

O-RING (KIT)

42

O-RING (KIT)

43

O-RING (KIT)

44

20P-60-81720

SCREW

45

20P-60-71330

PIN

KIT

20P-60-81160

SEAL KIT,MOTOR

Выбрано товаров: 51
