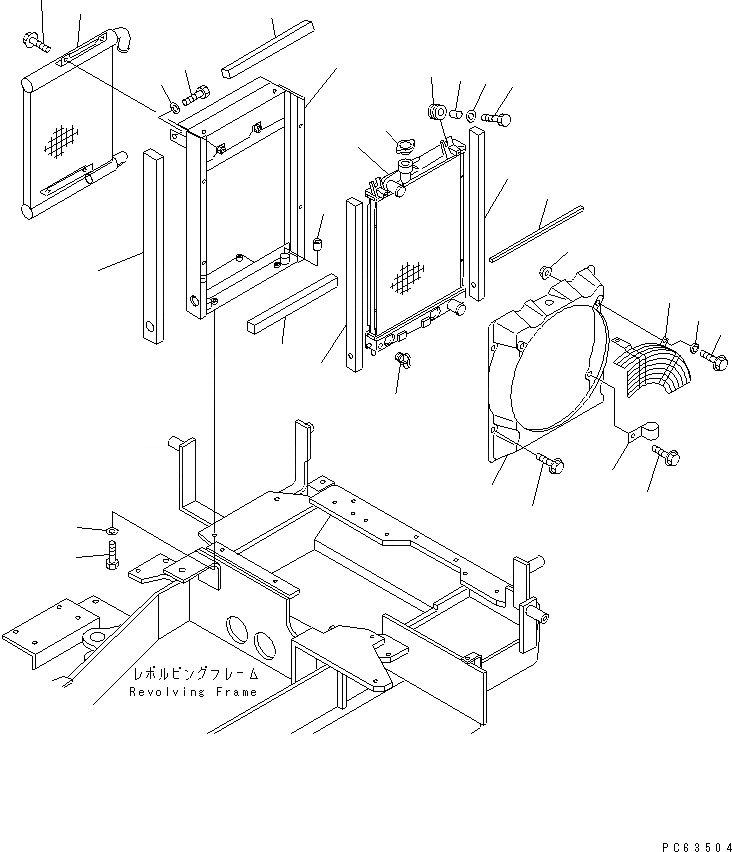

Запчасти Komatsu PC25R-8 РАДИАТОР СИСТЕМА ОХЛАЖДЕНИЯ

|1

20P-03-81102

RADIATOR ASS'Y

1

20S-03-81110

RADIATOR

2

20T-03-81130

CUSHION

3

20T-03-81140

COLLAR

4

20T-03-81150

CAP

5

20T-03-82660

VALVE,DRAIN

6

20T-03-81160

CUSHION

7

01010-80820

BOLT

8

01643-30823

WASHER

9

20S-03-71120

SHROUD

10

01435-20814

BOLT

11

08036-11210

CLIP

12

20P-03-81212

OIL COOLER ASS'Y

13

01435-20814

BOLT

14

20S-03-81170

NET,WIRE

15

01435-20814

BOLT

16

20S-03-11270

COLLAR

17

01584-00806

NUT

18

20P-03-81112

FRAME

19

20P-03-81410

SHEET

20

20P-03-81420

SHEET

21

20P-03-81430

SHEET

22

20P-03-81440

SHEET

23

01010-81030

BOLT

24

01010-81020

BOLT

25

01643-31032

WASHER

|1

20P-03-81102

RADIATOR ASS'Y

1

20S-03-81110

RADIATOR

2

20T-03-81130

CUSHION

3

20T-03-81140

COLLAR

4

20T-03-81150

CAP

5

20T-03-82660

VALVE,DRAIN

6

20T-03-81160

CUSHION

7

01010-80820

BOLT

8

01643-30823

WASHER

9

20S-03-71120

SHROUD

10

01435-20814

BOLT

11

08036-11210

CLIP

12

20P-03-81212

OIL COOLER ASS'Y

13

01435-20814

BOLT

14

20S-03-81170

NET,WIRE

15

01435-20814

BOLT

16

20S-03-11270

COLLAR

17

01584-00806

NUT

18

20P-03-81112

FRAME

19

20P-03-81410

SHEET

20

20P-03-81420

SHEET

21

20P-03-81430

SHEET

22

20P-03-81440

SHEET

23

01010-81030

BOLT

24

01010-81020

BOLT

25

01643-31032

WASHER
