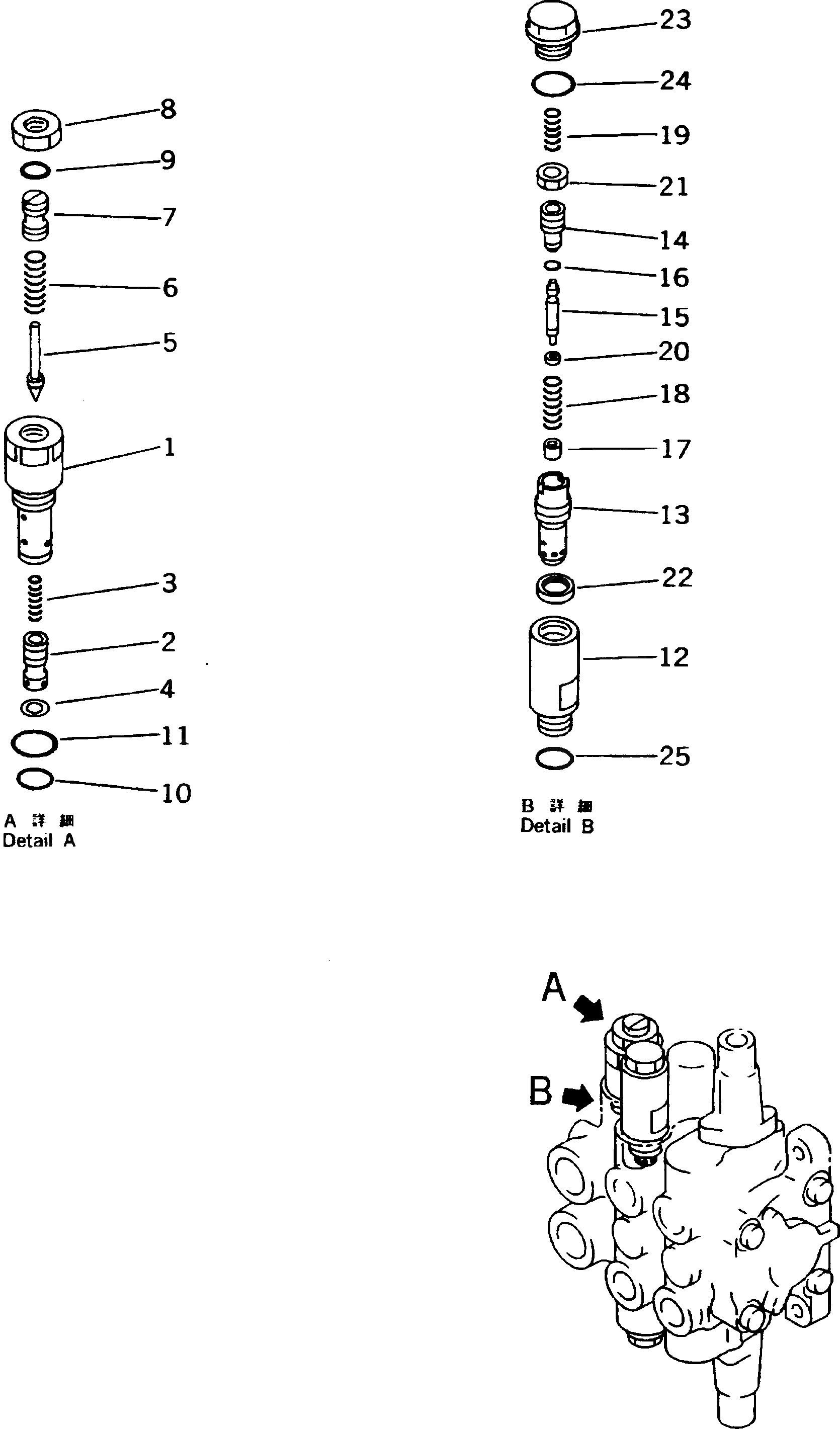

Запчасти Komatsu PC25R-1 ГИДРАВЛ КОНТРОЛЬНЫЙ КЛАПАН (2-Х СЕЦИОНН.) (/) (ДЛЯ РАДИО УПРАВЛ-Е) ГИДРАВЛИКА

|1

709-32-13801

VALVE ASS'Y

|1

700-28-56000

RELIEF VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-20-51430

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

700-20-51350

SPRING

7

700-20-51340

SCREW

8

01583-11408

NUT

9

07000-02011

O-RING

10

700-22-11410

O-RING

11

07002-02434

O-RING

|12

709-30-64101

VALVE ASS'Y,SUCTION AND SAFETY

12

709-30-62110

SLEEVE

13

VALVE

14

SCREW

15

PISTON

16

O-RING

17

POPPET

18

SPRING

19

700-20-62170

SPRING

20

SEAL

21

NUT

22

SEAL

23

709-30-62150

PLUG

24

07002-12034

O-RING

25

07002-02034

O-RING
