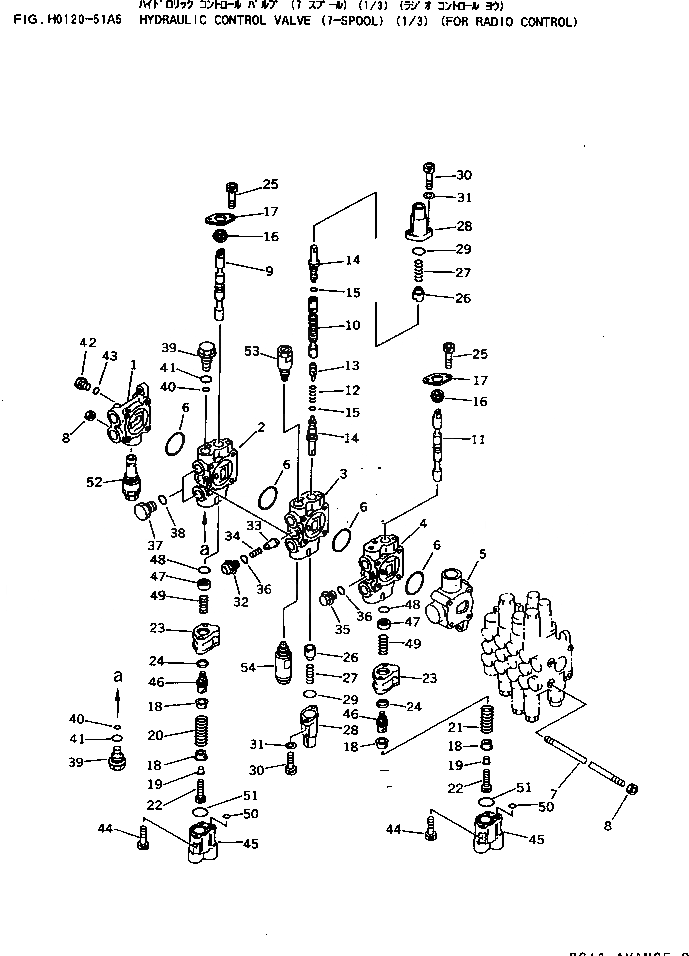

Запчасти Komatsu PC25R-1 ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН (7-СЕКЦИОНН.) (/) (ДЛЯ РАДИО УПРАВЛ-Е) ГИДРАВЛИКА

|1

709-37-12701

VALVE ASS'Y

1

BLOCK

2

BLOCK

3

BLOCK

4

BLOCK

5

BLOCK

6

07000-12055

O-RING

7

709-37-11510

STUD

8

01580-10806

NUT

9

SPOOL,SERVICE

10

SPOOL,ARM

11

SPOOL,TRAVEL¤ R.H.

12

SPRING

13

POPPET

14

JOINT

15

07000-11003

O-RING

16

709-32-11530

SEAL,DUST

17

709-32-11540

PLATE

18

709-32-13970

RETAINER

19

709-32-11560

COLLAR

20

709-32-11580

SPRING

21

709-32-11590

SPRING

22

01252-30630

BOLT

23

709-32-13921

CASE

24

709-32-13980

SEAL

25

01252-30610

BOLT

26

709-32-12840

RETAINER

27

709-32-13510

SPRING

28

709-32-12851

CASE

29

709-32-11760

O-RING

30

01252-30622

BOLT

31

01641-20608

WASHER

32

709-32-12861

PLUG

33

709-32-12871

VALVE

34

722-10-91130

SPRING

35

709-32-11930

PLUG

36

07002-11823

O-RING

37

07040-11812

PLUG

38

07002-11823

O-RING

39

709-32-11830

PLUG

40

709-32-11840

O-RING

41

07002-02034

O-RING

42

07040-11007

PLUG

43

07002-11023

O-RING

44

01252-30650

BOLT

45

709-32-13911

CASE

46

709-32-13931

PLUG

47

709-32-13940

SPACER

48

709-32-13950

O-RING

49

709-32-13960

SPRING

50

07000-01008

O-RING

51

700-80-61260

O-RING

52

700-28-62001

VALVE ASS'Y,MAIN RELIEF

53

709-30-66700

SAFETY VALVE ASS'Y,SAFETY

54

709-30-63602

VALVE ASS'Y,SUCTION AND SAFETY
