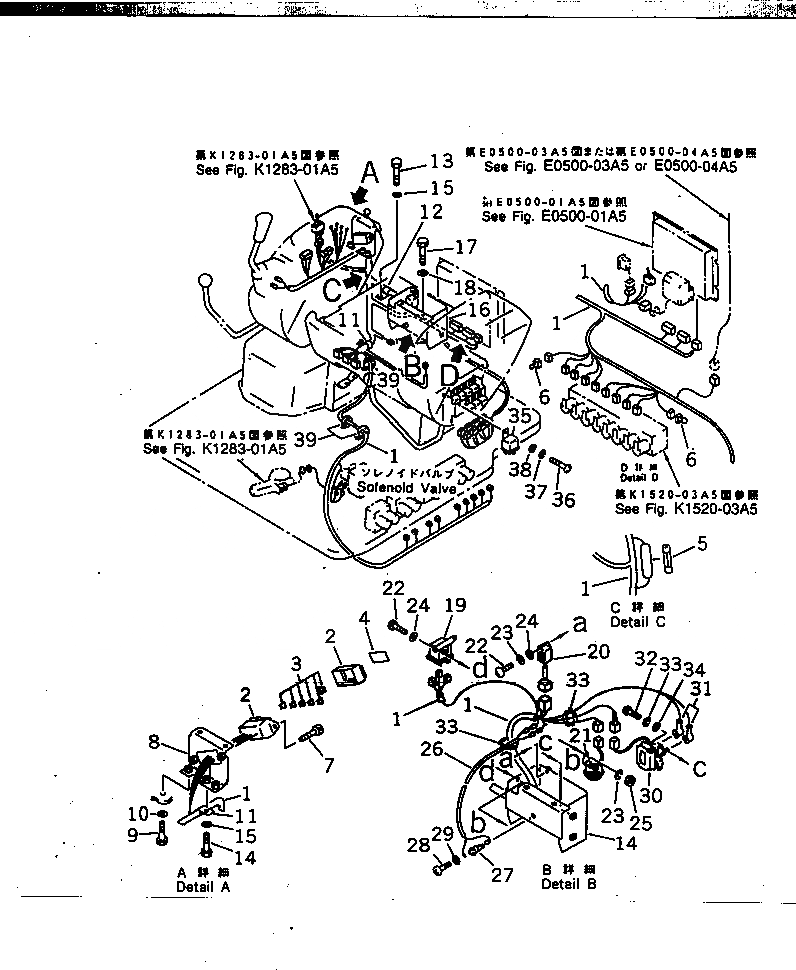

Запчасти Komatsu PC25R-1 ЭЛЕКТРИКА (ЛИНИЯ ПАНЕЛИ ПРИБОРОВ) (ДЛЯ РАДИО УПРАВЛ-Е)(№7-) ЭЛЕКТРИКА

1

20T-06-77913

WIRING HARNESS

|1

08020-00000

DIODE

2

20T-06-71560

FUSE BOX

3

22W-06-13160

FUSE¤ 20A

|3

201-06-61240

FUSE¤ 30A

4

20T-06-78191

PLATE¤ NAME,FUSE

5

08040-03000

FUSE¤ 30A

6

20T-06-78240

RESISTOR

7

20T-54-71550

BOLT

8

21W-06-21151

BRACKET

9

01010-50816

BOLT

10

01643-30823

WASHER

11

08035-02510

CLIP

12

424-09-12550

CLIP

13

01010-51020

BOLT

14

01010-51025

BOLT

15

01643-31032

WASHER

16

20T-06-71333

BRACKET

|16

20T-06-71332

BRACKET

17

01010-51020

BOLT

18

01643-31032

WASHER

19

20T-06-71750

RELAY ASS'Y,ENGINE STOP MOTOR

20

20T-06-71760

TIMER,ENGINE STOP

21

20T-06-71320

BUZZER

22

01220-40616

SCREW

23

01602-20619

WASHER,SPRING

24

01643-30623

WASHER

25

01580-10605

NUT

26

20T-06-71780

WIRING HARNESS

|26

20T-06-71531

HARNESS

27

20T-06-71770

SWITCH,P.P.C. LOCK

|27

20T-06-71520

SWITCH,P.P.C. LOCK

28

6134-71-5750

SCREW

29

01641-20508

WASHER

30

20T-06-71650

RELAY,SAFETY

31

08038-00519

CAP

32

01220-40616

SCREW

33

01602-20619

WASHER,SPRING

34

01641-20608

WASHER

35

21X-06-12310

RELAY ASS'Y

36

01220-40616

SCREW

37

01602-20619

WASHER,SPRING

38

01643-30623

WASHER

39

08034-00823

BAND
