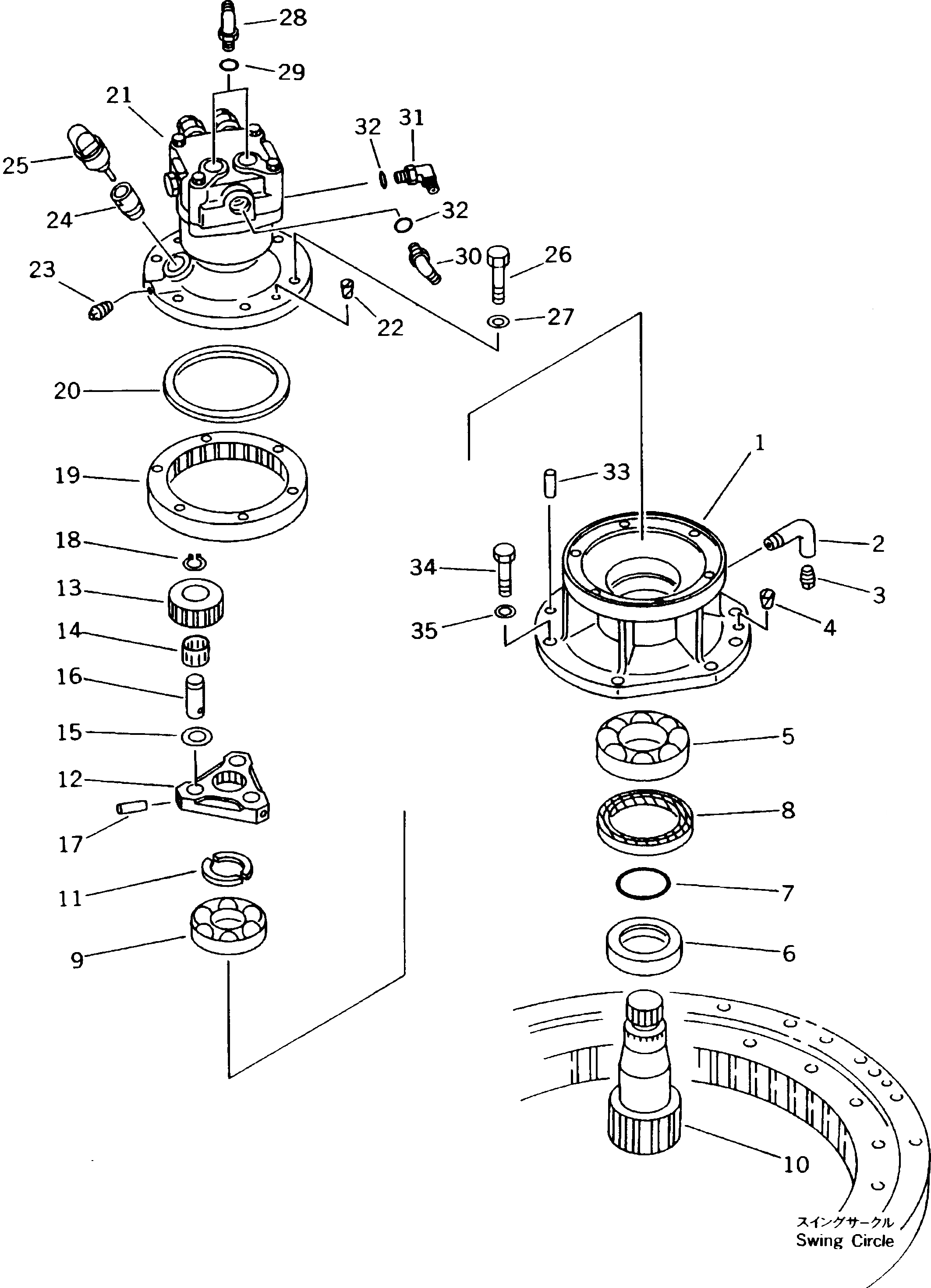

Запчасти Komatsu PC25R-1 МЕХАНИЗМ ПОВОРОТА ПОВОРОТН. КРУГ И КОМПОНЕНТЫ

|1

20R-26-00030

SWING MACHINERY A.

1

20S-26-71421

CASE

2

20T-26-71320

PIPE

3

07042-30211

PLUG

4

07049-01215

PLUG

5

20S-26-71451

BEARING

6

20S-26-71330

COLLAR

7

07000-02055

O-RING

8

07012-00075

SEAL,OIL

9

20T-26-71221

BEARING

10

20S-26-71311

SHAFT

11

20T-26-71311

SPACER

12

20S-26-71411

CARRIER

13

20S-26-71440

GEAR

14

23S-15-49420

BEARING

15

20S-26-71160

WASHER,THRUST

16

20S-26-71211

SHAFT

17

20S-26-71250

PIN

18

20S-26-71190

RING,SNAP

19

20S-26-71430

GEAR,RING

20

20T-26-71111

SPACER

21

708-7S-00012

SWING MOTOR ASS'Y,(SEE FIG.N1220-51A0)

22

07049-01012

PLUG

23

07042-20108

PLUG

24

20T-26-71340

FILLER

25

20T-26-71330

CAP

26

01010-51050

BOLT

27

01643-31032

WASHER

28

07235-10315

ELBOW

29

07002-12034

O-RING

30

07235-10422

ELBOW

31

20T-62-71640

ELBOW

32

07002-02034

O-RING

33

04020-01434

PIN,DOWEL

34

01010-51235

BOLT

35

01643-31232

WASHER
