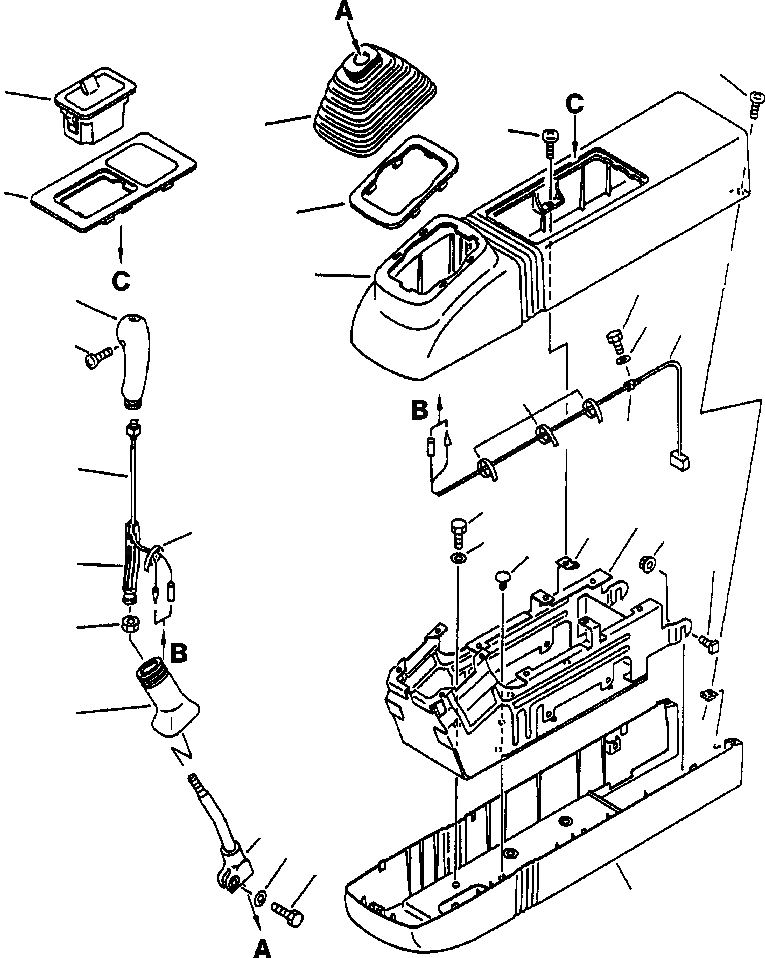

Запчасти Komatsu PC250LC-6LC FIG NO. K- ЛЕВ. СТОЙКА (РЫЧАГ И COVER) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

|$0

20Y-43-22780

LEVER ASSEMBLY, L.H., LEFT STAND

|$1

20Y-43-22231

KNOB, L.H

1

01370-10308

SCREW

2

20Y-43-22380

KNOB, L.H

3

20Y-43-22420

INSERT

4

20Y-43-22430

SWITCH, L.H

5

20Y-43-22250

PLATE

6

20Y-43-22261

BOOT

7

20Y-43-22810

LEVER, L.H

8

20Y-43-22830

BOOT

9

600-411-1280

NUT

10

08034-00310

BAND

11

20Y-43-22121

CASE

12

20Y-43-16590

SCREW

|$14

20Y-43-22850

COVER ASSEMBLY

13

20Y-43-22840

COVER, L.H

14

20Y-06-21751

ASHTRAY

15

20Y-06-21350

HARNESS, WIRING

16

424-06-12850

CLIP

17

01010-50820

BOLT

18

01643-30823

WASHER

19

08034-00519

BAND

|$22

20Y-43-21651

COVER ASSEMBLY

20

20Y-43-22111

CASE

21

20Y-43-22131

FRAME

22

20Y-43-22310

CLIP

23

20Y-43-22470

BOLT

24

20Y-43-22480

SPRING

25

198-911-5530

NUT

NI

20Y-43-28290

SHEET

NI

20Y-43-28310

SHEET

26

01010-51030

BOLT

27

01643-31032

WASHER

28

01252-41025

BOLT

29

01643-51032

WASHER
