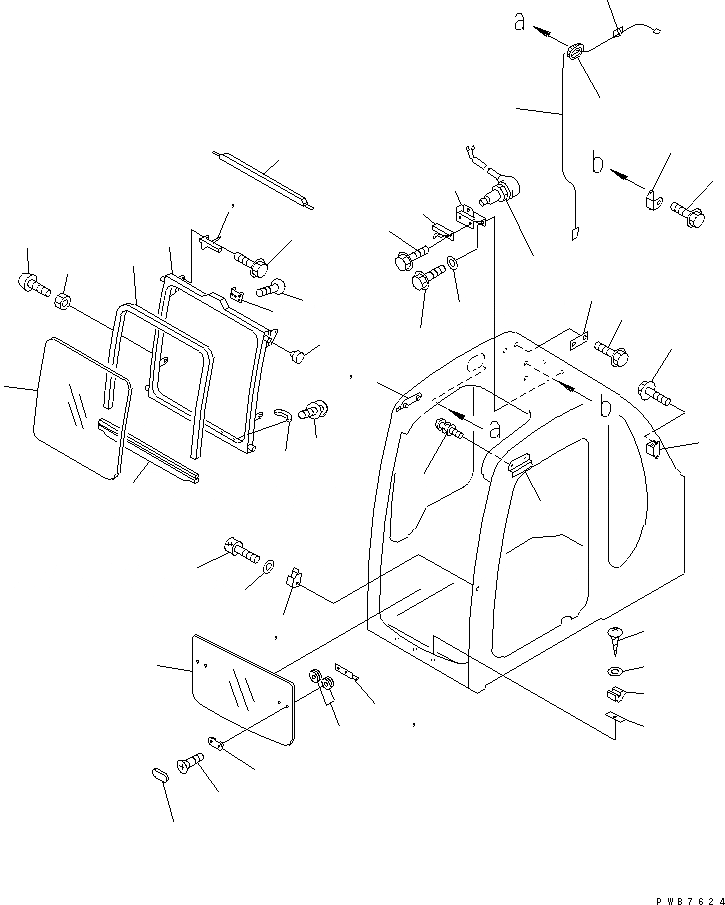

Запчасти Komatsu PC250LC-6 КАБИНА (ПЕРЕДН. ОКНА) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$0

20Y-54-00612

OPERATOR'S CAB ASS'Y

|$1

20Y-54-00611

OPERATOR'S CAB ASS'Y

|$2

20Y-54-00621

OPERATOR'S CAB ASS'Y

|$3

20Y-54-00642

OPERATOR'S CAB ASS'Y

|$4

20Y-54-00641

OPERATOR'S CAB ASS'Y

|$6

20Y-54-36705

FRONT WINDOW ASS'Y

|$7

20Y-54-36704

FRONT WINDOW ASS'Y

1

20Y-54-36713

WINDOW

2

20Y-54-38122

GLASS

3

20Y-54-38133

WEATHER STRIP

3

20Y-54-38132

WEATHER STRIP

4

20Y-54-38143

SEAL

5

20Y-54-38152

SEAL

6

20Y-54-43130

LATCH ASS'Y,LH

7

20Y-54-43140

LATCH ASS'Y,RH

8

01435-40816

BOLT

8

01435-30816

BOLT

9

20Y-54-14290

STOPPER

10

01580-11008

NUT

11

20Y-54-14590

HANDLE

12

01023-10616

SCREW

13

20Y-54-14310

STRIKER

14

20Y-54-14280

SCREW

15

20Y-54-37810

STOPPER,LH

16

01023-70416

SCREW

17

20Y-54-37820

STOPPER,RH

18

01023-70416

SCREW

19

20Y-54-36835

BLOCK,LH

20

20Y-54-36845

BLOCK,RH

21

01252-50635

BOLT

22

01641-50608

WASHER

23

20Y-54-39152

ROLLER

24

205-54-63310

LOCK ASS'Y

25

01435-40820

BOLT

25

01435-30820

BOLT

26

20Y-54-39363

BRACKET

27

01435-40820

BOLT

27

01435-30820

BOLT

28

154-61-16570

WASHER

29

08074-40000

SWITCH

30

20Y-54-39590

WIRING HARNESS

31

20Y-54-36150

GROMMET

32

08051-00801

CLIP

33

20Y-54-14721

LOCK

34

01435-40820

BOLT

34

01435-30820

BOLT

|$49

20Y-54-36103

LOWER WINDOW ASS'Y

35

20Y-54-36122

LATCH ASS'Y,R.H.

36

20Y-54-36132

LATCH ASS'Y,L.H.

37

20Y-54-36142

PLATE

38

08037-01610

GROMMET

39

01225-70612

SCREW

40

20Y-54-36211

COVER

41

20Y-54-36113

GLASS

42

20Y-54-36171

SEAT

43

20Y-54-36230

SHIM, 2.0MM

44

01370-00620

SCREW

45

01643-30623

WASHER

46

20Y-54-36182

STOPPER

47

01435-40820

BOLT

47

01435-30820

BOLT
