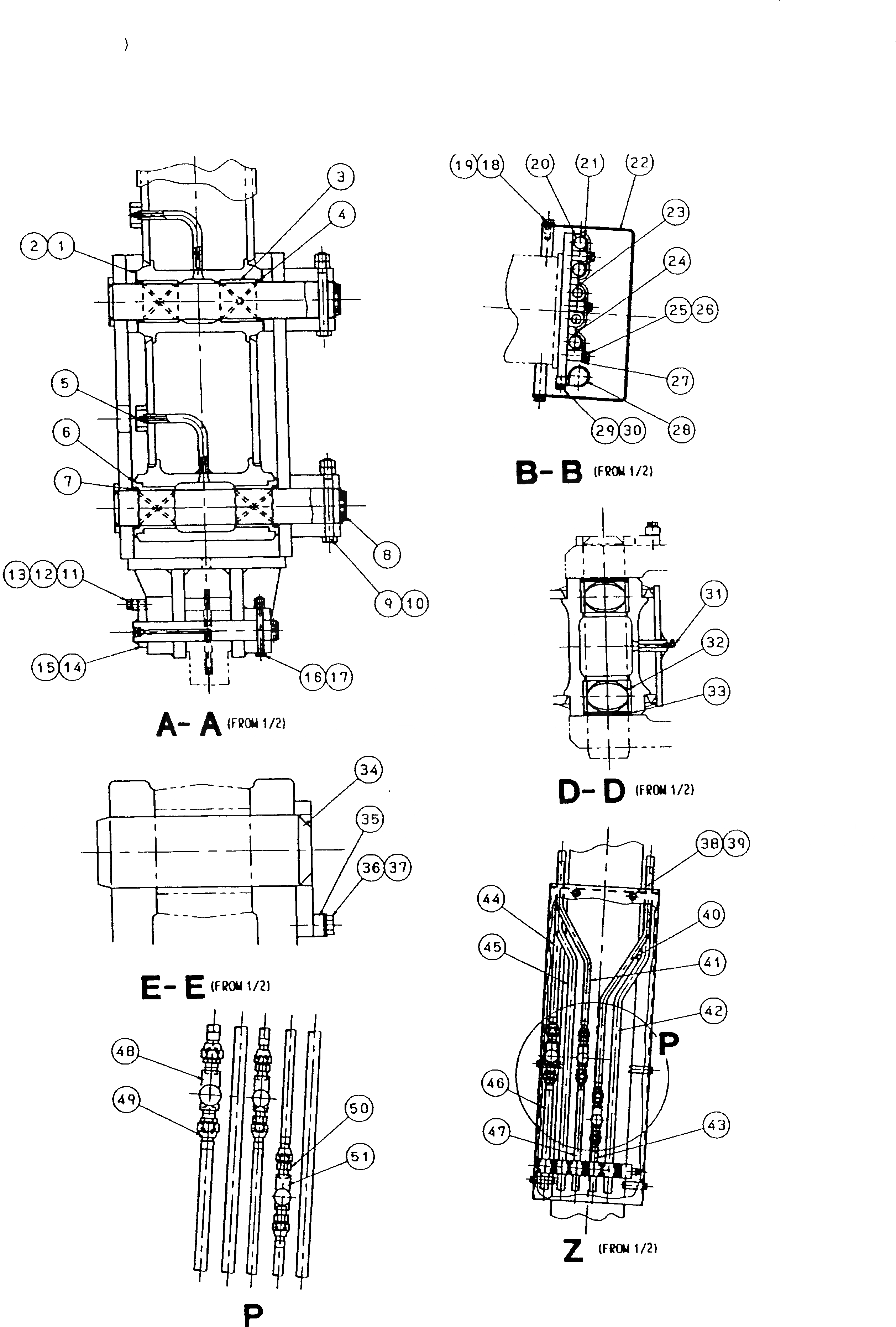

Запчасти Komatsu PC250HD-6Z РУКОЯТЬ (/) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20Y-70-11340

SPACER, 0.8MM

2

205-70-51530

SPACER, 1.5MM

3

21K-70-12161

BUSHING

4

205-70-26140

SEAL

5

07020-00000

FITTING

6

205-70-72130

BUSHING

7

205-70-62150

SEAL

8

205-70-73270

PIN

9

205-70-73190

BOLT

10

01580-12016

NUT

11

203-46-56270

PLATE

12

01010-81230

BOLT

13

01643-31232

WASHER

14

206-958-8470

PIN

15

07020-00000

FITTING

16

01011-81225

BOLT

17

01580-11210

NUT

18

01010-81225

BOLT

19

01643-31232

WASHER

20

203-62-58310

CUSHION

21

203-70-53381

PLATE

22

206-958-8220

COVER

23

203-62-58810

CUSHION

24

203-62-58310

CUSHION

25

01010-81025

BOLT

26

01643-31032

WASHER

27

203-70-53391

PLATE

28

208-06-19170

CLIP

29

01010-81016

BOLT

30

01643-31032

WASHER

31

07020-00900

FITTING

32

205-70-72180

BUSHING

33

07145-00090

SEAL

34

206-70-51170

PIN

35

205-70-66580

PLATE

36

01010-81230

BOLT

37

01643-31232

WASHER

38

01011-81255

BOLT

39

01643-31232

WASHER

40

206-958-8350

TUBE

41

206-958-8340

TUBE

42

206-958-8360

TUBE

43

206-958-8310

TUBE

44

206-958-8320

TUBE

45

206-958-8330

TUBE

46

206-958-8290

TUBE

47

206-958-8380

TUBE

48

206-958-8490

VALVE ASS'Y

49

209-62-37210

NIPPLE

50

07238-10522

CONNECTOR

51

206-958-8480

VALVE ASS'Y
