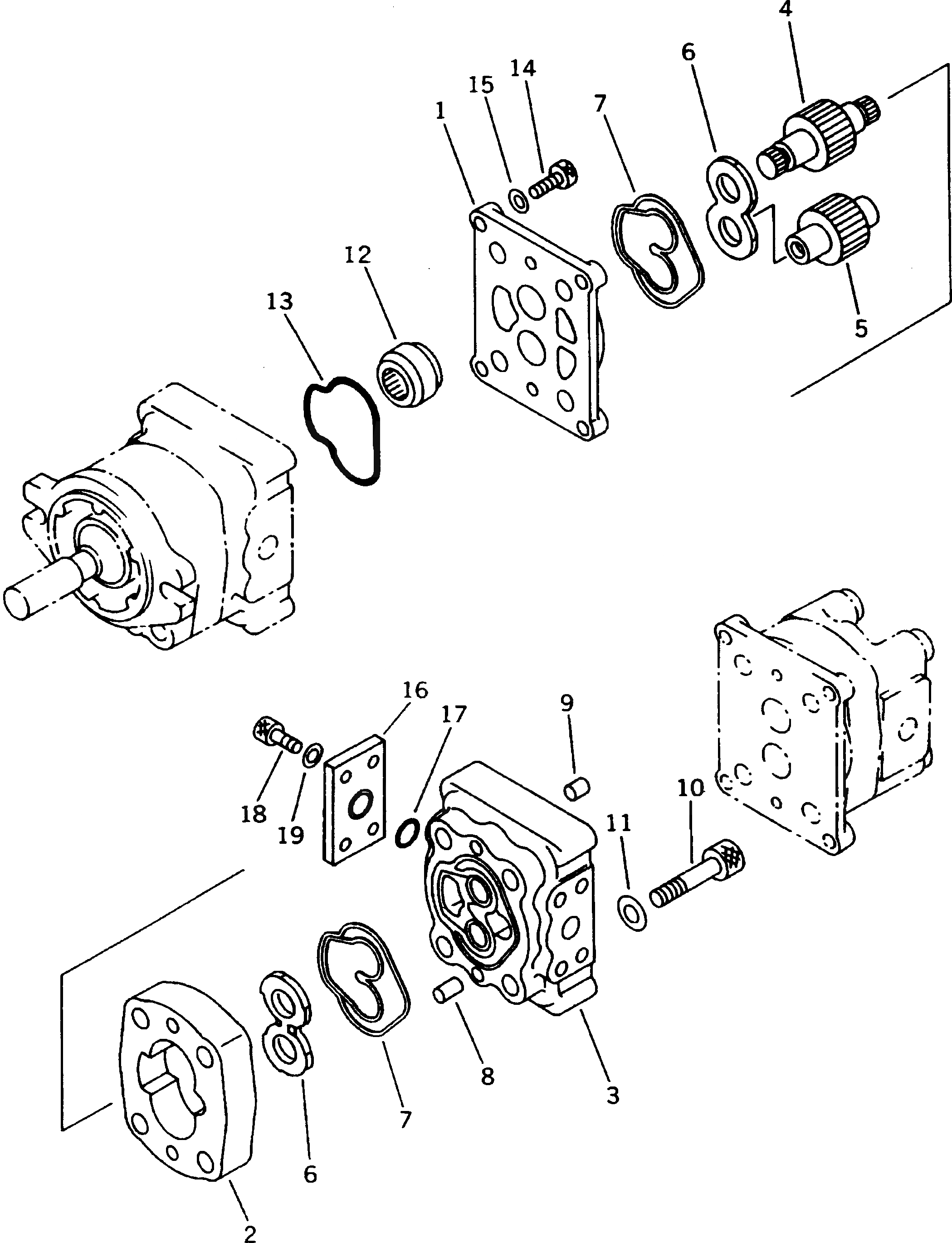

Запчасти Komatsu PC25-1 ГИДР. НАСОС. (/) ГИДРАВЛИКА

|$0

705-41-08080

PUMP ASS'Y

|$2

705-41-04040

PUMP ASS'Y (SBR11)

1

705-40-80511

BRACKET

1

705-40-80620

BUSHING,PLANE (DRIVE SIDE)

1

705-40-80610

BUSHING,PLANE (DRIVEN SIDE)

2

705-40-23011

CASE,GEAR

3

705-41-80310

CARRIER

3

705-40-80610

BUSHING,PLANE (DRIVE SIDE)

3

705-40-80620

BUSHING,PLANE (DRIVEN SIDE)

4

705-40-23462

GEAR,DRIVE

5

705-40-23511

GEAR,DRIVEN

6

705-40-80720

PLATE,SIDE

7

705-40-80760

SEAL,RING

8

04020-00820

PIN,DOWEL

9

705-67-01230

PIN,DOWEL

10

01252-31270

BOLT

11

01643-51232

WASHER

12

705-67-01330

COUPLING ASS'Y

13

705-40-80660

SEAL,RING

14

705-41-80750

BOLT

15

01643-50823

WASHER

16

705-40-80941

PLATE

17

07000-02021

O-RING

18

705-41-80750

BOLT

19

01643-50823

WASHER
